The Pi-DAC PRO, Pi-DAC+, Pi-DigiAMP+ and Pi-Codec+ re-exposes the Raspberry Pi signals
allowing additional sensors etc to be added easily. Please note that some signals are for exclusive
use (I2S and EEPROM) for some of our boards, others such as I2C can be shared across multiple
boards.

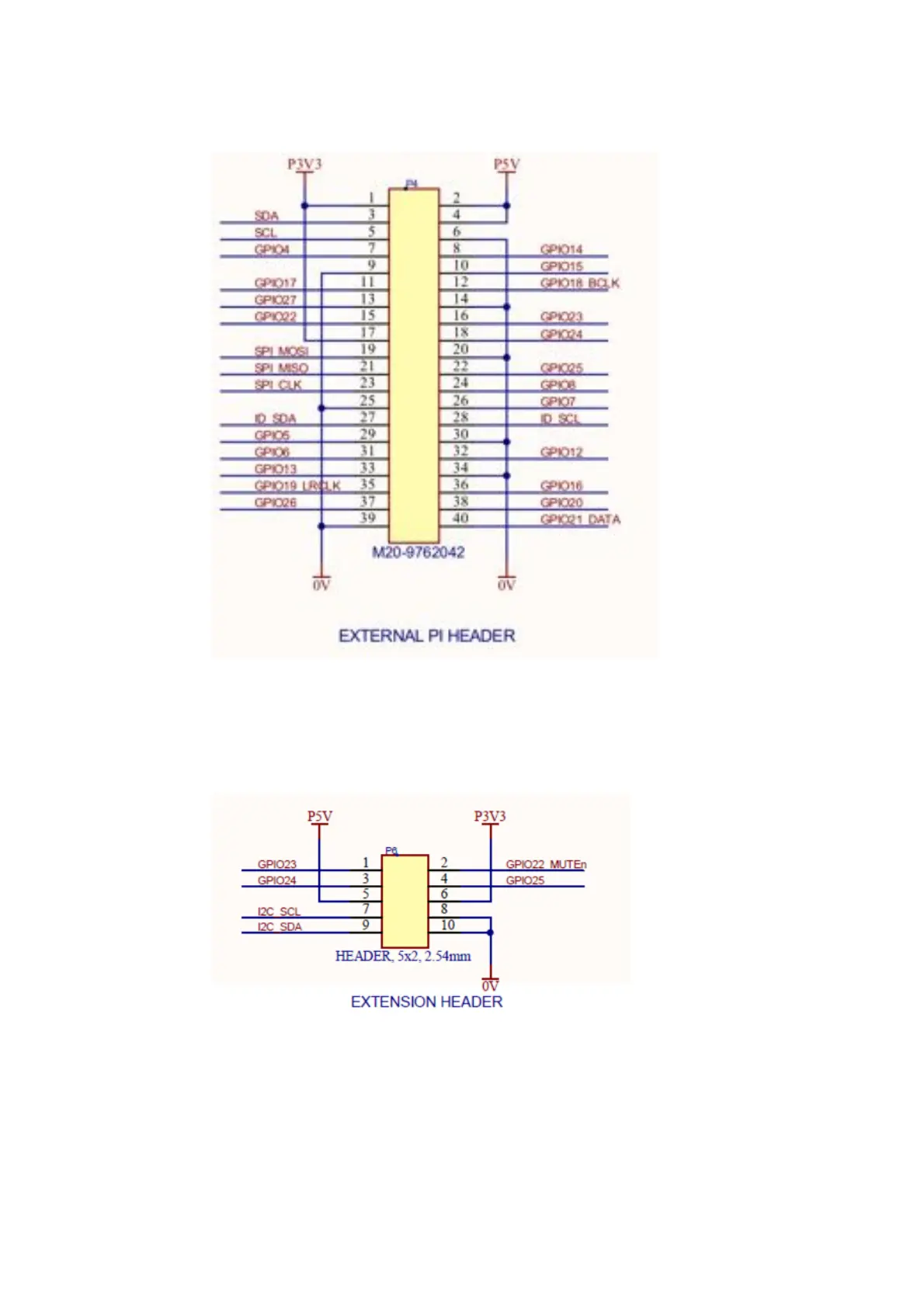

The old (Legacy) Pi-DigiAMP+ had a 2x5 pin header which exposed the following pins:
Pin1 of P6 is the closest to the main chip. Pin10 of P6 closest to the Pi’s USB ports.
!
