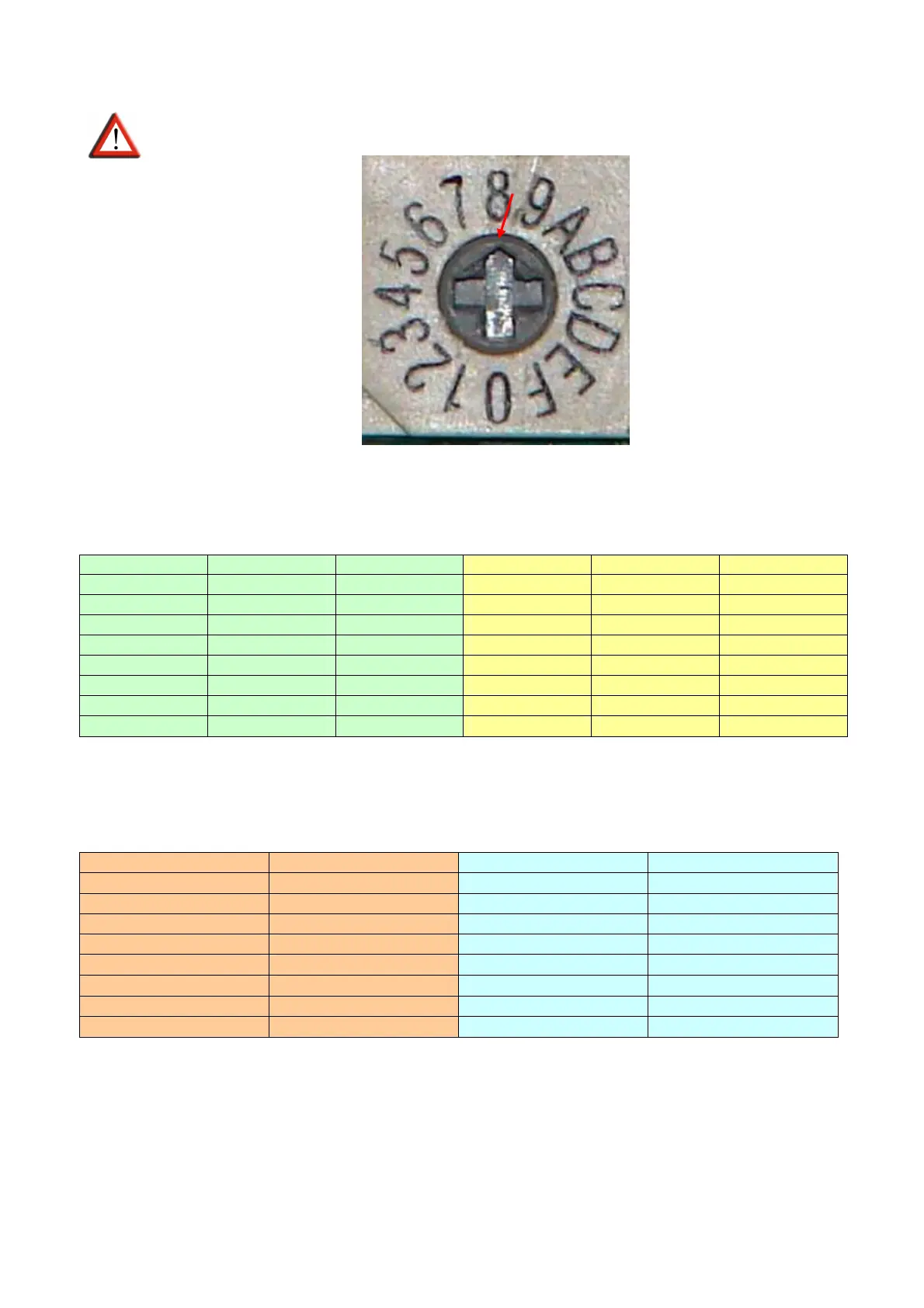

WARNING
: Take care to the arrow direction!
First of all set up the number of “pulses” for both front and rear sensors, acting on the left
selector switch according to the following table:
FRONT REAR SETTING FRONT REAR SETTING
3 3 0 4 3 8
3 5 1 4 5 9
3 4 2 4 4 A
3 6 3 4 6 B
5 3 4 6 3 C
5 5 5 6 5 D
5 4 6 6 4 E
5 6 7 6 6 F
Then measure the circumferences of front ad rear wheels, in the center of the tyre, and
make the difference between the 2 values. Set up the “Ratio” acting on the right selector
switch according to the following table:
DIFFERECE [cm] SETTING DIFFERENCE [cm] SETTING
0 - 1 0 13 8
2 - 3 1 14 9
4 - 5 2 15 A
6 - 7 3 16 - 17 B
8 - 9 4 18 - 19 C
10 5 20 - 21 D
11 6 22 - 23 E
12 7 24 - 25 F
SUGGESTION: If you like to have a bigger sensitivity of the system at the high speeds, you
can increase the “ratio” of 1 or 2 steps; if you like a lower sensitivity at the high speed,
reduce the “ratio” of 1 or 2 steps, as per following chart.
