Refer to the following proper paragraph
3.1.1. JAPANESES SPORTS BIKE (Coils on spark plugs) & TRIUMPH
Unplug coils and determine the positive wire.
If, at the order you specify the bike, the harness will be supplied with end line connectors
already plugged; directly connect to the coils and jump this section.
Look from the harness at a coil; if the +12v (common colour) wire is on the right hand side,
it is a DENSO ignition system.
Typical examples of Denso coils are: Suzuki GSXR 600, GSXR1000 e Hayabusa, Honda
CBR600RR and CBR10000RR.
In this case connect harness according to following picture:
If +12v are on the left, is is a MITSUBISHI ignition sytem (coils branded with 3 leaves ).
Typical examples of Mitsubishi coils are: Yamaha R6 and R1, Kawasaki ZX6R and ZX10R,
Triumph.

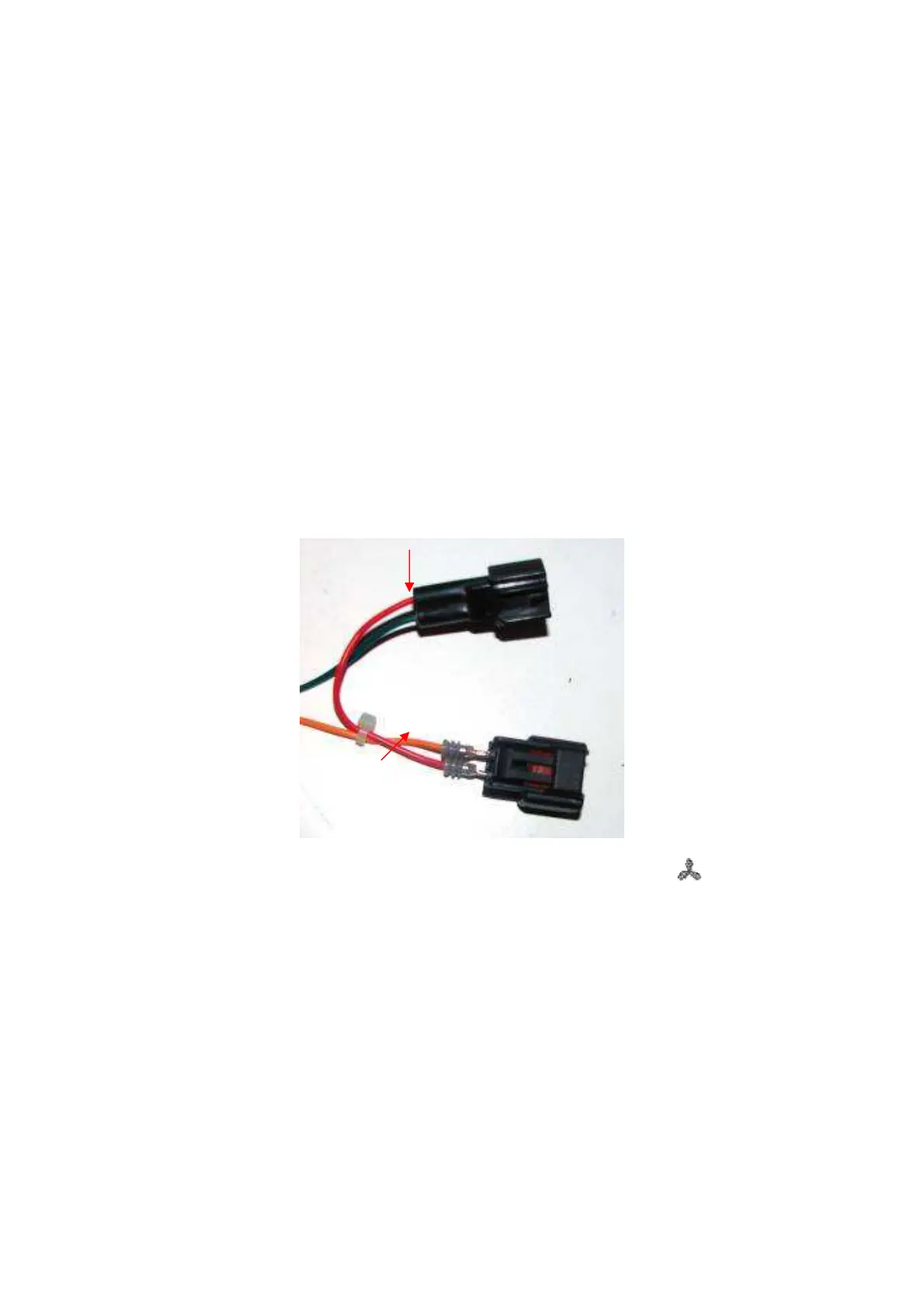

In this case connect harness according to following picture:
