Sensor Installation
38
Rev. L6 Feb 2017 Modline 5

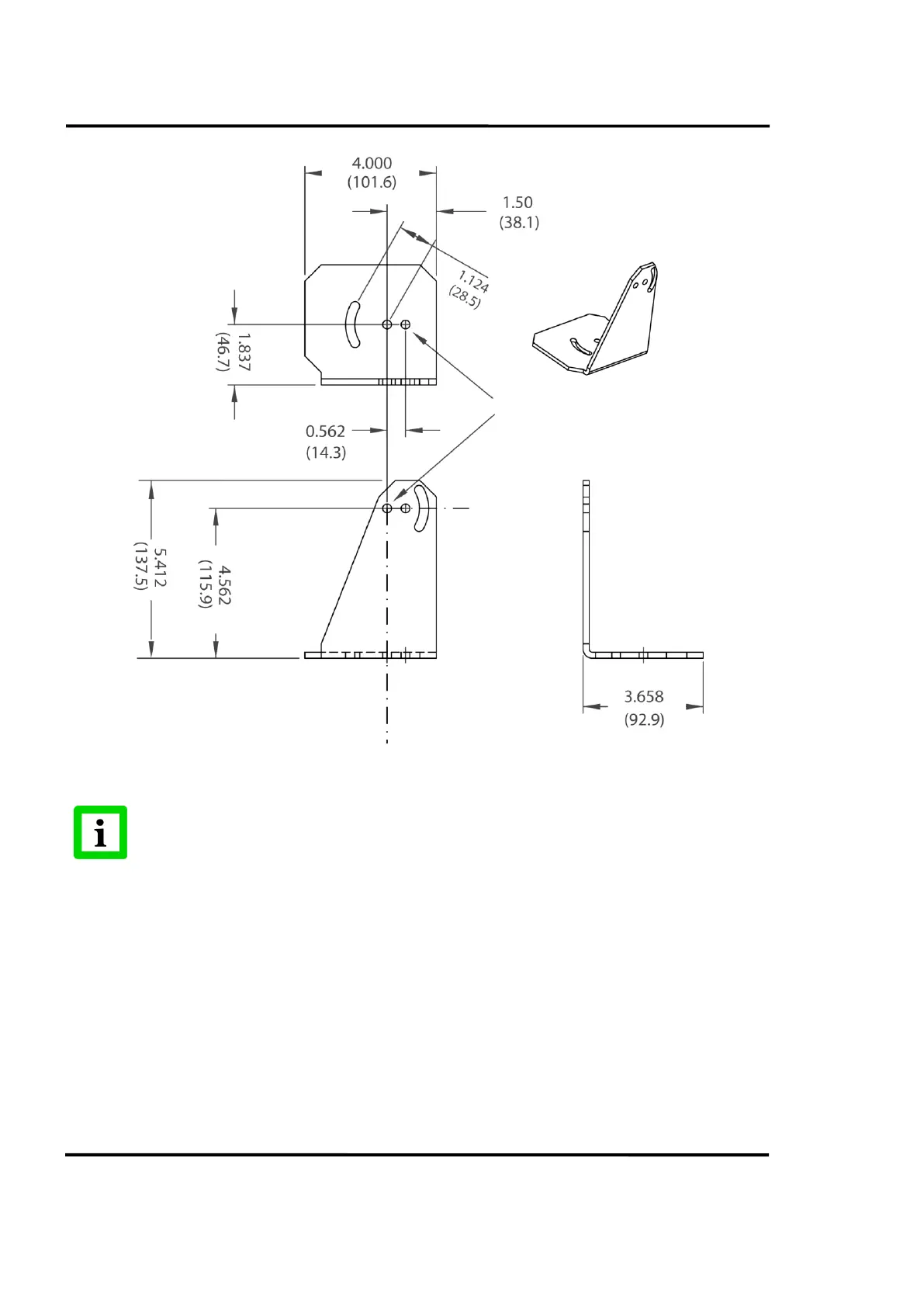

Figure 24: RAM Dimensions
Dimensions are in inches and (millimeters). Do not scale.
All three axis of rotation (including optical axis) intersect at a common point.
This avoids parallax during target alignment
Clearance Holes – 4 Places
Diameter 0.266 (6.8)
Optical Axis when
mounted horizontally
Pivot Axis
Bolt Arc Radius
