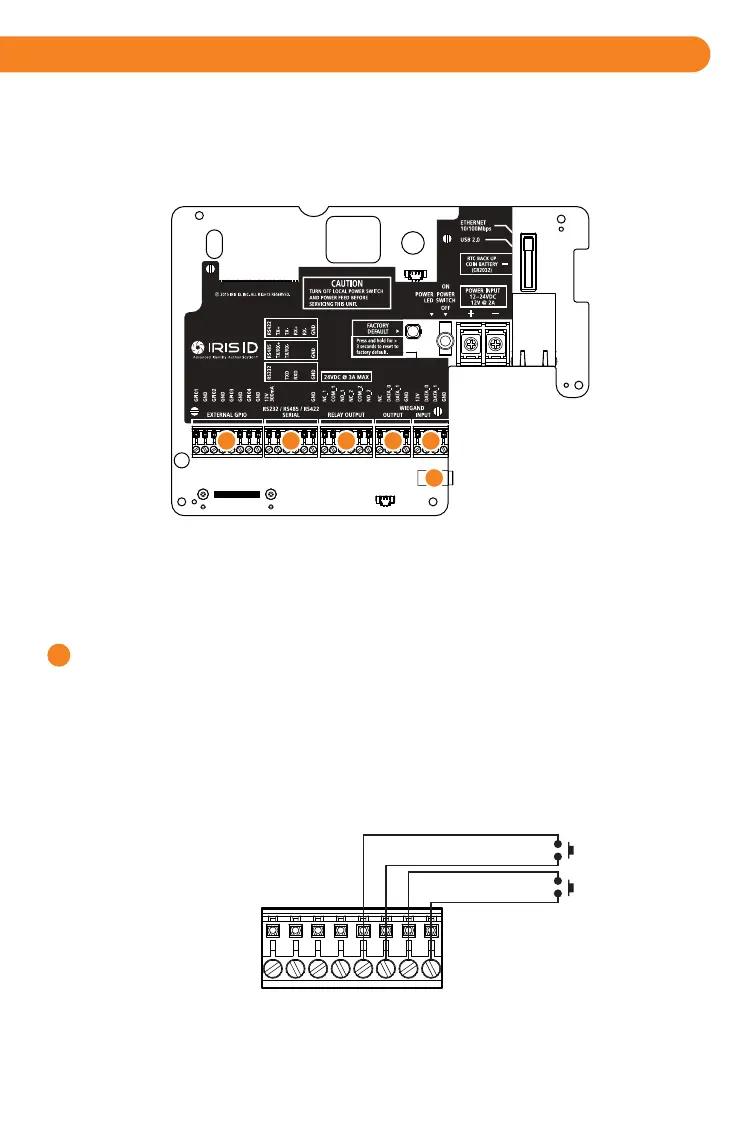

External GPIO
A
Wire Connection Details
8
A B C
D
F
E
GPIO Specifications:
• For output, the GPIO can provide 5VDC @ 20mA.
• For Input, the GPIO is selectable between active High & active Low.
• Assignment of GPIO is handled through Software
GPIO3 and 4 can be used to control the tilt position of the tilt unit of an iCAM7 series.
Use GPIO3 and GND for up tilting. Use GPIO4 and GND for down tilting.
External GPIO
External Tilt
GPIO1
GND
GPIO2
GND
GPIO3
GND
GPIO4
GND
GPIO3
GROUND
GPIO4
GROUND
Up
Down
