IrriGreen Irrigreen2 - Irrigreen Connector Orientation; Male Connector Positioning; Female Connector Positioning

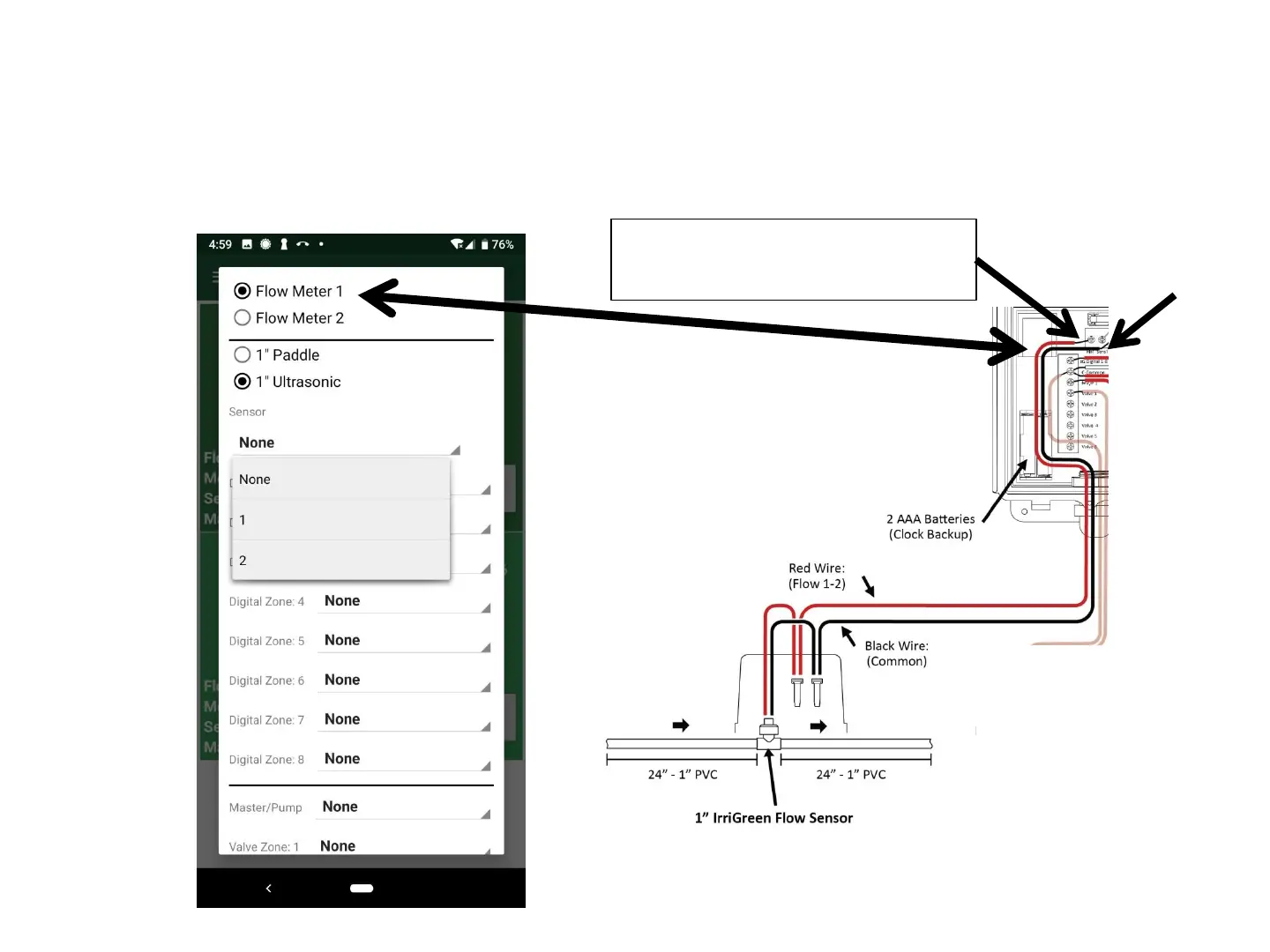

Red Flow Sensor lead to
Controller Terminal“Sen1”
12
System Settings: Step 3
Select Flow Meter 1 (Wire Red Flow Sensor lead to “Sen1”, Black
lead to “Common” Terminal
Black Flow
Sensor lead
to“Common”
