IrriGreen Irrigreen2 - Irrigreen2 Controller Terminal Layout; Sensor Terminals; Digital Sprinkler Terminals; Valve and Master Valve Terminals

Digital Zone Map & Position Table
Position 1 is the start up position, must be 10’+
Position 1 becomes the zone start up position
Position 1 may be any Rotation Position : 0-437
Position 1 must be 10+ feet so the head has
enough flow/pressure to fully “pop up” and
seat the riser seals.
After head is fully popped up, Positions may be
set as short as 5 feet.
Distances are
approximate
22

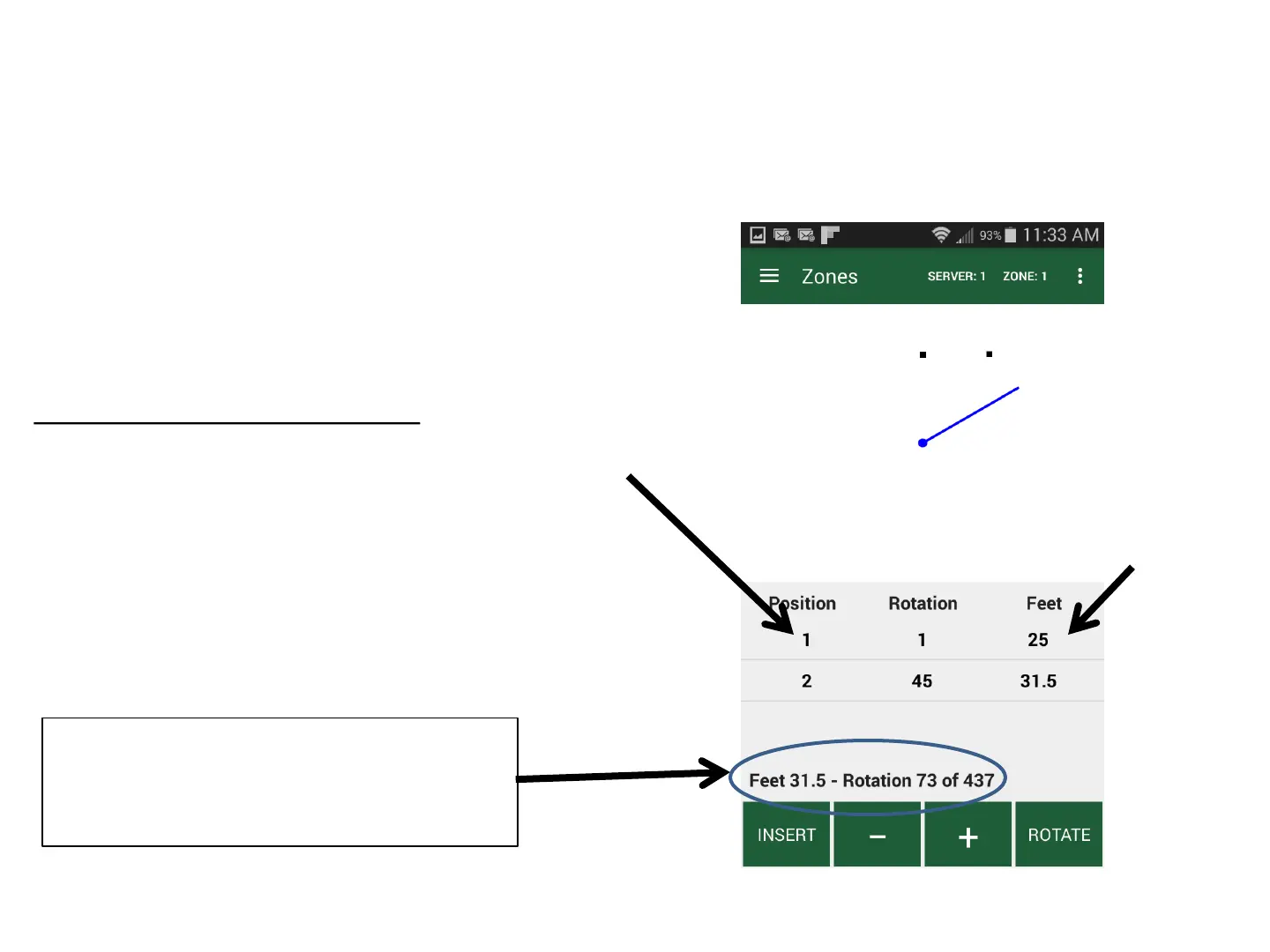

Current Distance & Rotation
values are continuously displayed
while mapping zones
