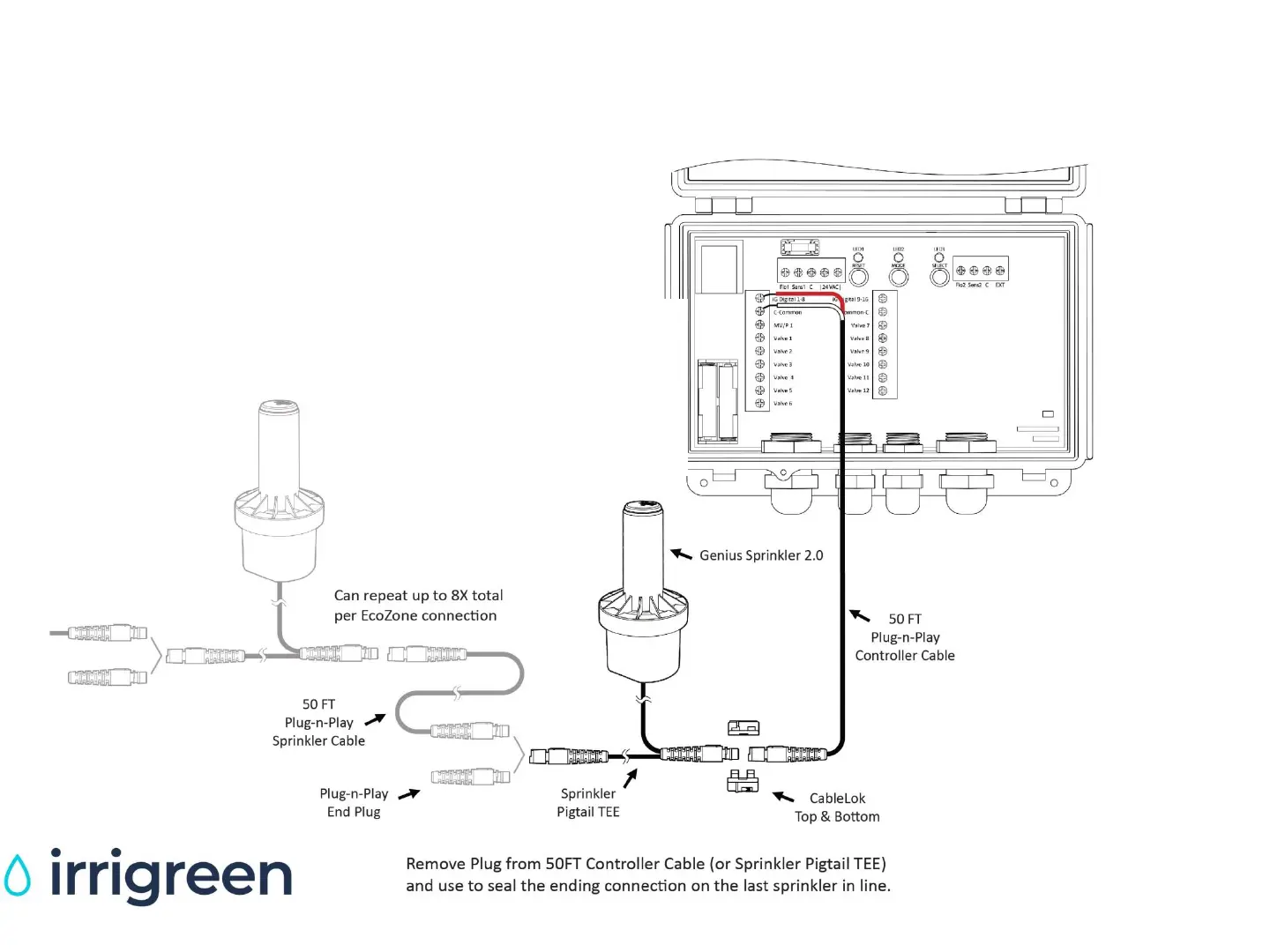

Digital Sprinklers are Connected with Cables
Daisy-chain up to eight Digital Sprinklers per run (#1-8 and #9-16)
Digital Zones 1-8
Red Controller cable lead to “IG Digital 1-8”
White Controller cable lead to “Common”
Digital Zones 1-8
Red Controller cable lead to “IG Digital 9-16”
White Controller cable lead to “Common”
