Irrigreen Connector Orientation
Similar to electrical extension cords*
12

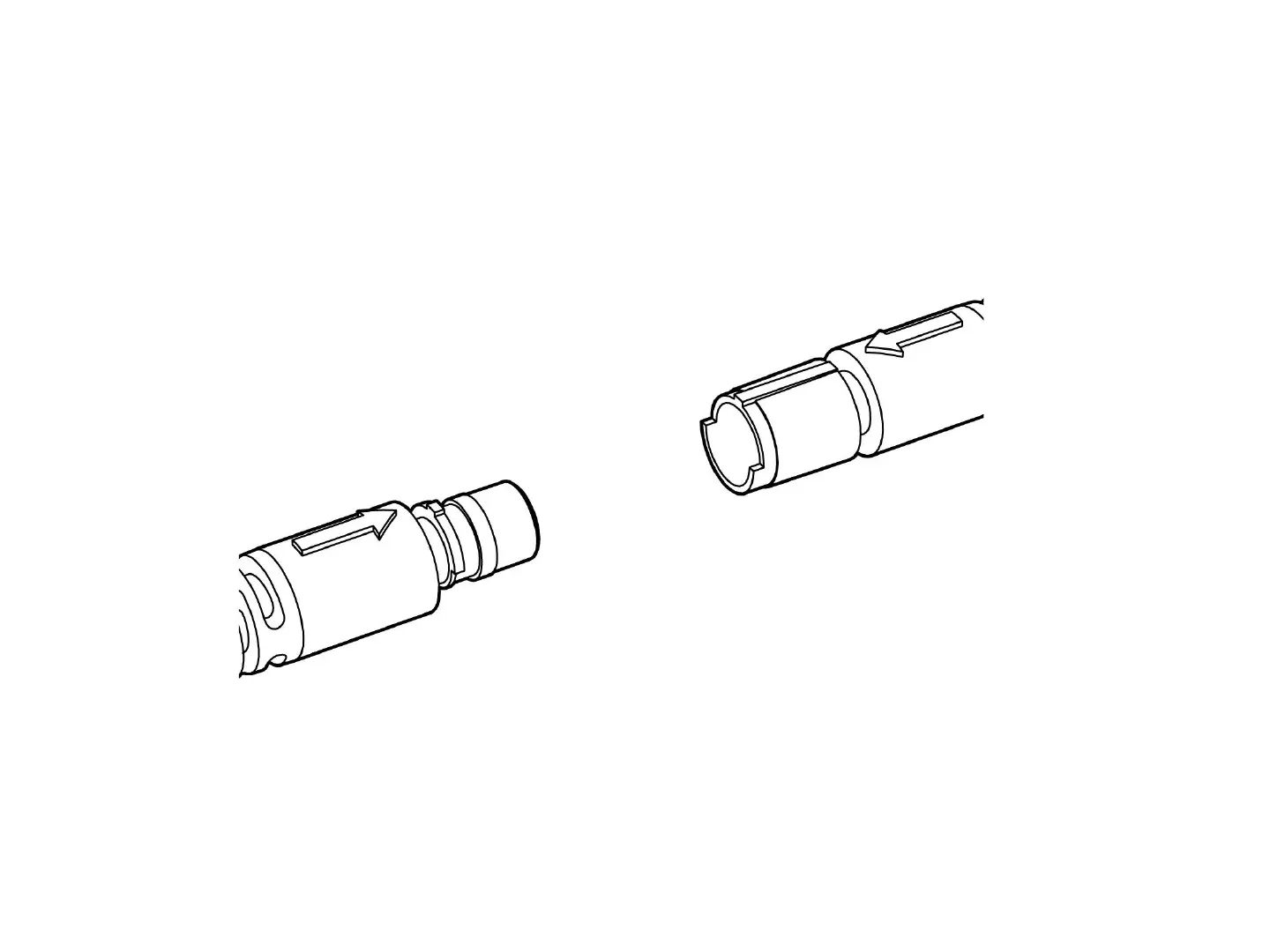

All of the smaller “male” connectors
point back to the Controller
Larger “female” connectors always
point away from the Controller
*Male points back to the outlet,
female points away from the outlet
