33
ATTACHMENT
EN
USE AND MAINTENANCE MANUAL
BERRY
428000756137

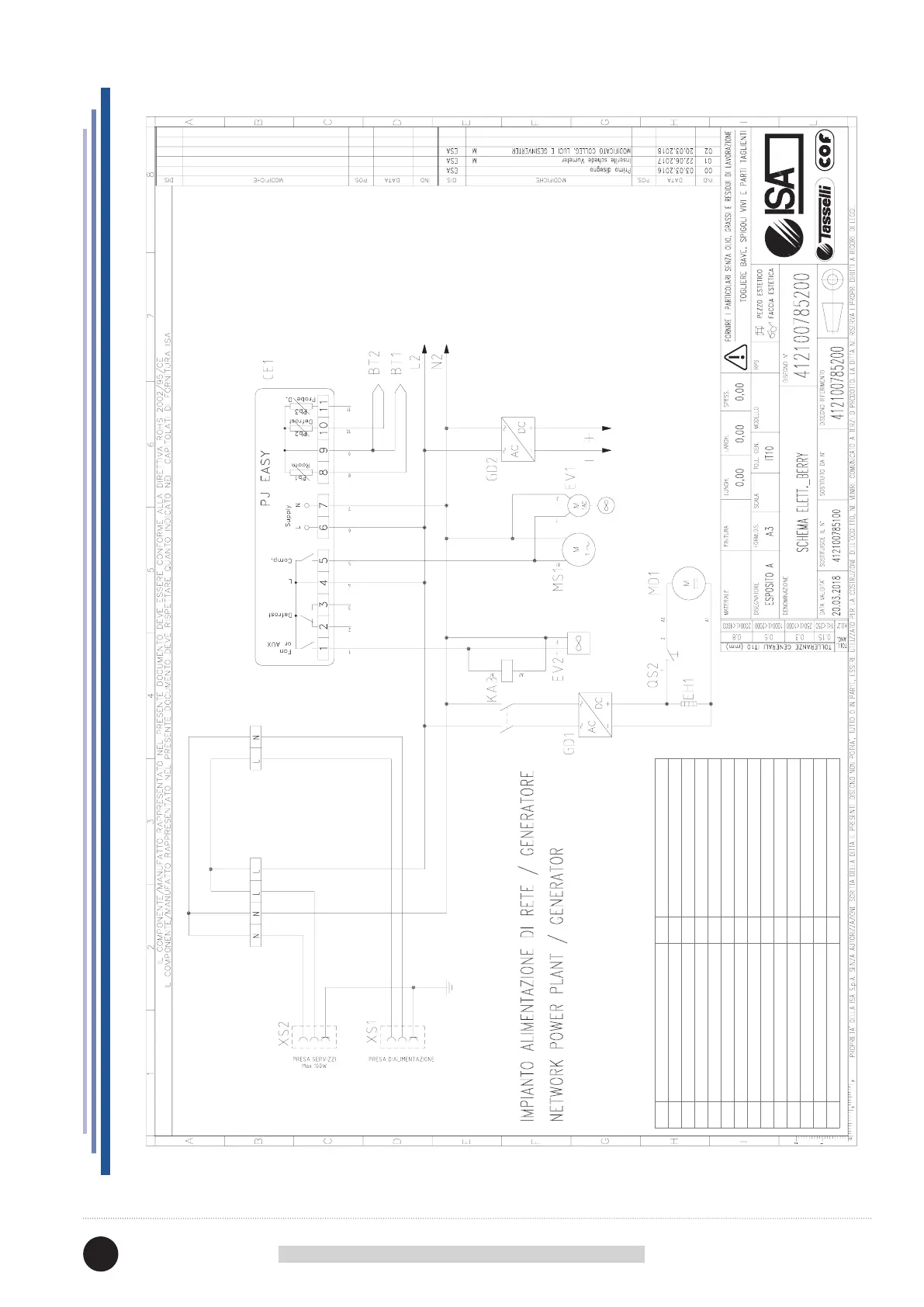

1 - WIRING DIAGRAM - 412100785200 - 1/3
BT1 TEMPERATURE PROBE HL3 LED LAMP
BT2 DEFROST PROBE HL4 LED LAMP
CE1 ELECTRONIC CONTROL BOARD INV1 INVERTER 12VDC-230V
EH1 OUTSIDE PERIMETER HEATING RESISTOR KA1 SUPPLY RELAY
EV1 CONDENSER FAN KA3 WATER PUMP RELAY
EV2 EVAPORATOR FAN MD1 WATER PUMP
GB1 BATTERY 12V MS1 COMPRESSOR
GB2 BATTERY 12V QS1 LIGHT SWITCH
GB3 BATTERY 12V QS2 WATER PUMP SWITCH
GD1 POWER SUPPLY 12V XS1 PLUG POWER
GD2 LIGHTING POWER SUPPLY XS2 PLUG
GD3 POWER SUPPLY VM1 BATTERY CHARGE LEVEL
HL1 LED LAMP VM2 BATTERY CHARGE LEVEL
HL2 LED LAMP GS1 INVERTER CONTROL
