ATTACHMENTS
77
SUPERCAPRI
EN428000925100
3

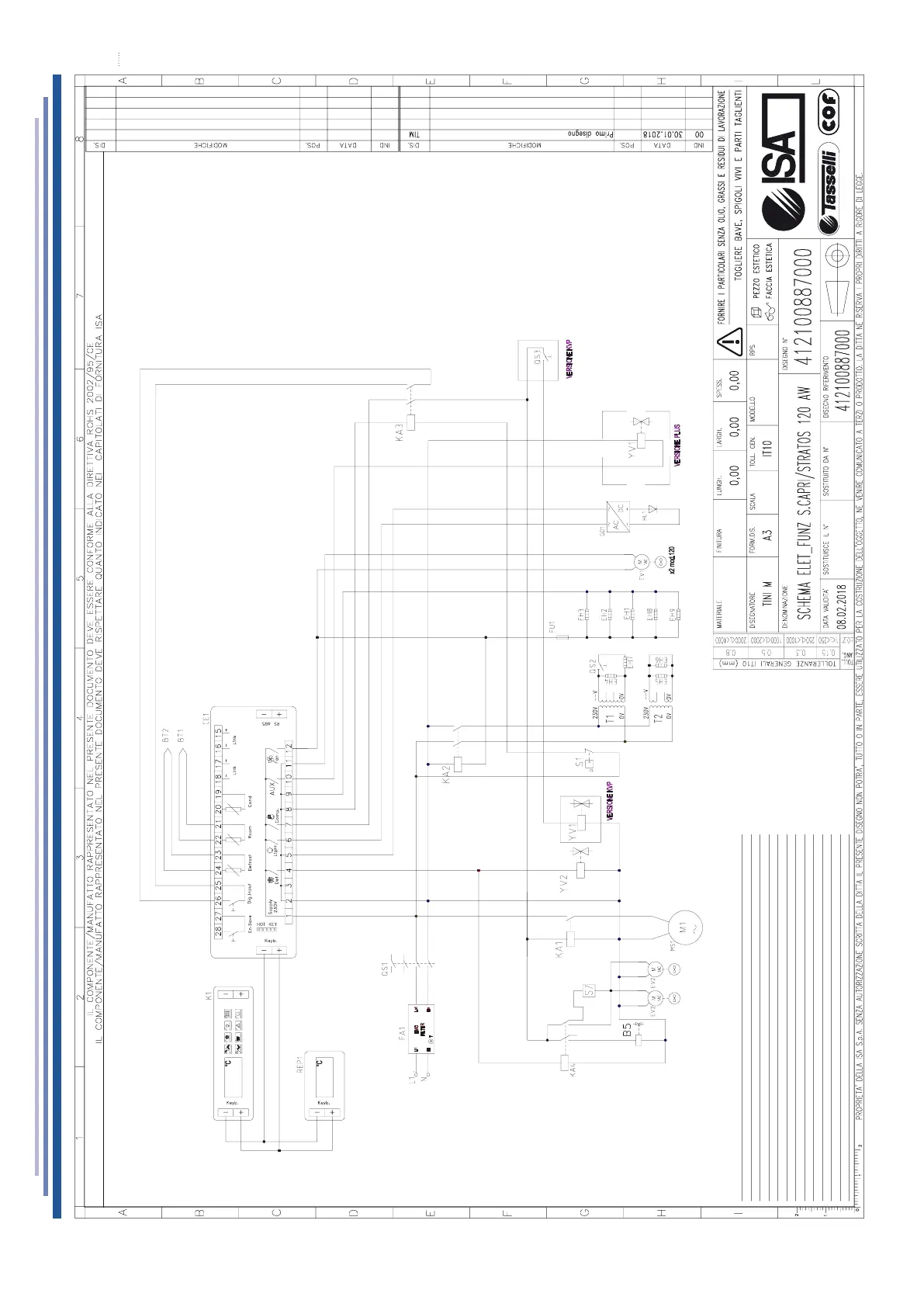

WIRING DIAGRAM - 412100887000
BT1 TEMPERATURE PROBE EV1 EVAPORATOR FAN KA3 PRESSURE SWITCH RELAY
BT2 DEFROST PROBE EV2 CONDENSER FAN KA4 WATER VALVE RELAY
CE1 ELECTRONIC CONTROL BOARD FU1 HOT WIRE FUSE R9 DELAY RELAY
EH1 OUTSIDE PERIMETER WORKING SURFACE GD1 LED POWER SUPPLY MS1 COMPRESSOR
EH2 SIDE HEATING RESISTANCE HL1 LED CEILING LIGHT S1 PRESSURE SWITCH
EH3 SIDE HEATING RESISTANCE K1 KEYBOARD T1 TRANSFORMER
EH4 HEATED FRONT GLASS REP1 TEMPERATURE REPEATER T2 TRANSFORMER
EH5 HEATED SIDE GLASS QS1 GENERAL SWITCH YV1 DEFROST VALVE
EH6 HEATED SIDE GLASS QS2 UPPER GLASS SWITCH YV2 4-WAY VALVE
EH7 HEATED UPPER GLASS FA1 FILTER QS3 KVP VALVE SWITCH
EH8 FRAME HEATING RESISTANCE KA1 COMPRESSOR RELAY B5 WATER VALVE
EH9 FRAME HEATING RESISTANCE KA2 TRANSFORMER RELAY S7 SPEED VARIATOR
