Hole to the keyswitch (from below)

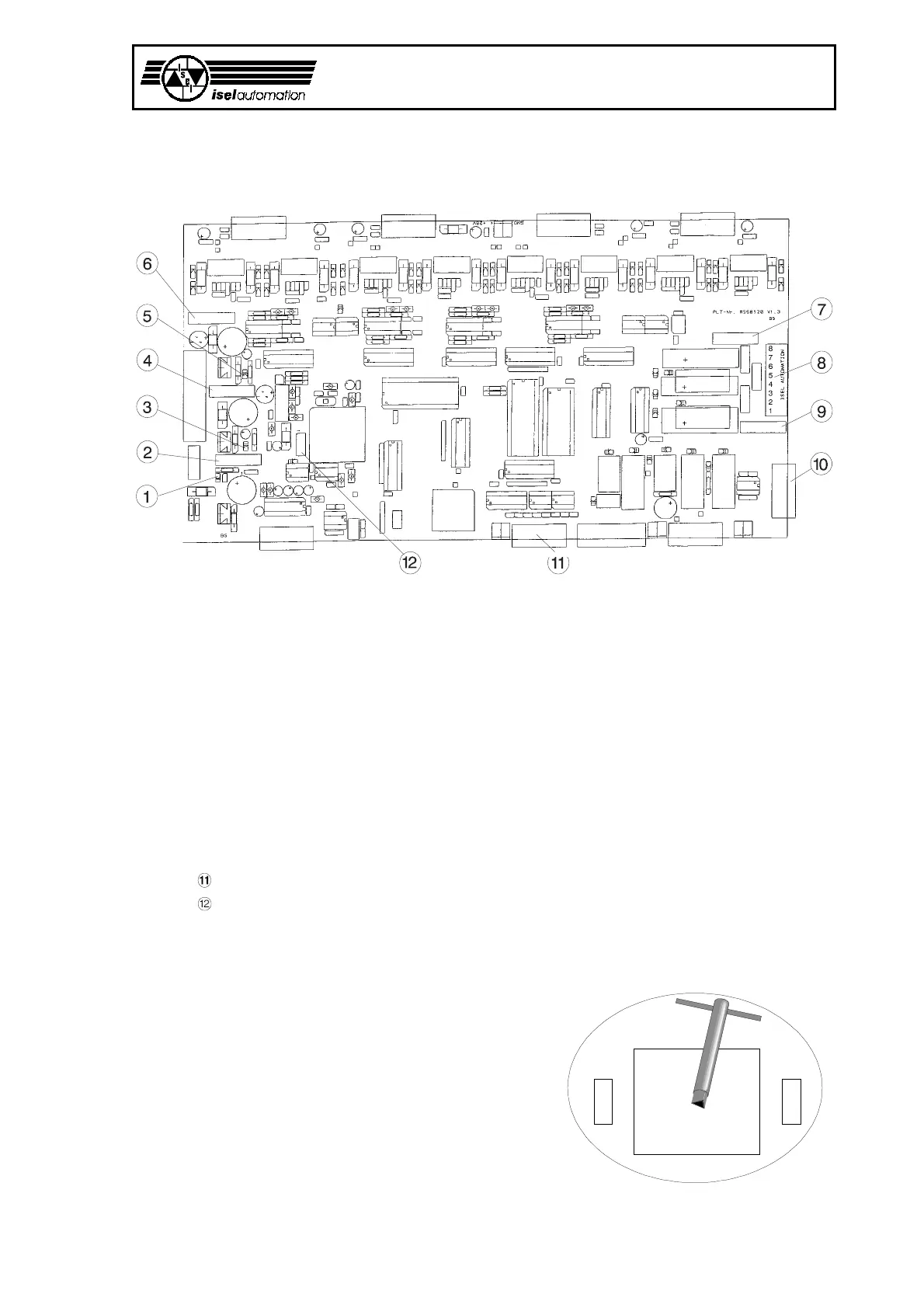

Please refer to the following drawing for the positions of fuses (, , , , ) and LED’s
(, , ).
Controller printed circuit board behind the rear-panel
Controller LED Processor supply voltage 10 V/5 V
Input fuse 1,25 Amp, slow ones
Controller LED 24 V I/O voltage
Input fuse 1,25 Amp, slow-blow
Controller LED 24 V safety circuit voltage
Input fuse 1,25 Amp, slow-blow
Supplementary output fuse 230 V, 1,25 Amp, slow-blow HBD
Supplementary output connector 230 V
Tooling machine fuse 230 V, 5 Amp, slow-blow HBD
suppl. outp. 9-pin Sub-D f. con. 15 mA max.
suppl. inp. 9-pin Sub-D fem. con.
H1 jumper field
For special cases (if a switch is defective or in case of power failure etc.), you can manually
open the hood interlock using the triangular wrench.
1. Switch off the machine and lift the machine.
2. Remove the four screws and the shield in the
bottom plate.
3. Insert the triangular wrench into the interlock
from below and turn it around half a turn to the
left without applying excessive force.
You may not operate the machine in this state.
The tooling machine remains de-energized.
