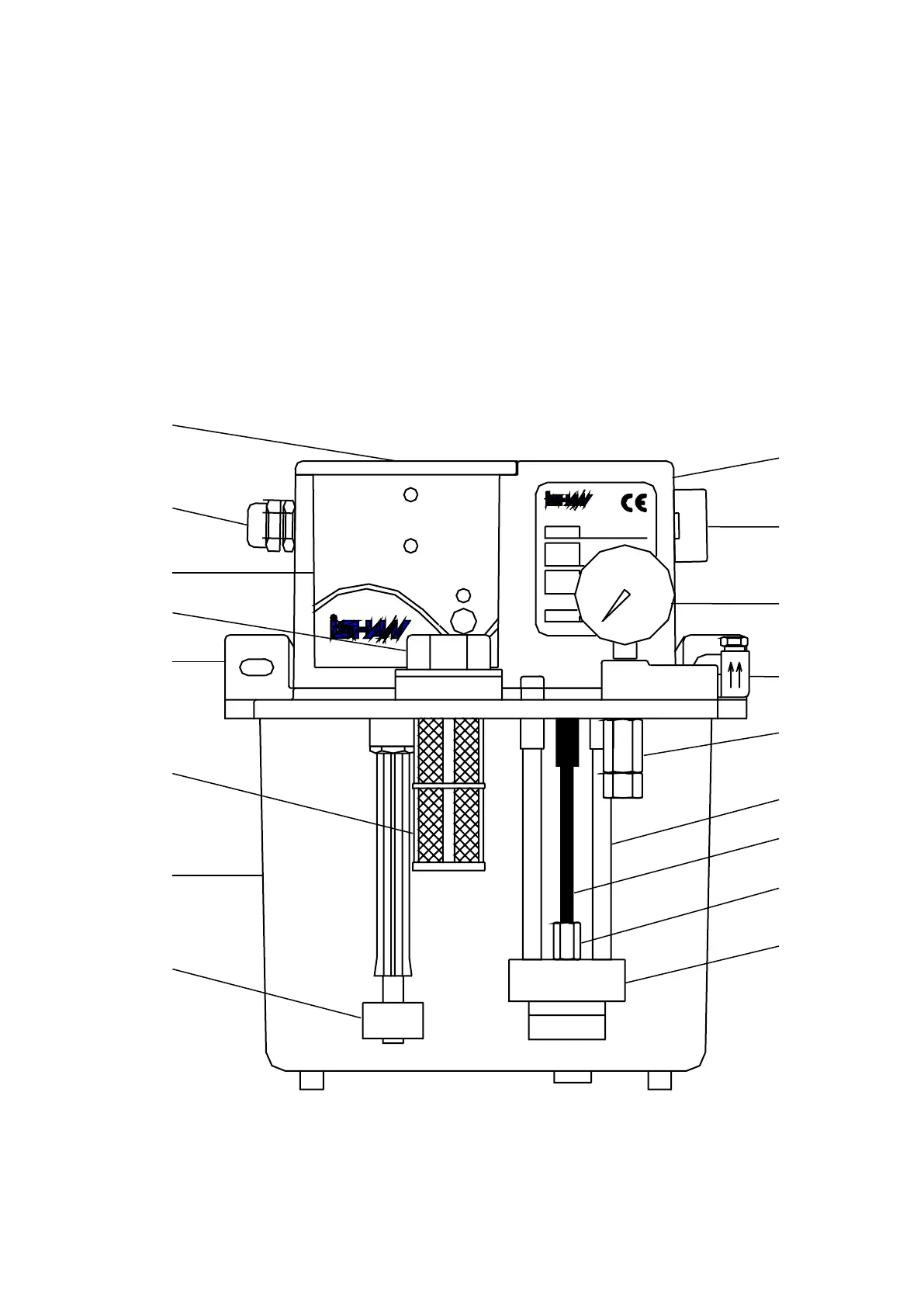

2-2 Parts of lubrication unit
1
Cover cap
10
Alarm
2
Cable gland
11
Pressure gauge
3
Display and control panel
12
Straight adapter
4
Oil tank cap
13
Dump valve(for YET-D2)
5
Mounting board
14
Rod
6
Oil inlet filter
15
Coupling
7
Reservoir
16
Pressure relief valve
8
Level switch
17
Gear pump
9
Housing
1
Fig.1
2
3
5
4
6
8
7
9
10
11
12
17
16
14
13
15
