iSimple TranzIt USB IS32 User Manual

TranzIt USB
3. Installation (cont.)

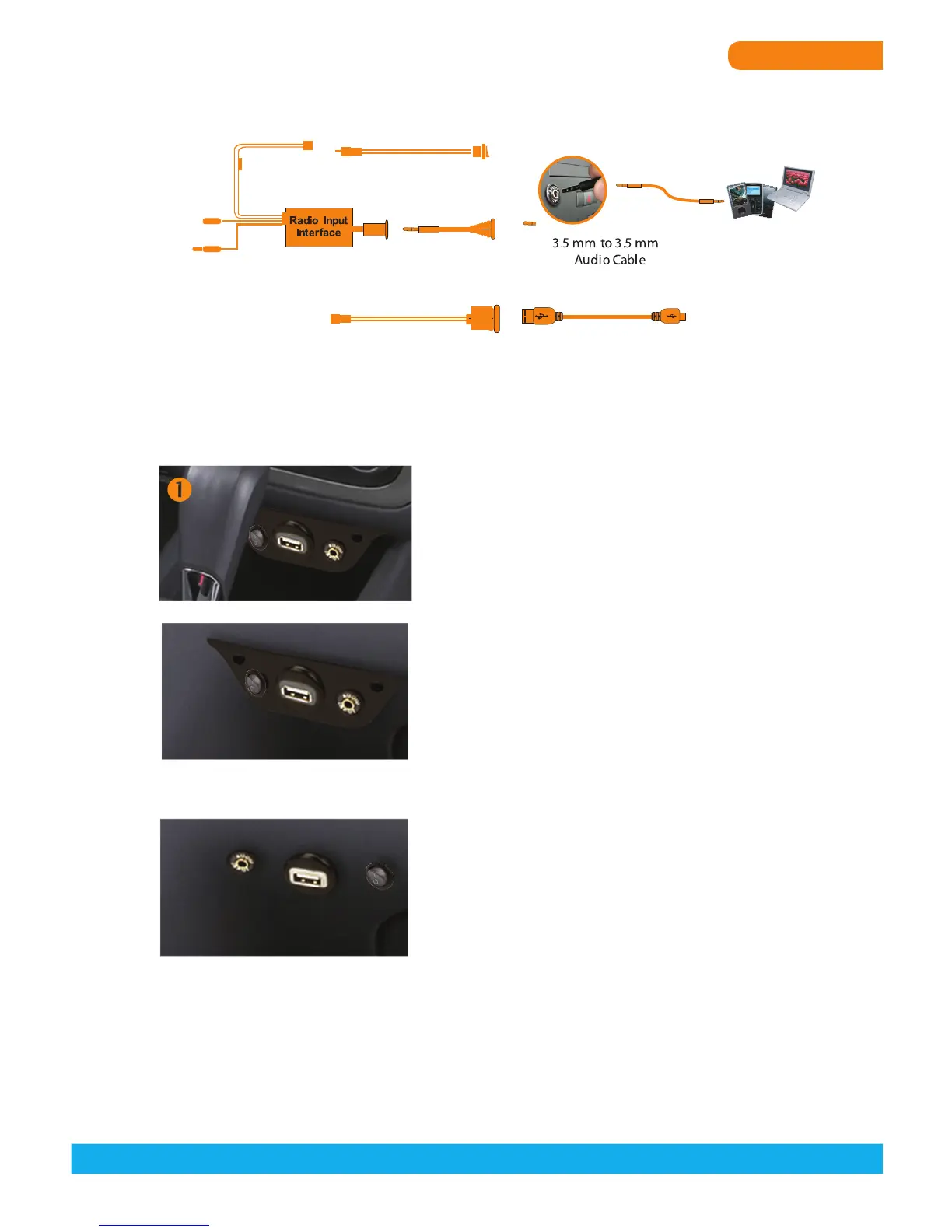

B. Connector Mounting Options
3b. Connector Mounting Options
* Some radios require the addition of antenna connection adapters
3.5mm
Audio Input
UNDER-DASH MOUNT (use of bracket)
•Easy installation
•Strong Support
PANEL MOUNT (use of faceplate)
•Stylish nish
•No unnecessary drilling
CUSTOM MOUNT (separate cables)
•Any order, Any place
•Easy to secure individually.
MOUNTING OPTIONS
Specic USB Cable
for Your Device
(Not included)
USB Power Cable
Audio
ON/OFF Switch
music player
Antenna Out
to FM rad io*
Antenna I np ut
from vehic le antenna*
2.5mm Connector

 
3.5 mm to 3.5 mm Audio Cable (4 ft.)
“Factory Look” 3.5 mm Dash Panel Mount Audio input (6 ft.)
3/8”
* Antenna Adapter May Be Required
Under Dash Mount (using bracket)
• Choose suitable mounting position under dash
• Install the bracket using two screws
• Mount audio connectors to faceplate
• Mount USB connector by carefully removing the fuse and passing
the fuseholder through the middle of the USB mounting hole
• Attach faceplate to bracket
• Install connectors to the Radio Input Interface
Face Plate Mount (using faceplate)
• Choose suitable mounting position on dash
• Conrm the proper hole position by using the
“Panel Mounting Template” (page 5)
• Mark the mounting holes
• Drill the mounting holes
• Attach the mounting panel with small screws
• Mount audio connectors to faceplate
• Mount USB connector by carefully removing the fuse and passing
the fuseholder through the middle of the USB mounting hole
• Install connectors to the Radio Input Interface
Individual (in-dash installation)*
• Choose suitable mounting position on dash
• Carefully measure and drill holes for installation
• Mount audio connectors
• Mount USB connector by carefully removing the fuse and passing
the fuseholder through the middle of the USB mounting hole
• Install connectors to the Radio Input Interface
* Some radios require the addition of antenna connection adapters
3.5mm
Audio Input
UNDER-DASH MOUNT (use of bracket)
•Easy installation
•Strong Support
PANEL MOUNT (use of faceplate)
•Stylish nish
•No unnecessary drilling
CUSTOM MOUNT (separate cables)
•Any order, Any place
•Easy to secure individually.
MOUNTING OPTIONS
Specic USB Cable
for Your Device
(Not included)
USB Power Cable
Audio
ON/OFF Switch
music player
Antenna Out
to FM rad io*
Antenna I np ut
from vehic le antenna*
2.5mm Connector



* Some radios require the addition of antenna connection adapters
3.5mm
Audio Input
UNDER-DASH MOUNT (use of bracket)
•Easy installation
•Strong Support
PANEL MOUNT (use of faceplate)
•Stylish nish
•No unnecessary drilling
CUSTOM MOUNT (separate cables)
•Any order, Any place
•Easy to secure individually.
MOUNTING OPTIONS
Specic USB Cable
for Your Device
(Not included)
USB Power Cable
Audio
ON/OFF Switch
music player
Antenna Out
to FM rad io*
Antenna I np ut
from vehic le antenna*
2.5mm Connector



* If you choose to mount the cables via the individual connector mounting
holes some drilling adjustments maybe needed depending on the material
and drill bit being used.
- 3.5mm audio input: 3/8” drill bit
- USB charging input: 3/4” drill bit
- Audio Switch ON/OFF: 9/16” drill bit
* Some radios require the addition of antenna connection adapters
3.5mm
Audio Input
UNDER-DASH MOUNT (use of bracket)
•Easy installation
•Strong Support
PANEL MOUNT (use of faceplate)
•Stylish nish
•No unnecessary drilling
CUSTOM MOUNT (separate cables)
•Any order, Any place
•Easy to secure individually.
MOUNTING OPTIONS
Specic USB Cable
for Your Device
(Not included)
USB Power Cable
Audio
ON/OFF Switch
music player
Antenna Out
to FM rad io*
Antenna I np ut
from vehic le antenna*
2.5mm Connector

 
Note: Depending up on installation, some glue may be required to properly
secure the mounting pieces.
