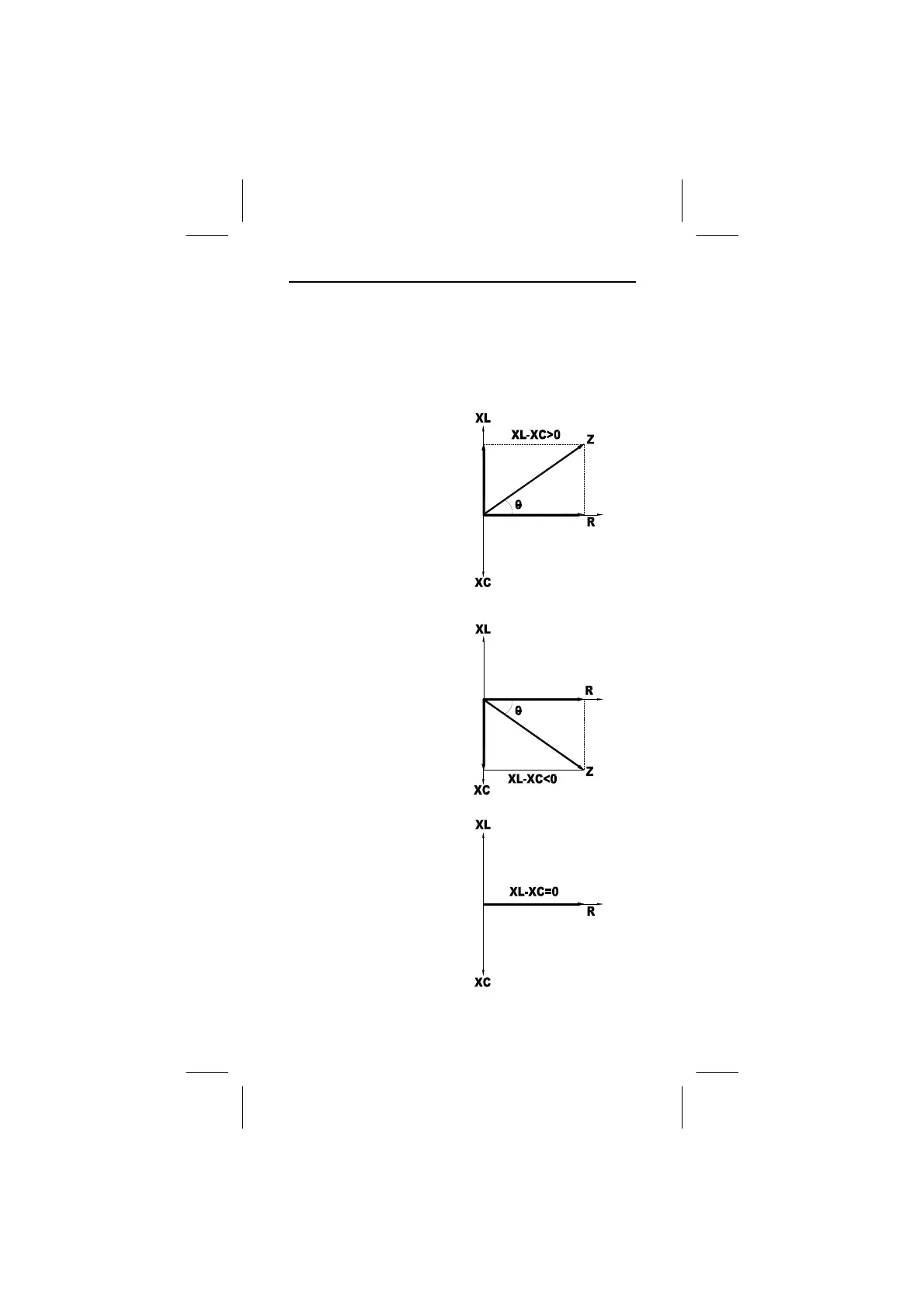

Phase Drawing
The phasor is a constant complex number, usually expressed
in exponential form, representing the complex amplitude
(magnitude and phase) of a sinusoidal function of time.
When θ (phase) > 0°
Then Z (impedance) is
Capacitive reactance
When θ (phase) < 0°
Then Z (impedance) is
Inductive reactance
When θ (phase) = 0°
Then Z (impedance) is
Resistance
