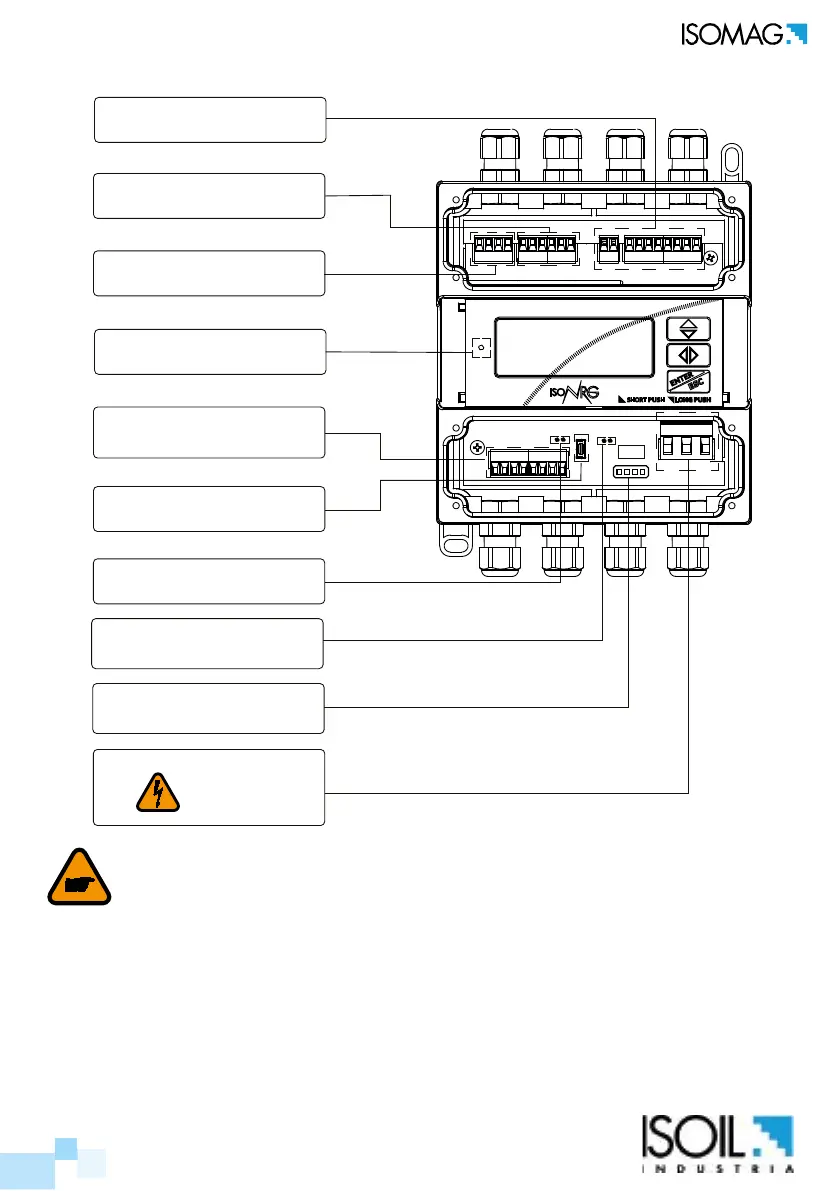

FRONT VIEW
All cables used for the connections must be of a shielded type; the screen
must be connected to the ground.
The length of the cables must be between 3m and 30m.
The ow measurement can be done in 2 ways:
analog: through a 4-20mA signal.
factorized volume pulses (frequency).
The temperature is measured by means of a pair of PT thermoresistances (RTD), preferably
with 4 wires (MANDATORY version for MID instruments); the selectable values are:
PT100, PT500 and PT1000.
RS485/Mbus
Usb mini B MCP
Terminal
supply
Output terminal block
Input terminal block
Probe terminal board
Front LED
device status
Led board
Ethernet connection
Led Ethernet
