ISOMAG MV311 - Page 9

The manufacturer guarantees only English text available on our web site www.isoil.com

311_QUICK_EN_IT_IS_R1_1.04.0X
7 / 13
10KΩ
13 (IN 1)
14 (IN 2)
15 (IN 3)
16 (IN 4)
12(COM IN)
12
22
17
+24
-0V
10KΩ
12
30
+3V
13 (IN 1)
14 (IN 2)
15 (IN 3)
16 (IN 4)
31
-0
N
P
13 (IN 1)
14 (IN 2)
15 (IN 3)
16 (IN 4)
10KΩ
3-30Vdc (ON)
0-1.5Vdc (OFF)

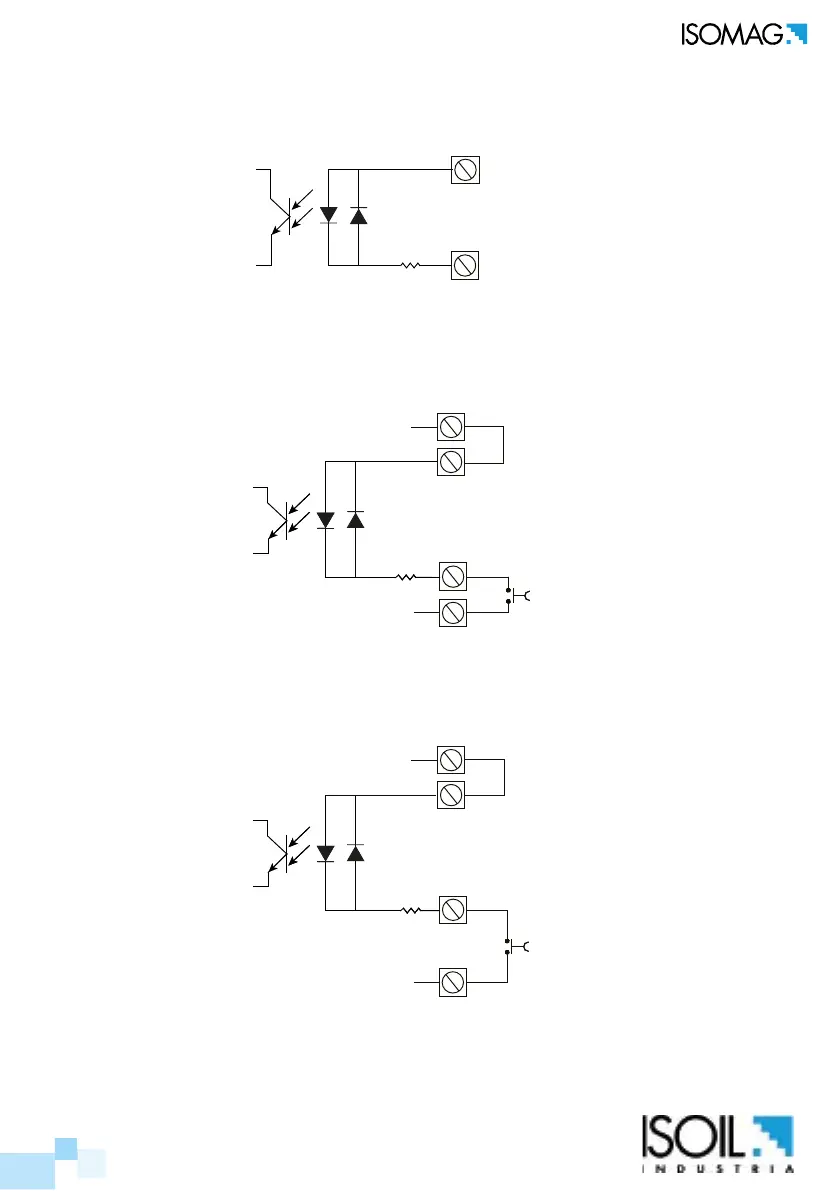

 ISOLATEd dIgITAL INPUT WITH ExTERNAL POWER SUPPLY
 dIgITAL INPUT WITH + 24V INTERNAL POWER SUPPLY
 NON-ISOLATEd dIgITAL INPUT WITH INTERNAL bATTERY POWER SUPPLY
CONNECTIONS WITH POLARITY ‘TYPE “N” (NEgATIVE)
