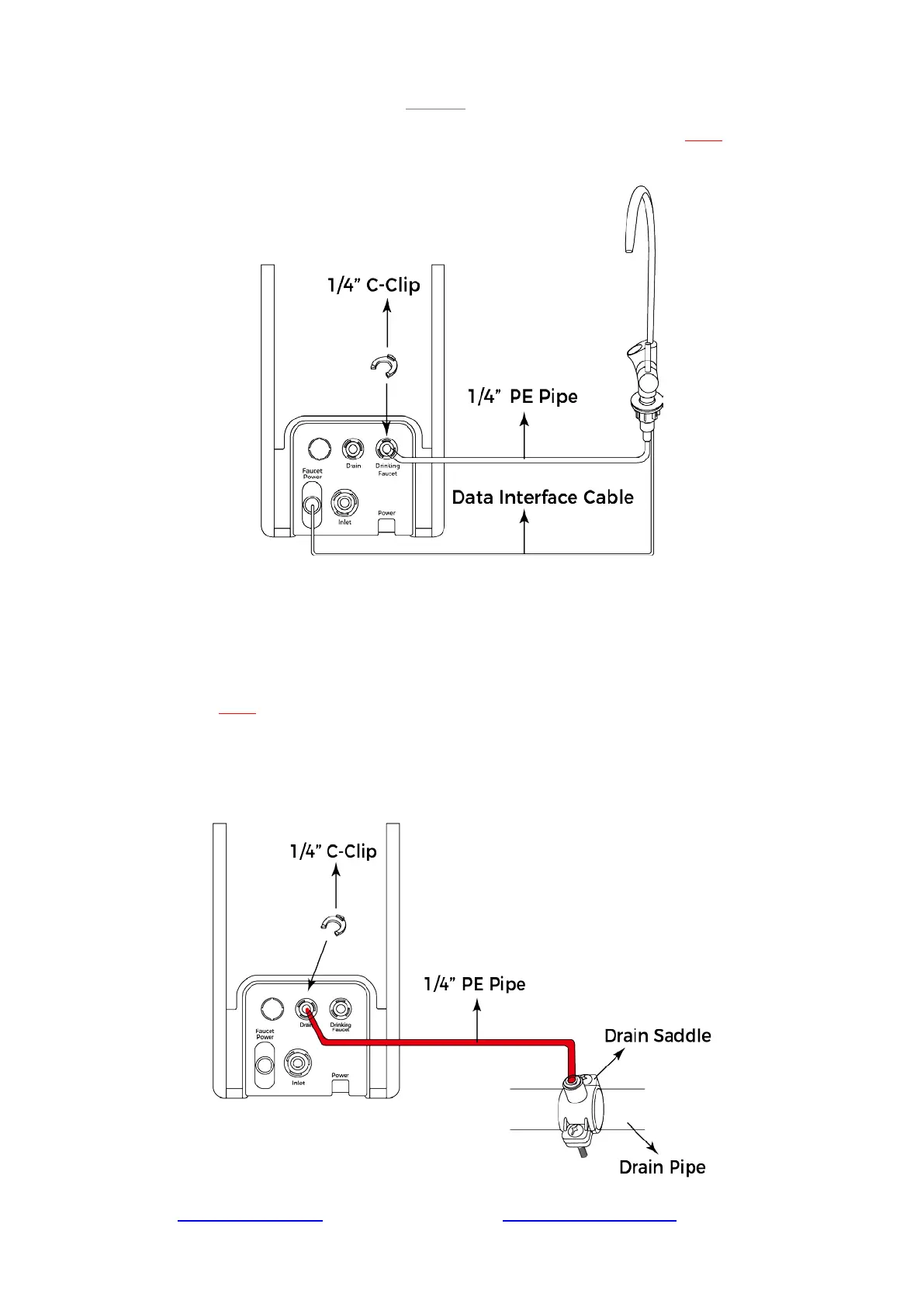

F. Connect the other end of the 1/4" WHITE tubing to the smart faucet on the waterproof
connector that corresponds to the water purifier and tightens the nut. The RED tubing will be
connected to the drain saddle.
G. Choose a spot on the drainpipe that is convenient for installing the drain saddle and tubing. A
horizontal pipe is recommended to minimize the dripping sound.
H. Drill a 1/4" hole in the drainpipe and paste the black sticky pad around the hole.
I. Cut the 1/4" RED tubing end tip to make a 45-degree angle. Insert the tubing through the hole
to the drainpipe, install the backplate, and tighten the two screws with hex nuts while the
tubing remains in the hole. Pull the tubing lightly to make sure it is secure.
www.123filter.com | (678) 261-7611 | support@123filter.com Page 10
