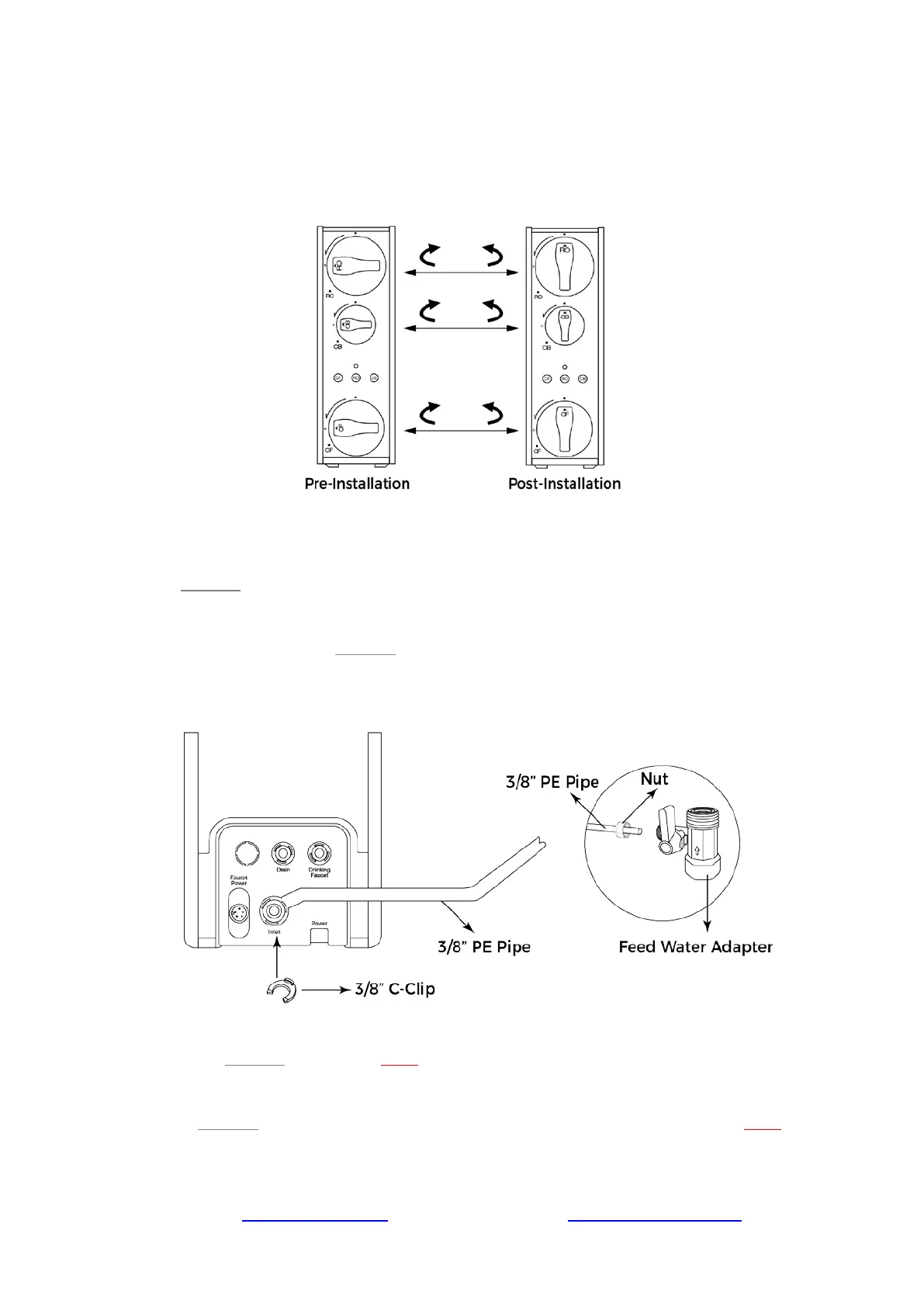

Installation: Insert the filters with the handles pointed outward. Align the arrow with the mark on
the side of the slot. The filter should fit snugly into the system’s fittings. Turn the filters clockwise
until the arrow on each filter is aligned with the mark on the top of the slot.
4) System Installation and Setup
A. Cut the WHITE 3/8" PE pipe to the appropriate length using a utility knife.
B. Insert one end of the tube into the feed water adapter. Tighten the nut using a spanner wrench.
C. Insert the other end of the WHITE tube into the 3/8" port marked "Inlet" at the top of the
system. Secure the connection by inserting the enclosed 3/8" C-clip.
D. Cut the 1/4" WHITE tubing and RED 1/4" red tubing with a utility knife to an appropriate
length.
E. Insert the WHITE tubing into the 1/4" port marked "Drinking Faucet". Insert the RED tubing
to the port marked "Drain" at the top of the system. Insert the 1/4" C-clips to lock the
connection.
Page 9 www.123filter.com | (678) 261-7611 | support@123filter.com
