External Speaker

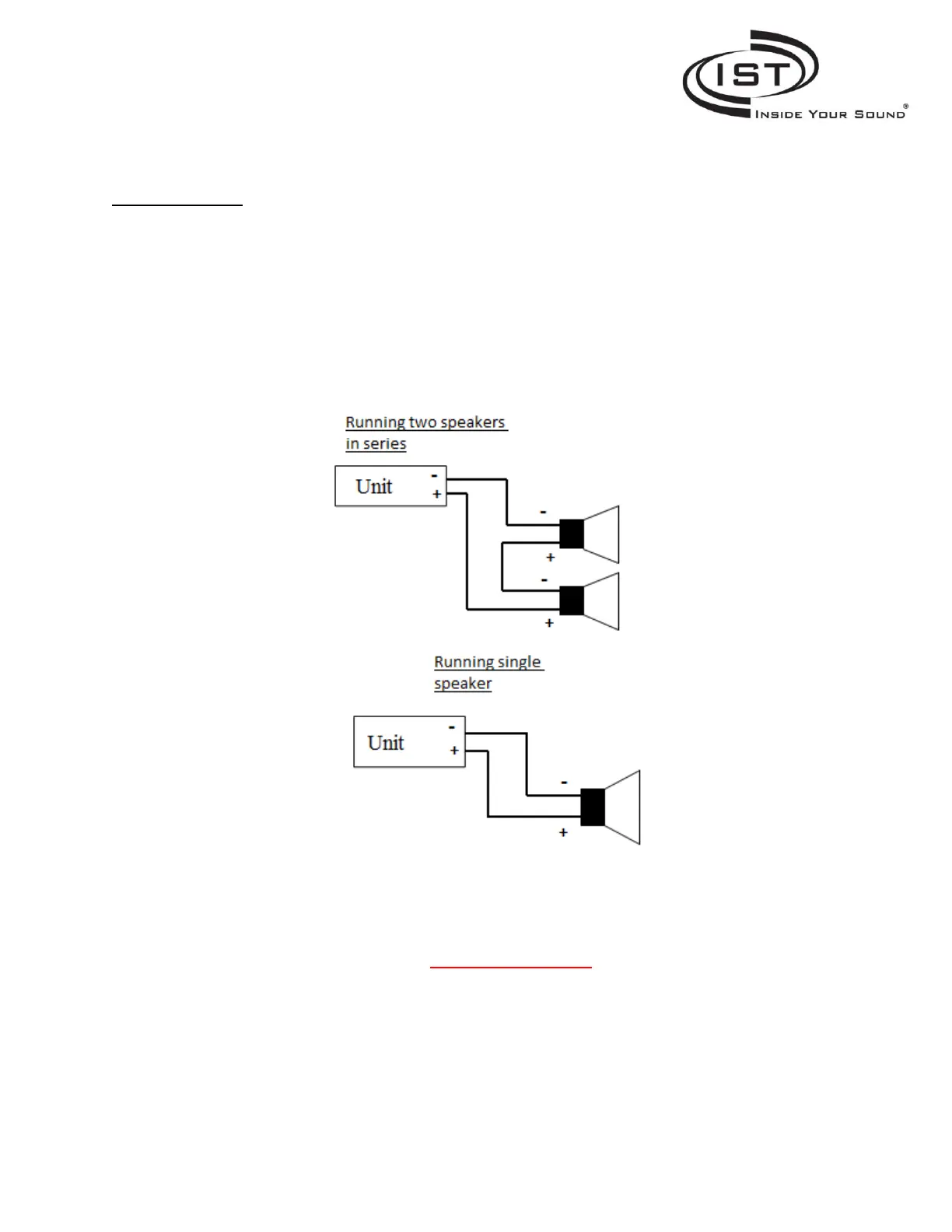

Run 16 gauge speaker wires from the master, room, or patio unit that will have the external speaker hooked
up, to where you will have the external speaker mounted. If you are hooking up two speakers to one unit,
you will run the wires in series from the unit to the two locations where your external speakers will be
mounted. Make sure to leave a service loop of at least 10 inches of cable at both ends. Below is the
diagram.
Important Information
The I2000M system is designed to be used with most 8 ohm speakers.
There could be a loss of speaker volume when used with higher wattage or low efficiency speakers.
The use of speakers rated less than 8 ohms could result in system damage.
