I2000R, I2000P, I2000D

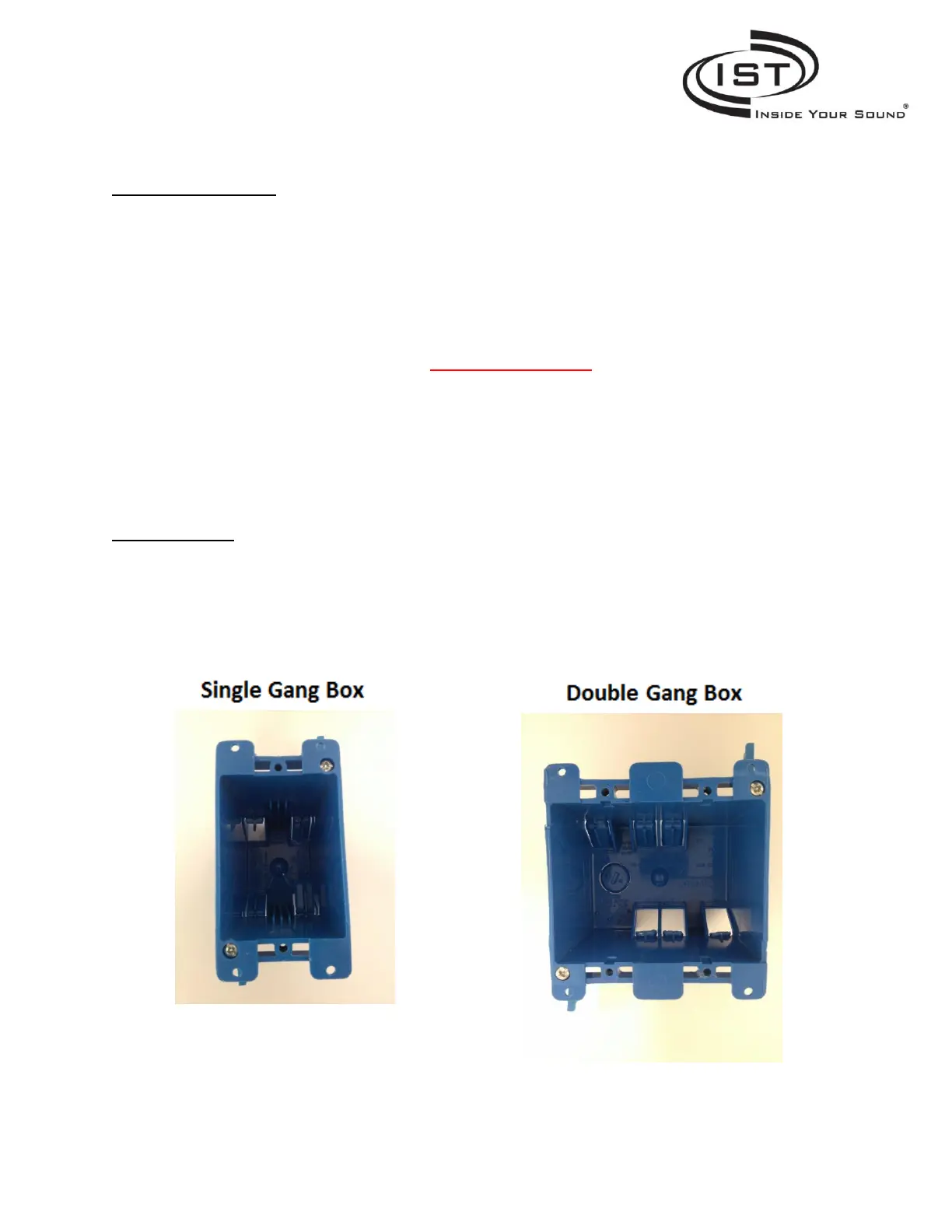

Room, patio, and door units use a standard depth plastic 2-gang box. Typically these units will install
50”in off the floor. The suggested manufacturer brand of the 2-gang box is Carlon, model B232 series
and BH 235 series. Cut a hole in the sheet rock to mount the 2-gang boxes for the room, patio, and
door units. Before you mount the 2-gang box feed the Cat5 wiring through the 2-gang box and then
mount the 2-gang box. The suggested mounting for these units is 50 inches from the floor.
Important Information
There are recess and surface mount boxes available for the patio (I2000P), and door (I2000D)
stations.
IPSMB – Patio surface mount box for I2000P
IPRSB – Patio recessed box for I2000P
IDSMB – Door surface mount box for I2000D
IDRSB – Door recessed box for I2000D
I2000VC, AUXWP
Volume control and auxiliary units use a standard single gang box, the same style as the 2-gang box. Cut
a hole in the sheet rock to mount the single gang box for the volume control and auxiliary units. Before
you mount the single gang box feed the Cat5 wiring through the single gang box and then mount the
single gang box.
To Next Page
