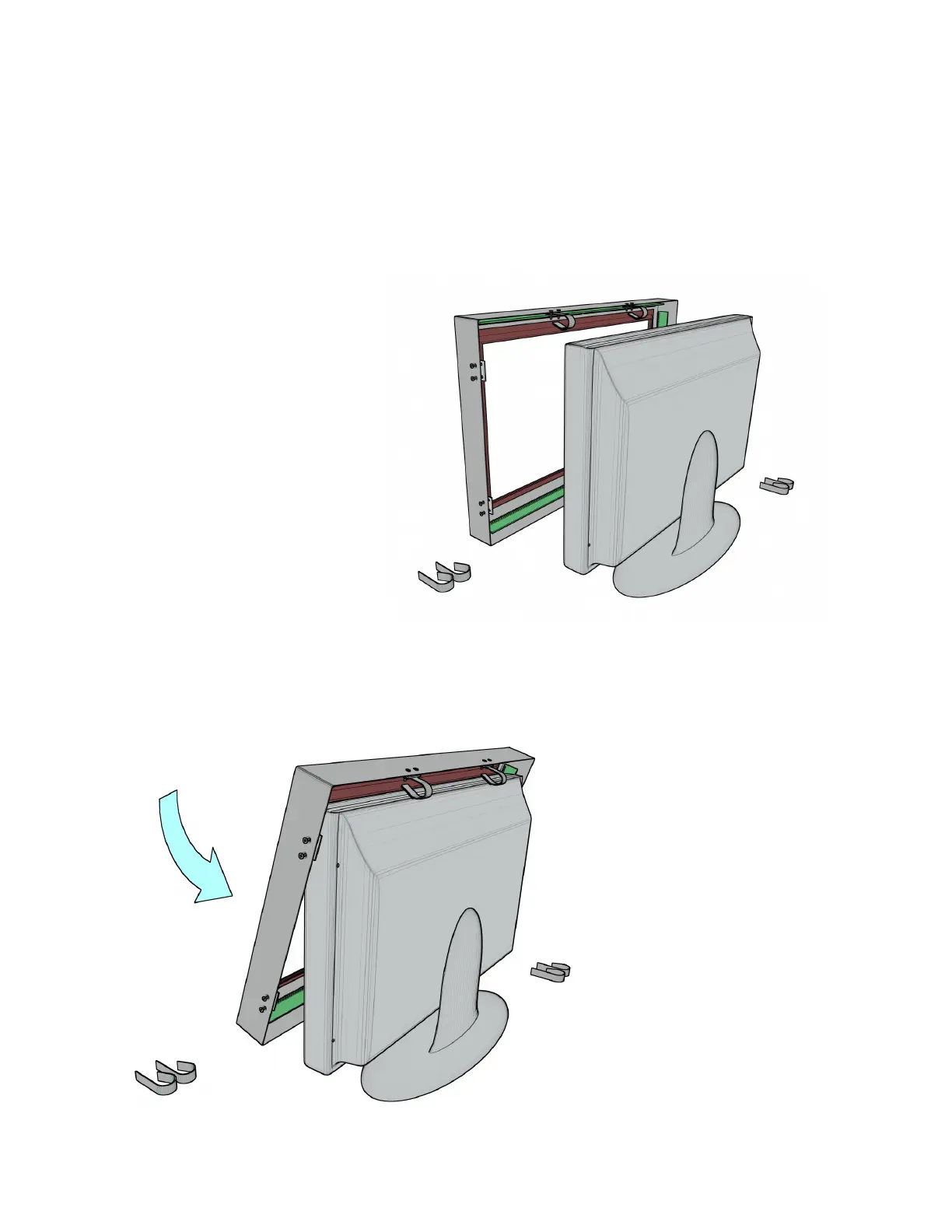

Step 2:
Carefully lower the top of the touch panel onto the display, and swing the bottom into place.
As an alternative method of assembly, you may remove all brackets and have one person hold the panel in
place while a second person pro-
ceeds to step 3.
Step 1:
Align the touch panel in front of display.
Loosen, but do not remove, the two pinch plate screws holding each of the mounting brackets on the bottom
and/or the sides of the panel. DO NOT remove the brackets on the top of the frame.
Slide the mounting brackets out of the
pinch plates and set aside for step 2.
To Next Page
