iStore - Installation Manual - 270L/R290-v1.4 May 2024
Installation

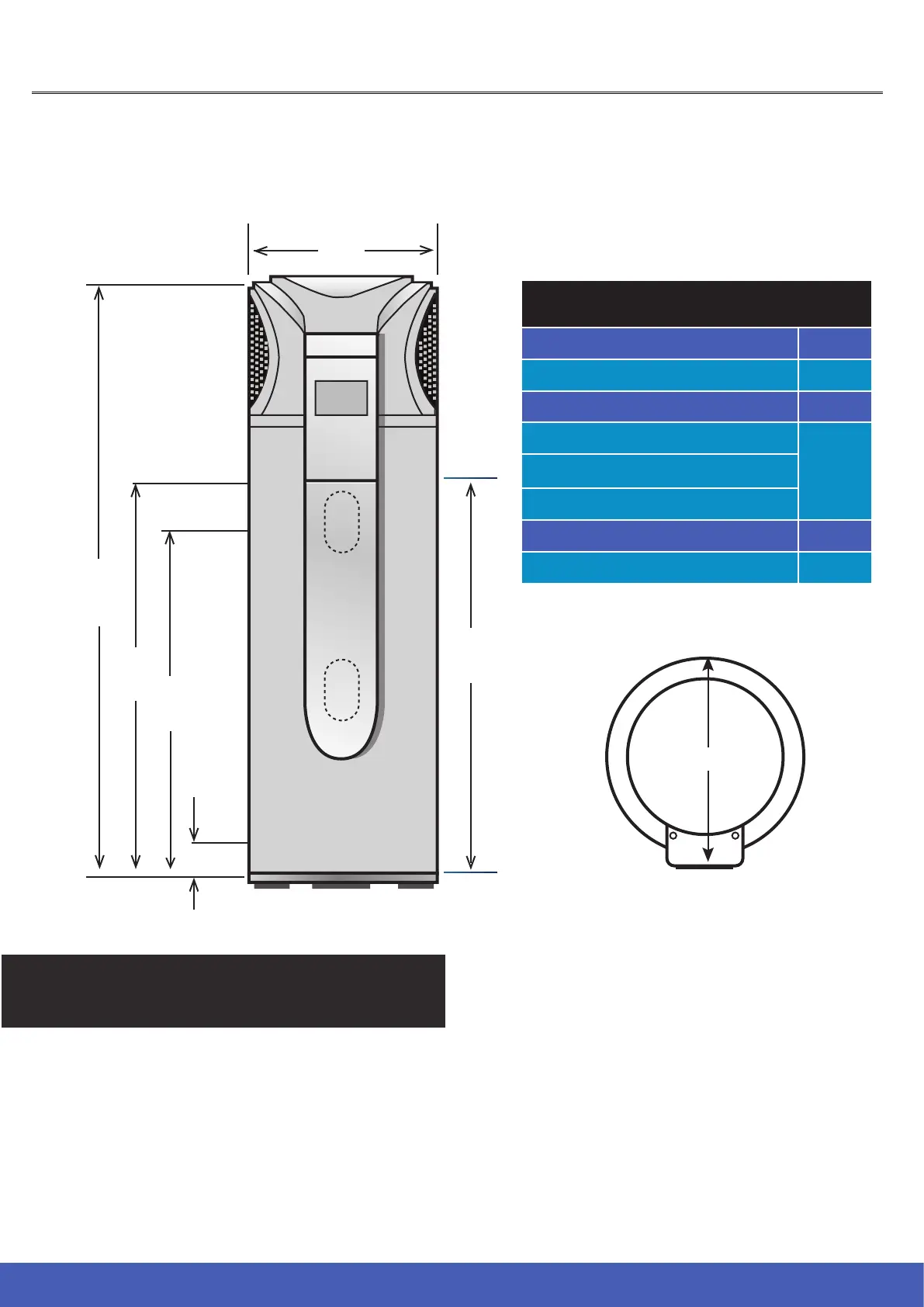

2.2 Dimensions 270L
Dimensions
Height (mm) 2005
Diameter (mm) 640
Height to water inlet (mm) 99
Height to water outlet (mm) 1194
Hot water condensation (mm)
Height to PTR Valve (mm)
Height to Anode 1094
Net weight (Kg) 133
1194
1194
1094
640
99
HW outlet
HW condensation
PTR Valve
Anode
Cold water inlet
Overall height
Overall width
270L iStore
Top View
685
2005
Unit: mm
