Istore 270L - Installation

8
iStore - Installation Manual - 270L/R290-v1.4 May 2024
Front
50
1000
500
Installation

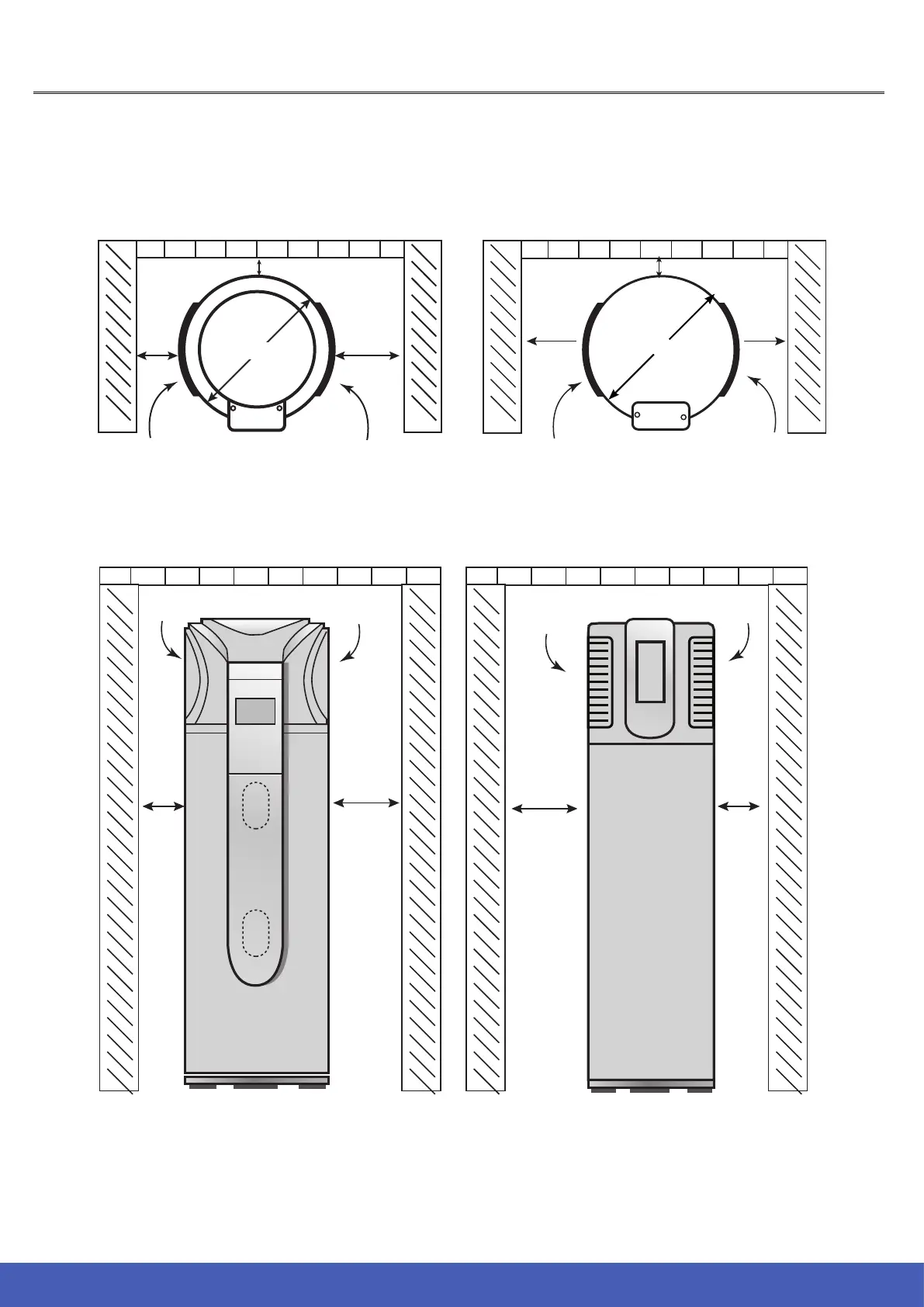

2.1 Installation space and positioning
Before installation, please ensure that you leave the space as shown below for maintenance.
640
500
50
1000
Air Inlet
Air Inlet
Air Outlet
Air Outlet
Front
540
Diagram 1a. Top View Diagram 2a. Top View
Air Inlet Air Outlet
500
1000
Air InletAir Outlet
500
1000
Diagram 1b. Front View Diagram 2b. Front View
NOTE – Restricting the air ow on the exhaust side of the iStore can severely eect the performance and
longevity of the istore. If the space is restricted then the iStore must be rotated as close to 45 degrees to
the exhaust wall.
Unit: mm
Unit: mm
