0A-16 General Information
Lifting Instruction
Lifting Instruction
If it necessary to use a lifting device other than the
original equipment jack, see illustration for acceptable
lifting points.
Lifting should only be done at the positions indicated to
prevent possible damage to the vehicle.
CAUTION:
Failure to observe the acceptable lift points may result
in unsatisfactory vehicle performance or a durability
failure which may result in loss of control of the vehicle.
Garage jack and safety stand

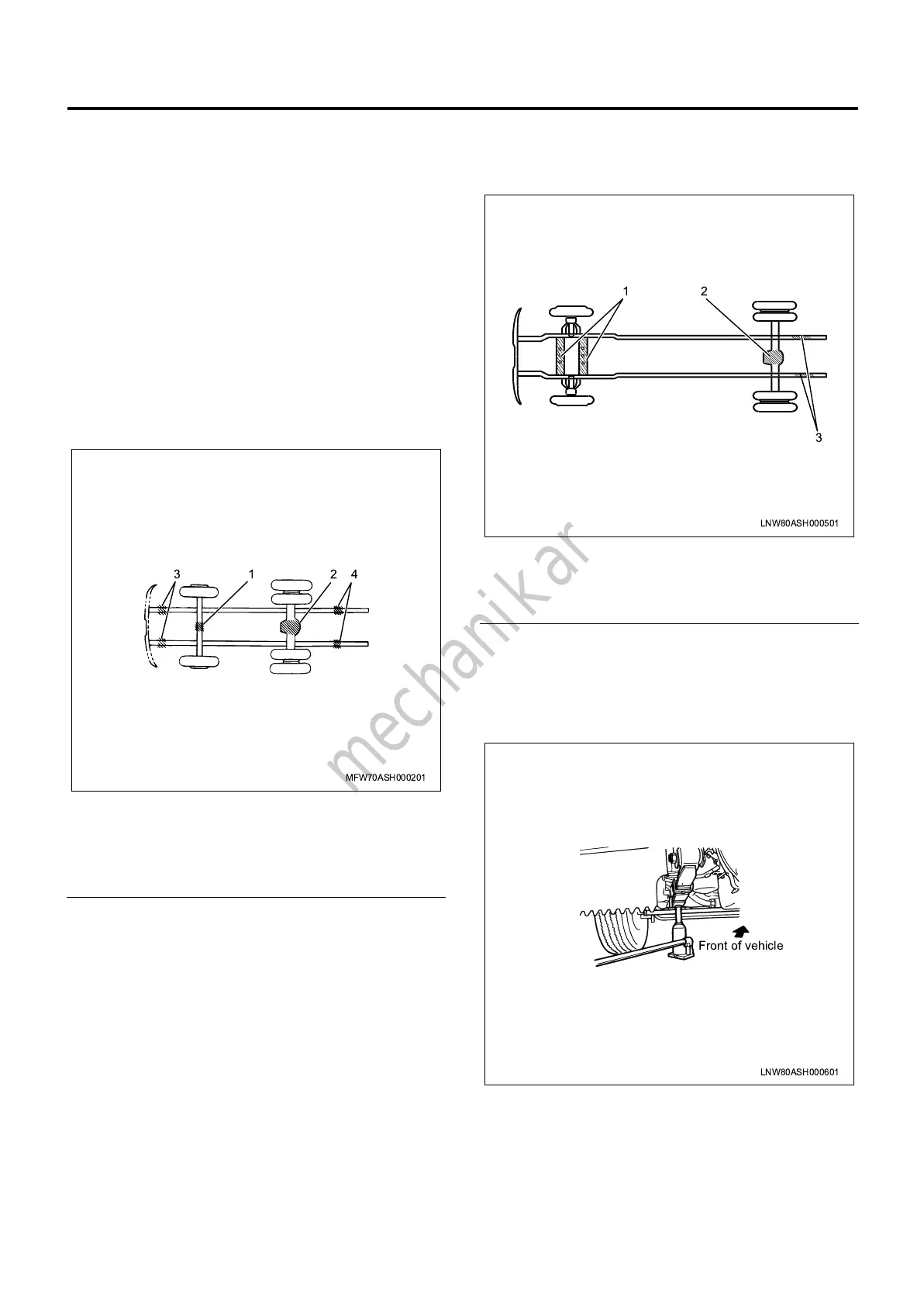

Lifting point and supportable point location - front
rigid suspension model
Legend
1. Front axle
2. Rear axle center
3. Side member front side
4. Side member rear side
Lifting point and supportable point location - front
wishbone suspension model
Legend
1. Suspension cross member
2. Rear axle center
3. Side member rear side
Lifting point positions - font side
CAUTION:
Do not lift or support on engine oil pan.
Rigid suspension model (2WD)
MFW70ASH000201
31 24
LNW80ASH000501
3
21
LNW80ASH000601
Front of vehicle
