General Information 0A-23
Regarding the Scan Tool
Trouble Diagnosis Using the Scan Tool
Regarding the scan tool (Tech2) / Tech2 24 volt
adaptor 2 /CAN-di module [Euro4 specification]
This tool is effective for diagnosing electrical failures in
electronic control units and performing system checks.
If you connect the Tech2 to the DLC installed in the
vehicle, it performs communication with the control
units of the vehicle, and enables various diagnoses and
tests to be performed.

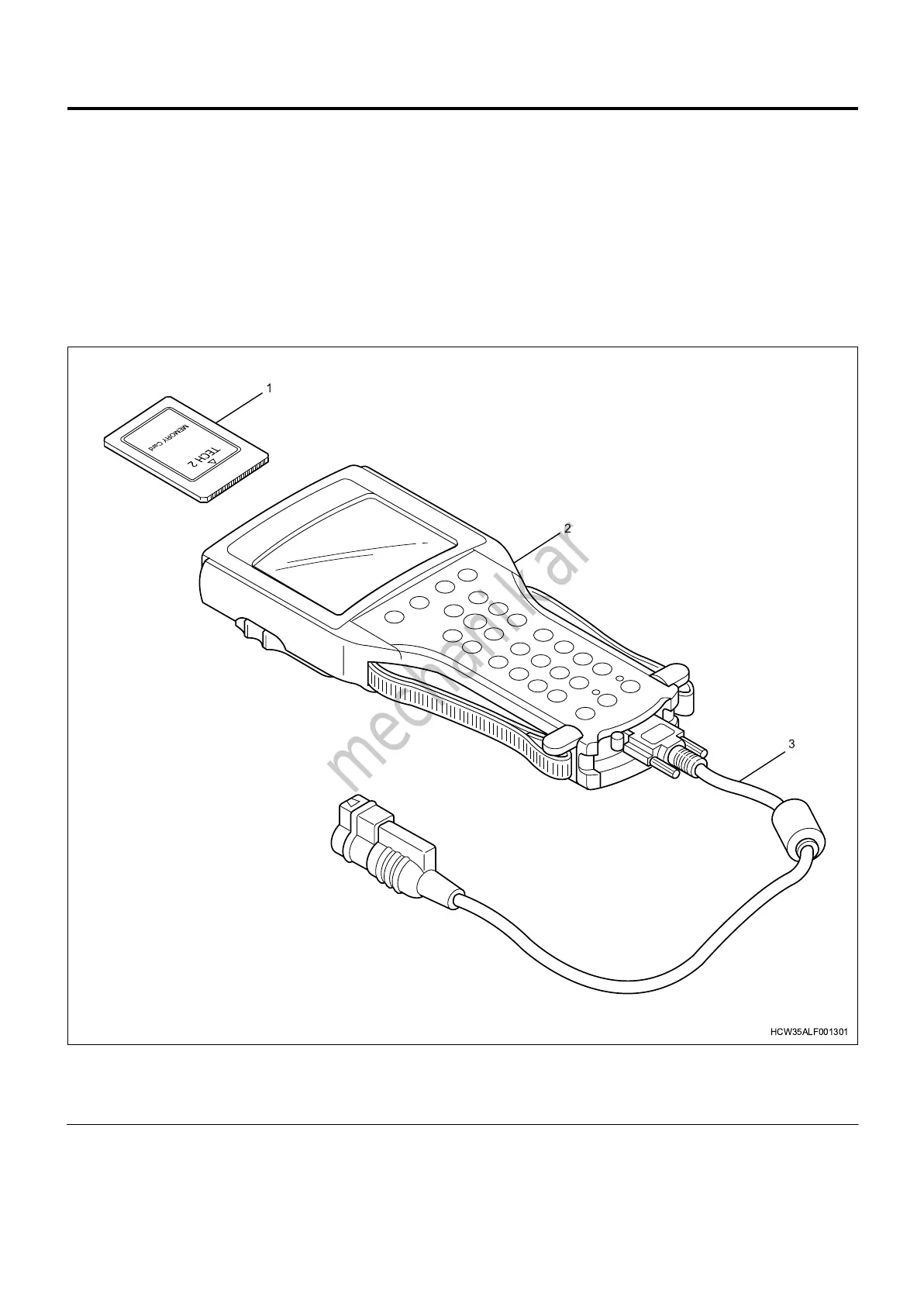

Legend
1. PCMCIA card (dedicated)
2. Tech2 (body)
3. DLC cable
HCW35ALF001301
1
2
3
