 iSYSTEM, March 2017 27/66

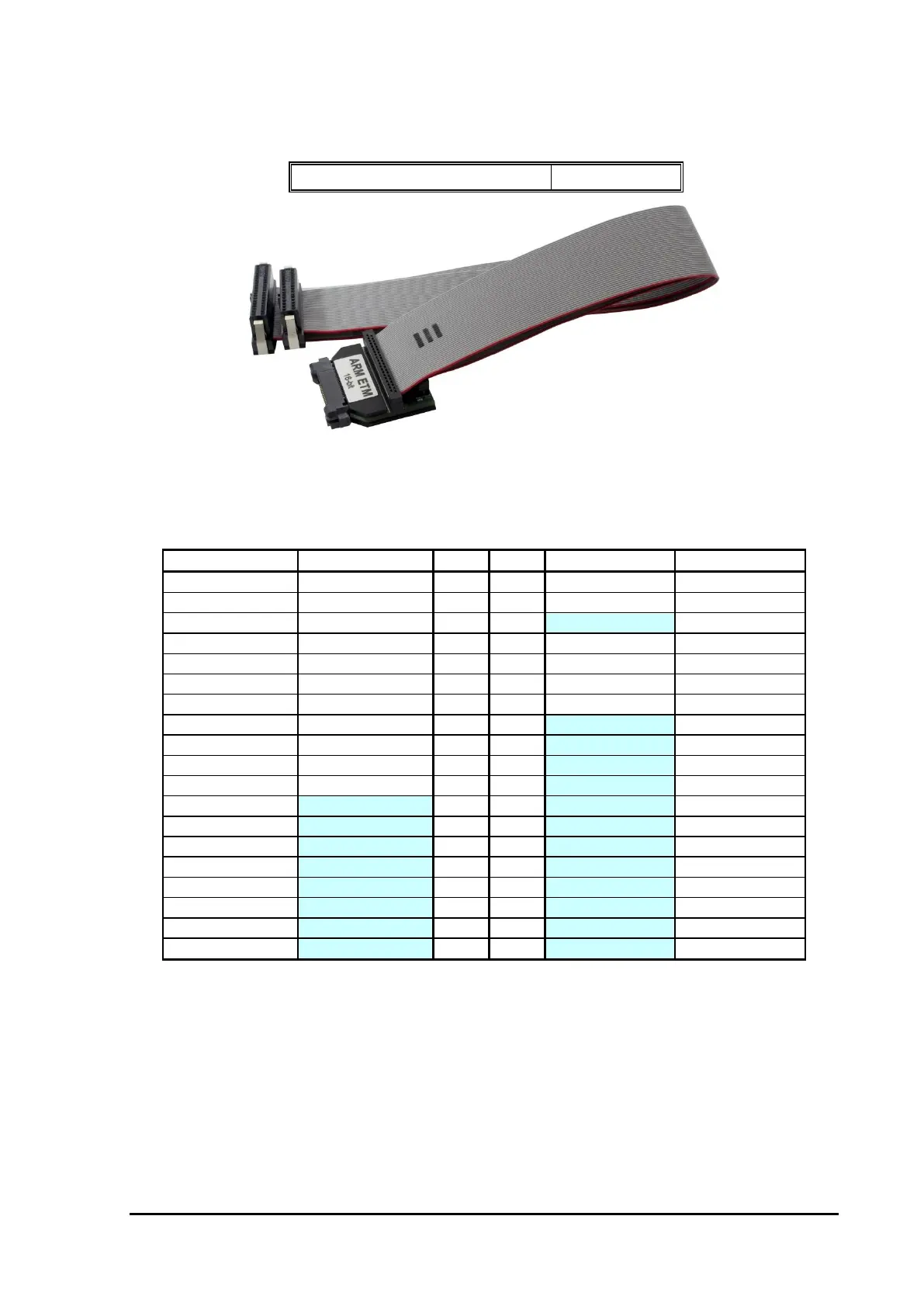

 Mictor 38-pin ARM ETM 16-bit Cable Adapter
Ordering code
IC50115
This adapter is used to connect the iC5000 / iC5500 / iC5700 development system to ARM7/ARM9 based target.
It connects to Debug/Trace module on one side and to the target debug connector on the other side. It can be
used for targets featuring Mictor 38-pin target debug connector with ARM7/ARM9 ETM pinout.
The same cable adapter covers ETMv1 and ETMv3 pinout. The following pinout is valid on the target side:
Signal direction
Signal
Pin
Pin
Signal
Signal direction
NC
1
2
NC
NC
3
4
NC
NC
5
6
TRACECLK
I
NC
7
8
NC
I/O
nSRST
9
10
NC
I
TDO
11
12
VTref
I
NC
13
14
NC
O
TCK
15
16
TRACEPKT[7]
I
O
TMS
17
18
TRACEPKT[6]
I
O
TDI
19
20
TRACEPKT[5]
I
O
nTRST
21
22
TRACEPKT[4]
I
I
TRACEPKT[15]
23
24
TRACEPKT[3]
I
I
TRACEPKT[14]
25
26
TRACEPKT[2]
I
I
TRACEPKT[13]
27
28
TRACEPKT[1]
I
I
TRACEPKT[12]
29
30
TRACEPKT[0]
I
I
TRACEPKT[11]
31
32
TRACESYNC
I
I
TRACEPKT[10]
33
34
PIPESTAT[2]
I
I
TRACEPKT[9]
35
36
PIPESTAT[1]
I
I
TRACEPKT[8]
37
38
PIPESTAT[0]
I
ETMv1 target pinout
Blue colored signals are required for trace.
