IAPIN10PIN16NEC78K
With this adapter, the following pinout is valid on the target side:
Signal
direction
Signal description
Signal
Pin
Pin
Signal
Signal description
Signal
direction
Ground
GND
1
2
RESET OUT
Reset Out
O
Not Connected
NC
3
4
TARVCC
Target Vcc
I
Not Connected
NC
5
6
NC
Not Connected
Not Connected
NC
7
8
NC
Not Connected
O
Communication line
X1
9
10
NC
Not Connected
Not Connected
NC
11
12
NC
Not Connected
I/O
Communication line
X2
13
14
FLMD0
Flash Mode
O
I
Reset In
RESET IN
15
16
NC
Not Connected

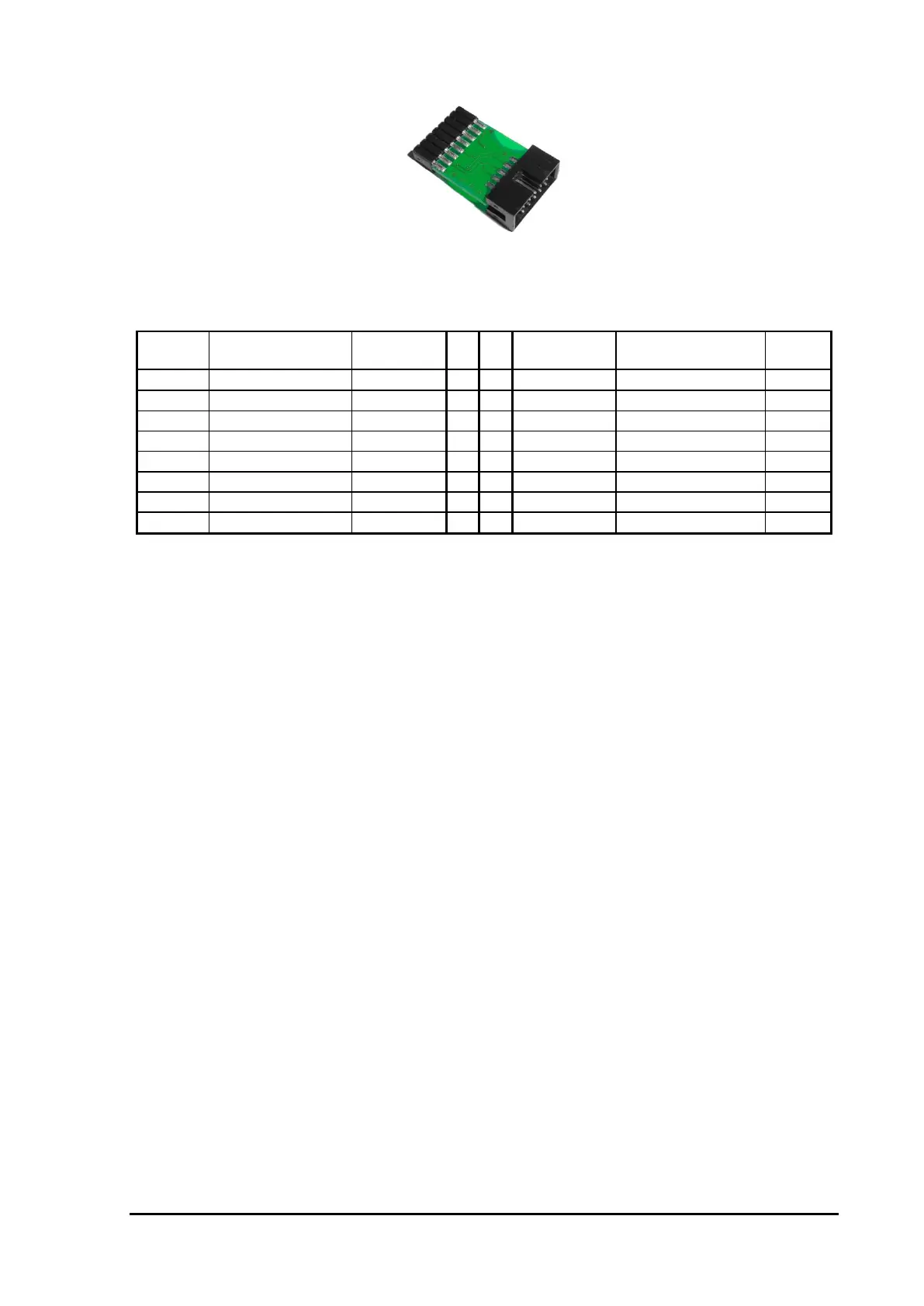

16-pin Renesas 78K0 Serial Debug target pinout
The adapter connects to the target via a 10-pin 2.54 mm connector (for example Yamaichi: FAS-1001-2101-2-
OBF). A target should feature a matching part (for example WÜRTH ELEKTRONIK: 612 010 216 21).
