ITC Audio T-6201 - Nomenclature and Functions; Front Panel

6
1. POWER
Power indicator
2. POWER SWITCH
On top of the opening Power
Press the end, power shut down
3. BASS
Adjust bass response. Rotate clockwise to increase
bass output and anticlockwise to reduce it.
4. NOMENCLATURE AND FUNCTIONS
2 3 4 5
4. TREBLE
Adjust treble response. Rotate clockwise to increase
treble output and anticlockwise to reduce it.
5. AUX1 \ AUX2 \ AUX3
AUX volume control(AUX 1/AUX 2/AUX3)
6. MIC(1~5)
MIC volume control (MIC(1~5))
7. MIC
MIC1 input 6.3 Microphone jack input
61

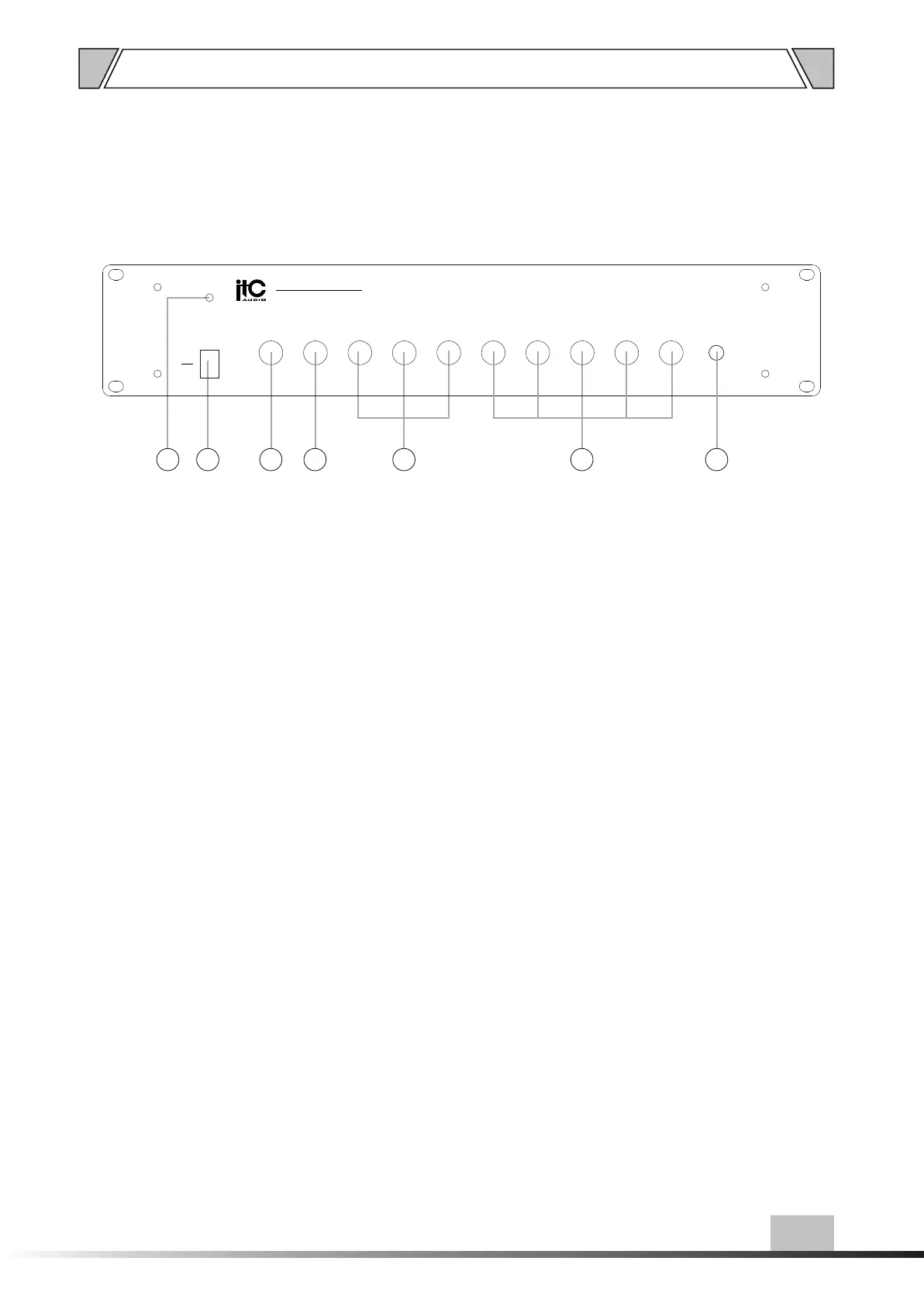

4.1 FRONT PANEL
