- 6 -
BLADE CUTTING DIRECTION
-The saw bow will return to the bow’s maximum height
upon completion of operation.
- In case of Emergency or problem during the
operation cycle, press the emergency push button (H
or I) down to shut off all functions.
-To release the emergency push button (H or I), rotate
the mushroom shaped button clock-wise. The button
will pop up and then the cutting cycle can be
restarted.
-The hydraulic flow control (G) will automatically
shut-off after 5 minutes of non-operation.
*Note: If the hydraulic flow control fails to activate, then
switch (C), (D), and (F) cannot operate. Indicator
light (7) will blink if any are pressed, indicating that
start switch (G) has failed to activate.
-If the hand operation is selected and the foot pad is
used, then the hand operation indicator light (4) will
blink. And vice versa, If the foot pad operation is
selected and the hand switches are used, then the
foot operation indicator light (5) will blink. They
indicate improper selection.
-The appropriate indicator light will blink to indicate
which part of the machine has gone out of order.
1. Indicator light 14 indicates the emergency button
is pressed. Indicator light 16 indicates the
emergency button on foot pad is pressed.
2. Indicator light 13 indicates the band saw blade
has broken.
3. Indicator light 10 indicates the blade cover is
open.
4. Indicator light 12 indicates the motor has
overloaded.
5. Indicator light 15 indicates the hydraulic motor
has overloaded.
6. Indicator light 11 indicates the speed is not
properly selected.
-If the saw bow up/down switches are out of order then
indicator lights 2 and 3 will blink at the same time.
4 ADVICE ON USING YOUR BANDSAW
4.1 Recommendations and advice for using the
machine
The machine has been designed to cut metal building
materials of various shapes and profiles for use in
workshops, turner's shops and general mechanical
structural work.

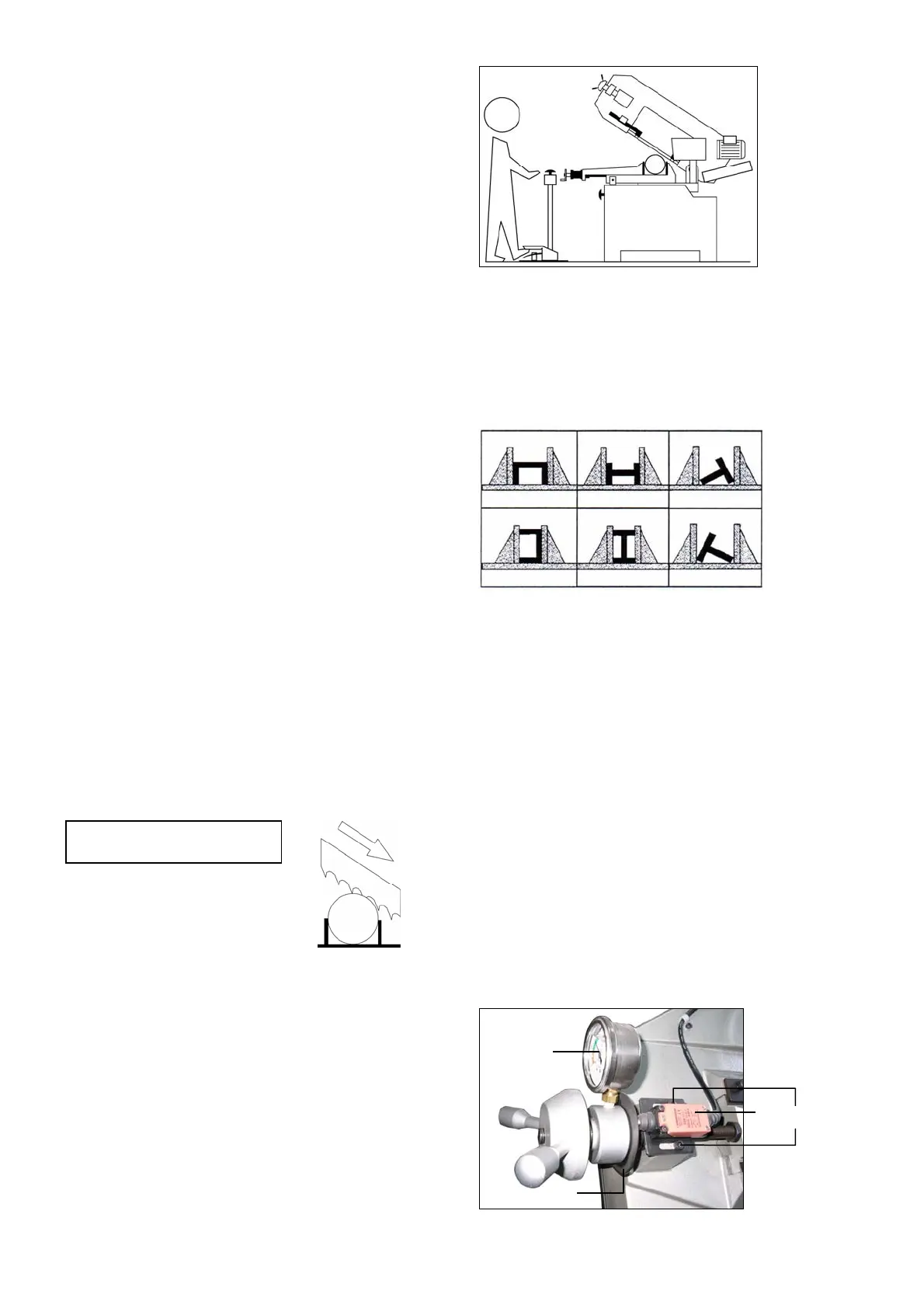

Only one operator is needed to use the machine, that
must stand as shown in the picture.
- Before starting each cutting operation, ensure that
the part is firmly clamped in the vice and that the end
is suitably supported.
- These figures below show examples of suitable
clamping of different section bars, bearing in mind the
cutting capacities of the machine in order to achieve a
good efficiency and blade durability.
- Do not use blades of a different size from those
stated in the machine specifications.
- If the blade gets stuck in the cut, press the cycle start
switch or emergency button immediately to switch off
the machine, open the vice slowly, remove the part
and check that the blade or its teeth are not broken.
If they are broken, change the blade.
- Before carrying out any re
pairs on
the machine,
consult the dealer.
5 ADJUSTING YOUR MACHINE
5.1 Blade tension assembly
The ideal tension of the blade is achieved rotating the
handwheel until the needle reaches the poper blade
tension on the tension gauge (A).
The machine will not operate if the microswitch does
not actuate by contacting the touch plate (C).
C
B
D
