ITRON Delta Series User Manual

67

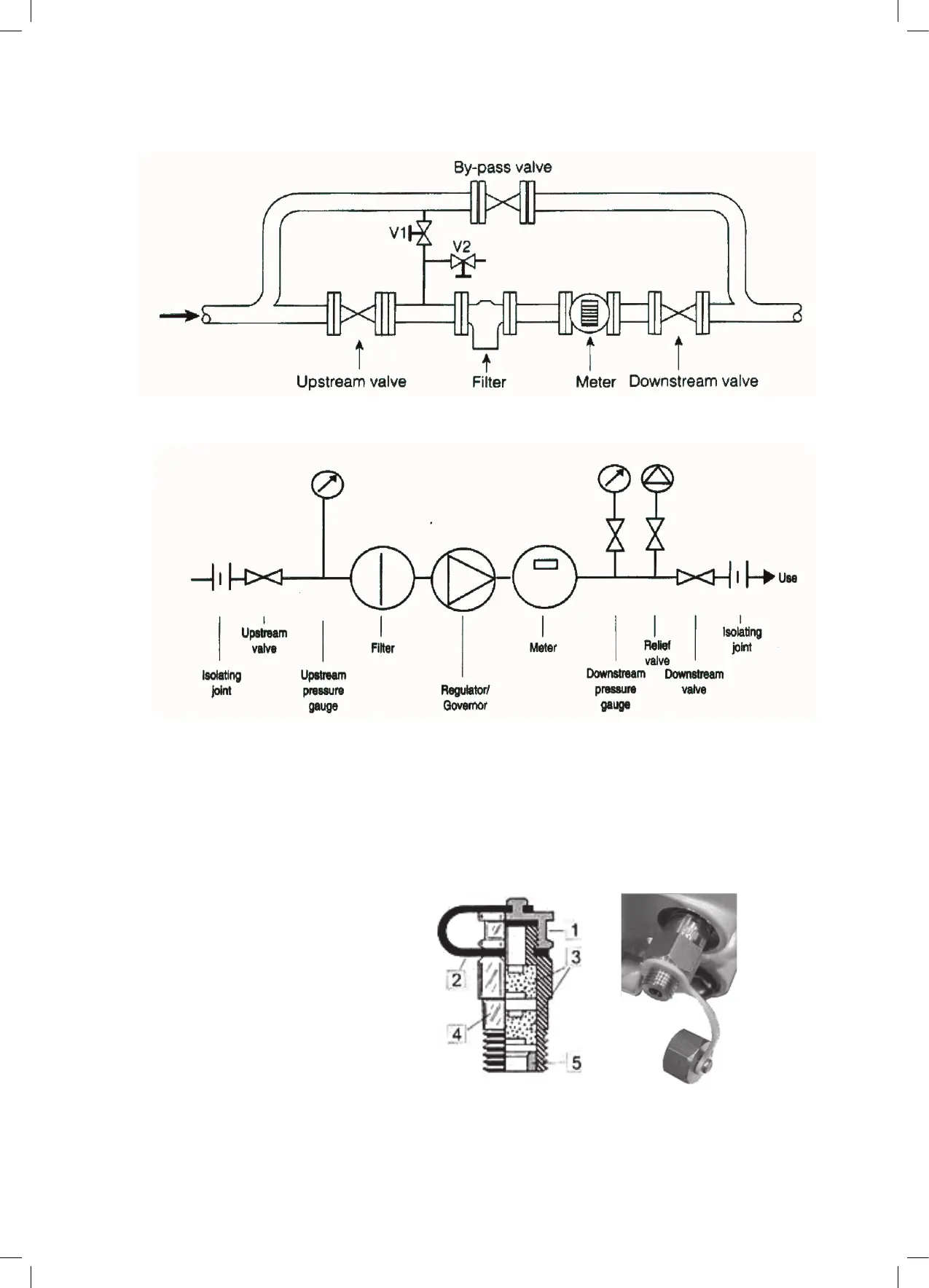

Annex 5: Installation with by pass / Installation avec bipasse / Installation mit Bypass / Installazione con by-pass / Instalación
con by-pass / Installatie met by-pass / Baypas ile kurulum / Instalação com by-pass / Instalace s obtokem
Annex 6: Installation without by pass / Installation sans bipasse / Installation ohne Bypass / Installazione senza by-pass /
Instalación sin by- pass / Installatie zonder by-pass / Baypas’sız kurulum / Instalação sem by-pass / Instalace bez obtoku
Annex 7: Pete´s plug option / Option Pete´s plug / Pete´s Steckeroption / Opzione “Pete’s Plug” / Pete’s plug optie / Pete’s
plug opsiyonu / Opção do Pete´s Plug / Volitelná zátka Pete‘s Plug
Cross section
1 - Cap and gasket
2 – Cap retaining strag
3 – Two self closing valves
with interaction to speed valve closure
4 – Valve body
5 – Valve retainer

ITRON Delta Series Specifications

General

Display	LCD with backlight
Operating Temperature	-10°C to +55°C
Storage Temperature	-25°C to +70°C
Current Range	5A to 100A (direct connection), higher with CTs
Frequency Range	45Hz to 65Hz
Communication Interface	RS485
