66

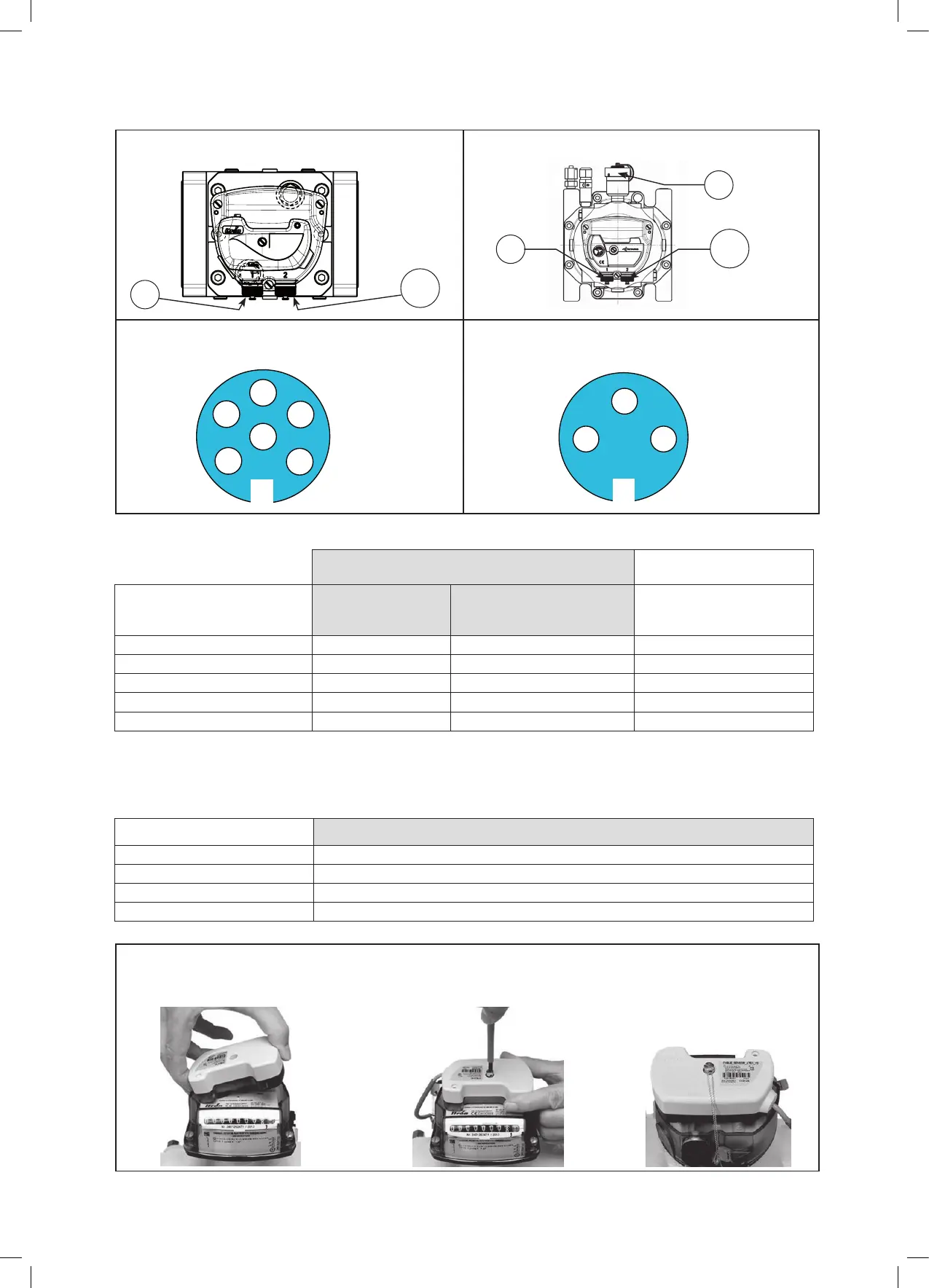

Annex 4: Transmitters / Emetteurs / Polung der Anschlüsse / Emettitori d’impulsi / Emisores / Connector aansluiting / Vericiler
/ Transmissores / Vysílače
Compact DN25/DN40/DN50 DN50/DN80/DN100/DN150
Binder plug 6 pins (LF, MF, HF) Binder plug 3 pins (HF)
(Rear view of the plug) (Rear view of the plug)
Installation of the Cyble sensor
1) Mounting 2) Screwing (Max torque: 0,25Nm) 3) Sealing
Note: For the plugging of the LF, HF and anti-tampering, please report to the name plate of the meter.
LF,
MF
LF,
HF
HF
LF
LF
Unless on the nameplate noted the following electrical parameters shall be considered:
Low Frequency Transmitter (reed contact)
High & Medium Frequency
Transmitter (inductive)
Characteristics
For Non ATEX pro-
ducts
For ATEX products **
intrinsically safe circuits EN
60079-0/-11
For ATEX products ***
intrinsically safe circuits EN
60079-0/-11
Power rating Max. 10 W Max. 120 mW Max. 64 mW
Voltage (Break-down) Max. 180 V dc Max. 15 V dc Max. 15 V dc
Current (Switching) Max. 50 mA Max. 50 mA Max. 50 mA
Capacitance and Inductance C=0F, L=0H C=0F, L=0H
C= 90ƞF, L = 250 µH
Operation temperature range -30°C to +60°C -30°C to +60°C -30°C to +60°C
** Following recommend values Low Frequency Pulse Transmitters do not have any potential sources of ignition and shall
be not marked according to directive 2014/34/EU.
The device is free to be used in ATEX area as it is a simple apparatus as defined in EN 60079-11 §5.7.
*** Proximity detectors conform to EN60947-5-6 (NAMUR) standard.
Characteristics Low Frequency Transmitter (Cyble Module)
Contact power rating Max. 1 W
Voltage (Break-down) Max. 14.3 V dc
Current (Switching) Max. 50 mA
Operation temperature range -25°C to +55°C
1
5
4
3
2
6
13
2
