ITRON Delta Series User Manual

65
Annex 3: Lubricant filling / Remplissage du lubrifiant / Schmiermittelbefüllung / Carica del lubrificante / Llenado del lubrificante
/ Vulpluggen / Yağın doldurulması / Enchimento com lubrificante / Plnění maziva
F: Filling / Remplissage / Füllen / Riempimento / Relleno / Vullen / Doldurumu
L: Level / Niveau / Pegel / Livello / Nivel / Niveau plug / Seviye
D: Draining / Vidange / Ablassen / Svuotamento / Vaciar / Aftap / Drenaj

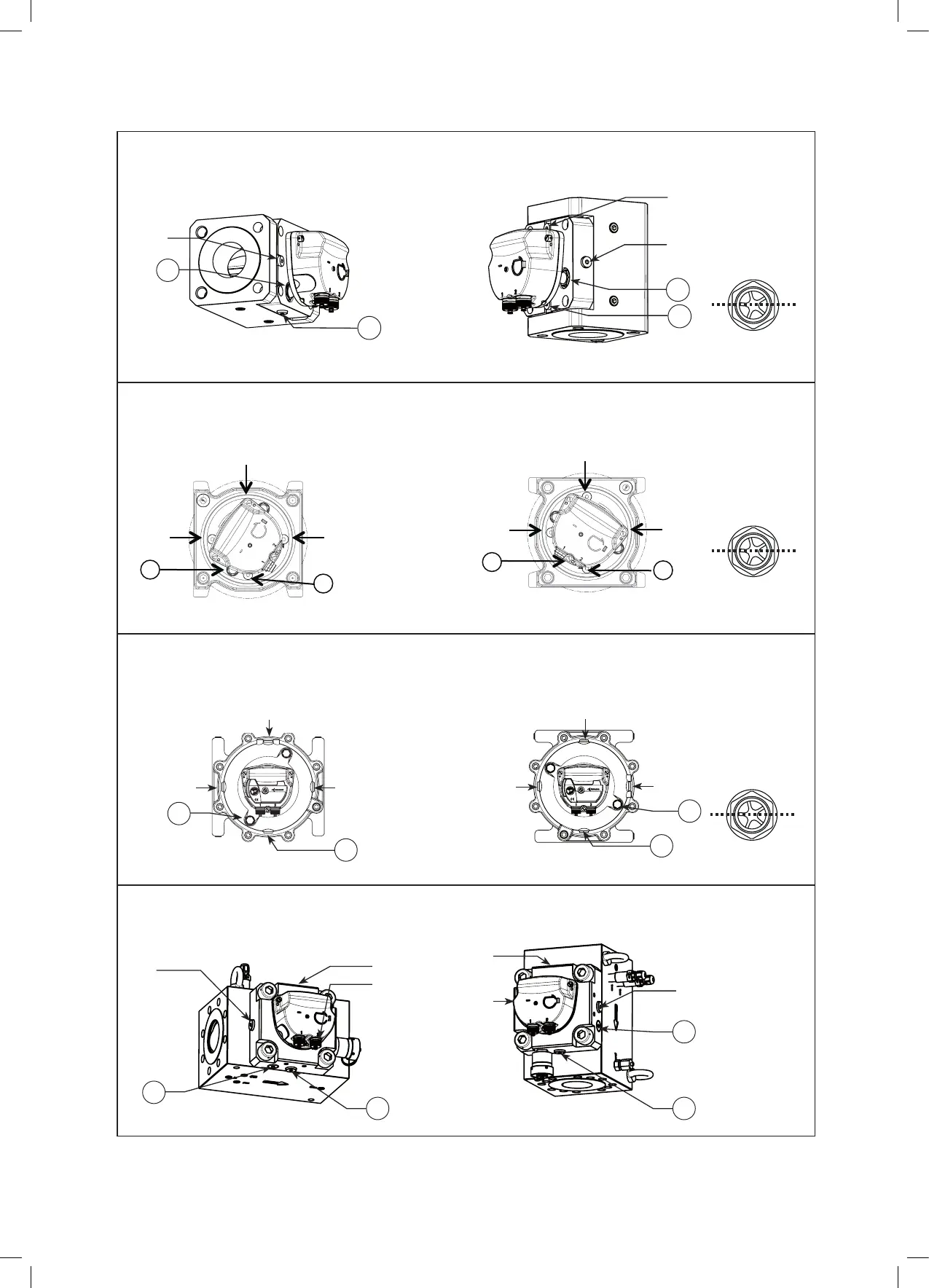

Steel range DN50 S1-Flow
Oil level is cor-
rect when oil
flows out of the
level point “L”
Vertical gas flow
Horizontal gas flow
L
F
F
F
L
DD
F
F
F
Aluminium DN80/DN100 & Ductile Iron DN80/DN100/DN150
Correct oil level
Vertical gas flow
Horizontal gas flow
F
F
F
D
L
F
F
F
D
L
Compact DN25/DN40/DN50
Vertical gas flow
Correct oil level
Horizontal gas flow
F
F
F
L
D
D
L
SE DN50/DN80 & Evo DN50/DN80/DN100
Vertical gas flow
Correct oil level

Aluminium……DN50/DN80
Horizontalgasflow
Verticalgasflow
F
F
F
F
F
F
D
D
L
L

Aluminium……DN50/DN80
Horizontalgasflow
Verticalgasflow
F
F
F
F
F
F
D
D
L
L
Horizontal gas flow
