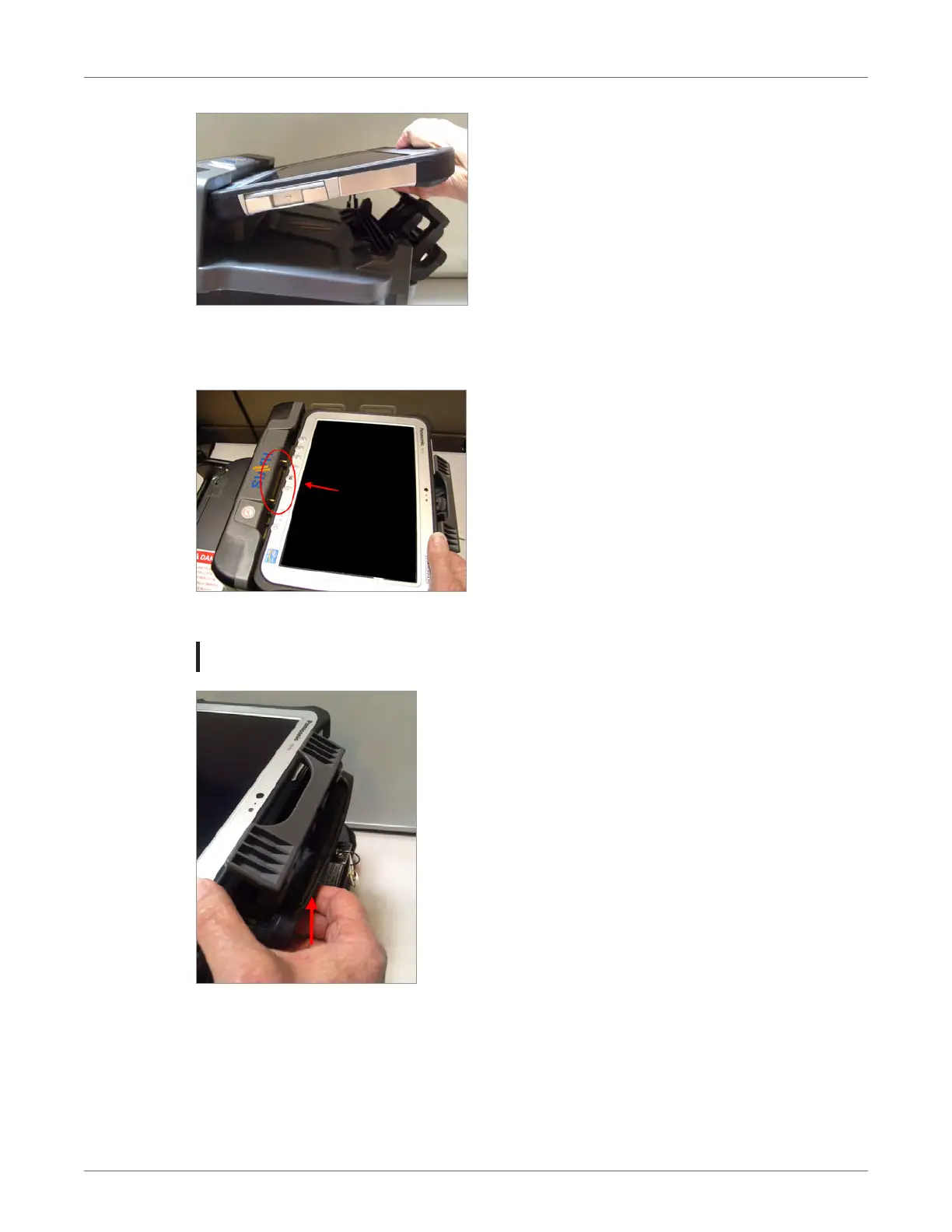

3. Gently push the tablet into the dock's connector and ground pins. Slowly lower the tablet to
the dock ensuring that the tablet's connectors and the dock's connectors are aligned.
4. Once seated, pull the latch handle up until it snaps in place over the front of the tablet.
Note: The latch handle moves the latch hook into place over the front of the tablet.
5. When the latch hook is on the top of the tablet, the tablet is now securely latched to the dock.
