Tilt
■

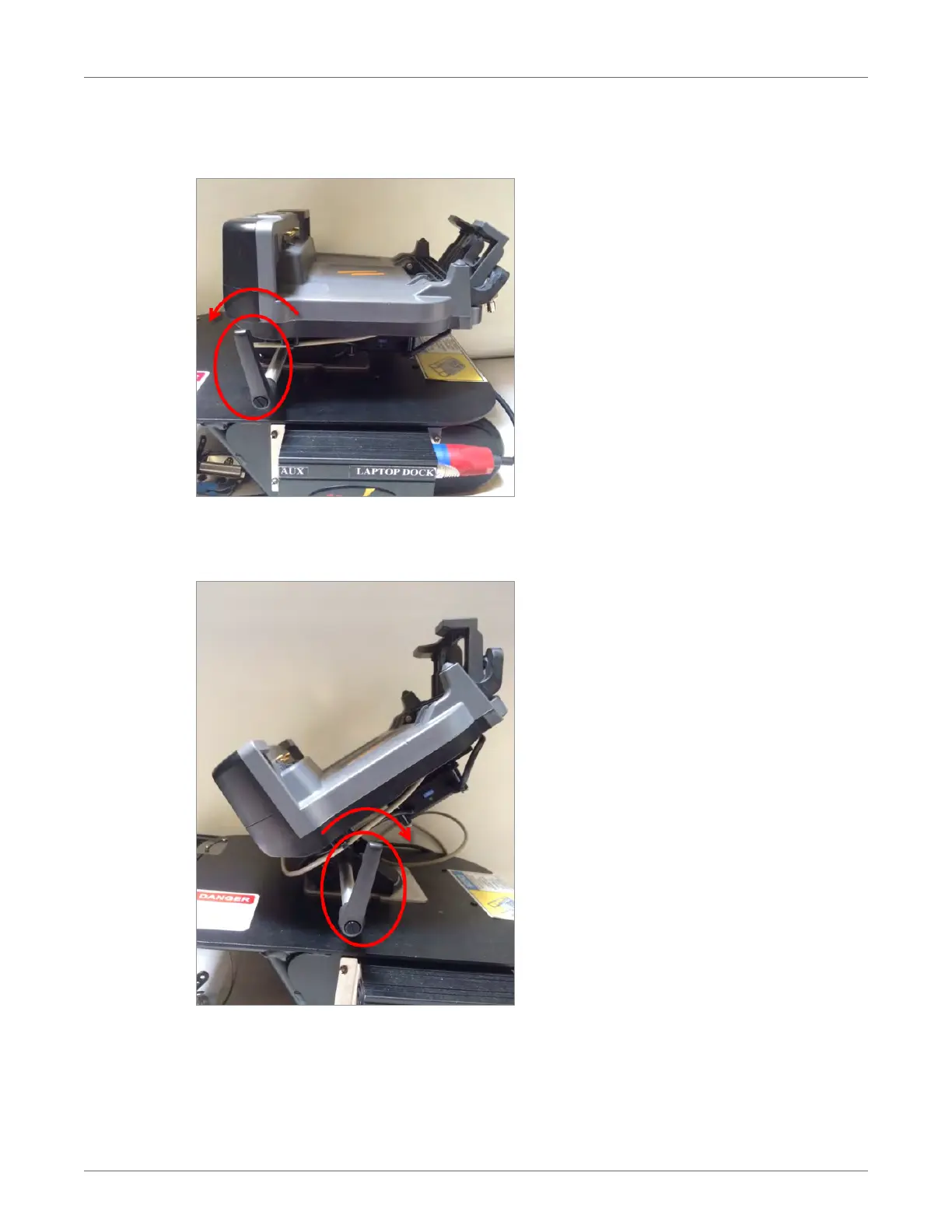

Rotate the tilt handle towards the bottom end of the sled to loosen the tablet dock.
■
Tilt the tablet dock to the desired position. Rotate the tilt handle towards the top end of the
sled to tighten the tablet dock in the desired position.
Swivel
When the sled and tablet dock are in a vehicle, the tablet dock can only swivel towards the driver,
up to 90 degrees. The swivel hardware is located where the tablet dock attaches to the sled (see
the following illustration).
07 May 2020 815-0207-00 REV 000 Itron, Inc. Page 26 of 44
Vehicle Preparation and Hardware Installation Guide 3 Installing Mobile Collection Components
