This document describes the ITSU IS0601 foot massager, a device designed for personal use to provide EMS (Electrical Muscle Stimulation) and oscillation massage.

Function Description

The ITSU IS0601 is a foot massager that combines EMS and oscillation functions to provide a comprehensive massage experience. It features a main unit with a standing mat made from conductive carbon material and a remote controller for easy operation. The device offers three auto modes (Mode A: Soft EMS, Mode B: Strong EMS, Mode C: Just Oscillation) and manual control for both oscillation (100 levels) and EMS (50 levels). The mode display panel on the main unit shows the selected mode, output, and estimated calorie consumption. The device is also equipped with elastic bands that can be connected to the main unit, allowing users to exercise their upper body simultaneously while using the massager.

Important Technical Specifications

Voltage: 220-240Vac, 50/60Hz
Rated Power: 200W
Model: IS0601
Size: W430mm × D290mm × H130mm
Weight: Approx 8.3kg
Remote Control Power Supply: CR2025 lithium battery
Material:
- Body: ABS resin, PVC resin, rubber
- Remote Control: ABS resin, PVC resin
- Special Mat: TPE
Maximum Adaptive Weight: 100 kg
Automatic Stop: Approximately 10 minutes for all modes.

Usage Features

The ITSU IS0601 is designed for ease of use with a clear operation guide.

Connection: Connect the power cord to the host and insert it into the power cord socket on the side.
Power On: Turn on the main power switch of the host to the "I" side, which will be accompanied by a beep.
Remote Control Preparation: Before using the remote controller, remove the insulation sheet and tear off the protective film.
Starting Operation: Press the power button on the remote control to turn on the power. Note that turning on the main unit's power switch alone is not sufficient; the power button on the remote control must also be pressed.
Program Selection: Users can start a program by simply pressing any mode button (Mode A, B, or C) on the remote control. EMS/manual vibration mode starts at running speed 1.
Adjusting Intensity: Oscillation has 100 levels, and EMS has 50 levels, which can be adjusted using the speed setting buttons (+10, +1, -10, -1) on the remote.
Pausing/Resuming: The operation can be paused or resumed by pressing the pause button on the remote control.
Changing Programs: During operation, users can switch between programs by pressing any mode button.
Emergency Stop: The device can be stopped urgently by pressing the power button on the remote control.
Finishing Operation: To stop the operation, press the power button, then turn off the main power switch on the host to the "O" side, and unplug the power cord.
Resistance Bands: The device includes elastic bands that can be connected to the band connection plates on the back of the main unit. This allows for upper body exercises while using the massager. Users should ensure the power is off when connecting the bands and avoid pushing or pulling too hard.
Posture Guidance: The manual provides various postures for different areas of the body, including basic standing, bending knees for more load, opening posture outwards for abdominal focus, sitting on the board for abs and waist, placing legs straight for thigh/calf, lying on back for calf, dropping waist for thigh, sitting upright on a chair for waist/spine/hip (using EMS mode in a buttock-tight state), and placing knees on the floor for upper arm exercises. It also illustrates how to use the e-bands for upper arm tightening.
Safety Precautions:
- Do not fall asleep or use after drinking alcohol.
- Suggested usage time is 20 minutes, with a 30-minute rest before reuse.
- Stop immediately if feeling unwell or sick.
- Do not insert hands into the product's side spaces during use.
- Children should be supervised.
- Use caution as some parts may have sharp edges.
- The product is intended for one person at a time.
- Tiny black powder residue from the conductive carbon mat is normal.
- Do not use near heating areas, if experiencing heart diseases, malignant tumors, back pain, spine disorders, osteoporosis, high blood pressure, knee joint degeneration, if pregnant or menstruating, or if feeling unwell with fever, inflammation, bruises, or sensory impairment.
- Unplug during power outages.
- Contact service if the product functions abnormally.

Maintenance Features

Storage: If stored in a cold place, wait one hour before use. Avoid placing in salty or sulfurous areas without protection.
Cleaning: Always unplug before cleaning. Use a dry, soft cloth. For serious dirt, use a diluted neutral detergent on a rough cloth, wring it out, wipe, and then wipe with a dry cloth. Do not use thinner, benzene, alcohol, or other organic solvents, as they may cause fading, corrosion, or cracking. Do not clean the remote control with a wet cloth.
Environment: Do not place near heaters, heat sources, or direct sunlight. Store in a clean, dry environment if not used for a long time.
Food/Drink: Do not eat or drink on the product to prevent malfunction.
Storage Environment: Temperature -10℃~55℃, Humidity RH0~85%.
Storage Location: Store in a horizontal and stable, ventilated area, within the specified temperature and humidity range. Avoid direct sunlight, dusty areas, places with rapid temperature changes, drastic humidity changes, near fire, easily wet areas, volatile substances, close to cooling/heating equipment, or vibrating areas.
Safety: Do not use on infants or individuals who cannot express their intentions, and keep out of reach of children to prevent accidents or poor health.

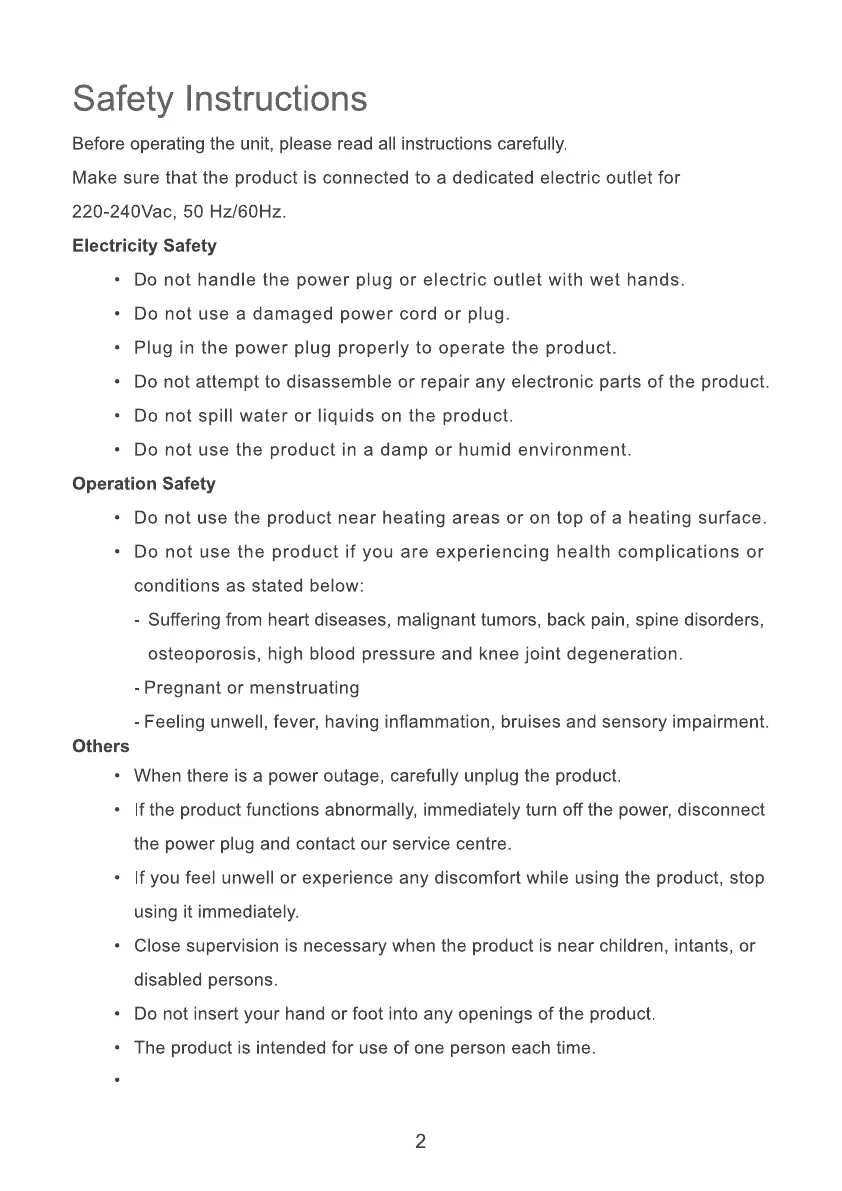

ITSU IS0601 - Safety Instructions
