USER MANUAL SPIKA
6
MODULAR MODELS
5.-WATER SUPPLY
The quality of the water supplied to the ice machine will have an impact on the time between cleanings and ultimately on the life of the product (mainly in water cooled
units). It also will have a remarkable influence on the appearance, hardness and flavour of the ice.
Local water conditions may require treatment of the water to inhibit scale formation, improve taste and clarity. If you are installing a water filter system, refer to the
installation instructions supplied with the filter system.
Use a flexible food grade hose.
Pressure should be between 14 and 85 psi (0,1 MPa and 0,6 MPa or 1 and 6 bar). If pressure overpasses such values, install a pressure regulator.
ATTENTION: The machine is equipped with adequate backflow protection according to applicable Federal State and local regulations.
6.-DRAINAGE

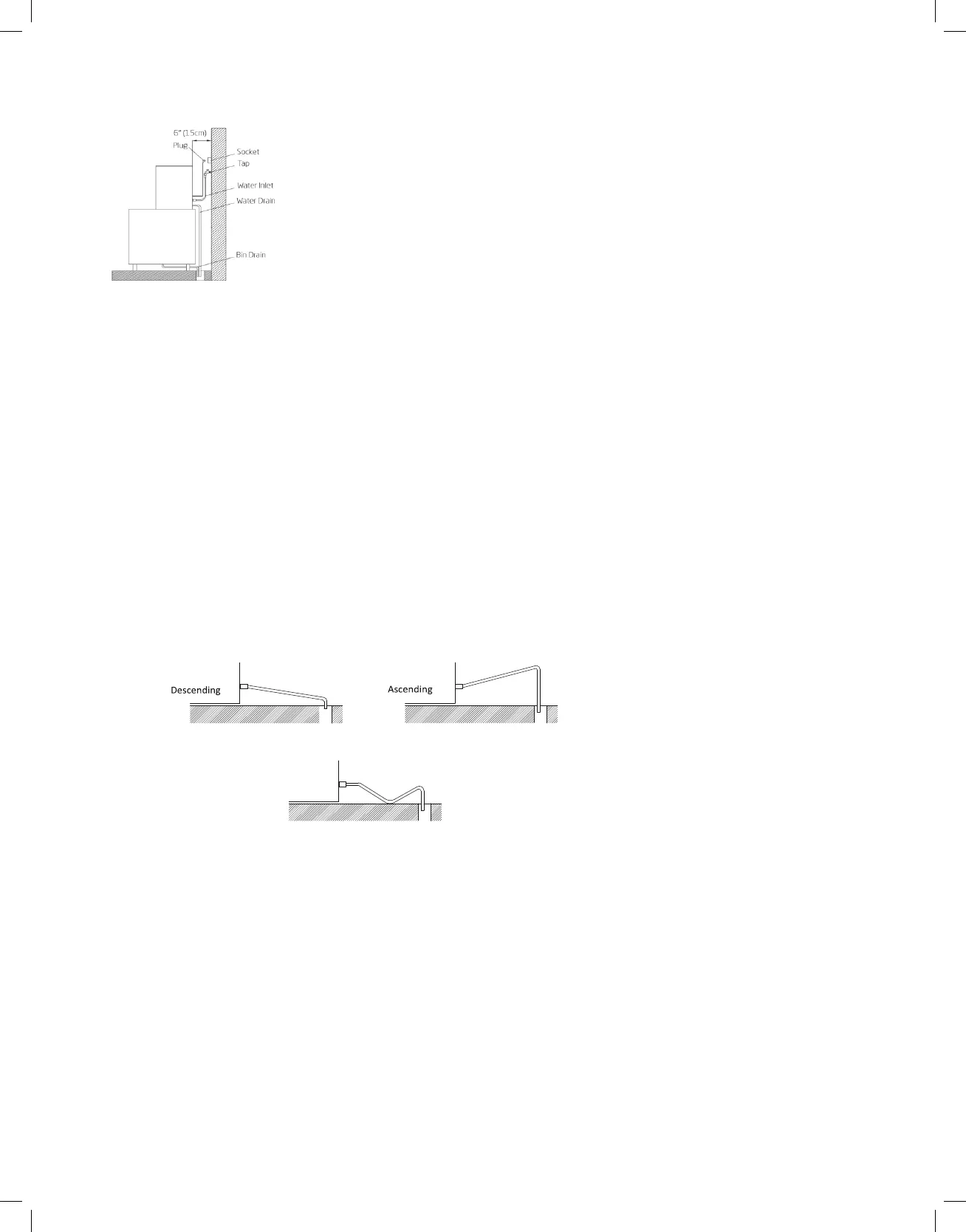

Drainage should be located below the level of the machine, at 5,9’’ (150 mm) minimum.
It is convenient that the drainage pipe is 1,18’’ (30 mm) inside diameter and with a minimum gradient of 0,36’’/ft (3 cm/ meter), see figure.
CORRECT INCORRECT
INCORRECT
7.-ELECTRICAL CONNECTION
IT IS MANDATORY TO GROUND THE EQUIPMENT: To avoid possible discharges on individuals or damages to the equipment, the machine should be grounded following
local and/or national regulations as needed. THE MANUFACTURER SHALL BE HELD HARMLESS IN CASE OF DAMAGES ARISING DUE TO THE LACK OF THE GROUND
INSTALLATION.
In case the supply cable is damaged, it should be replaced by a cable of special assembly to be furnished by the manufacturer or after-sales service. Such replacement
should be performed by qualified technical service only. The machine should be placed in such a way that allows a minimum space between the back and the wall to
allow an easy access and without risks to the cable plug.
Mind the socket. It is convenient to install adequate switches and fuses.
Voltage is indicated in the nameplate and on the technical specifications of this manual. Variation on voltage above the 10% stated on the nameplate could result on
damages or prevent the machine start-up.
