APPENDIX A - DAILY PASSENGER TRANSPORT
D
AILY
Base - 02/2012 Printed 603.95.241
Bodybuilder connectors
After discon n ec t in g t he loads, to restore the vehicle to its original con ditions:
- press t he cent ral emergency control again;
- open the bonnet and press the yellow button on the CBA to reset to the disconnector;
- Turn the key to STOP;
- re-start the vehicle.
Bodybui l der con nector s
A.6 Bodybuilder connectors
For information regarding the 20 PIN connector (61071) please refer to Section 5.NOTE
12 PIN connector (72068) for People Carrier

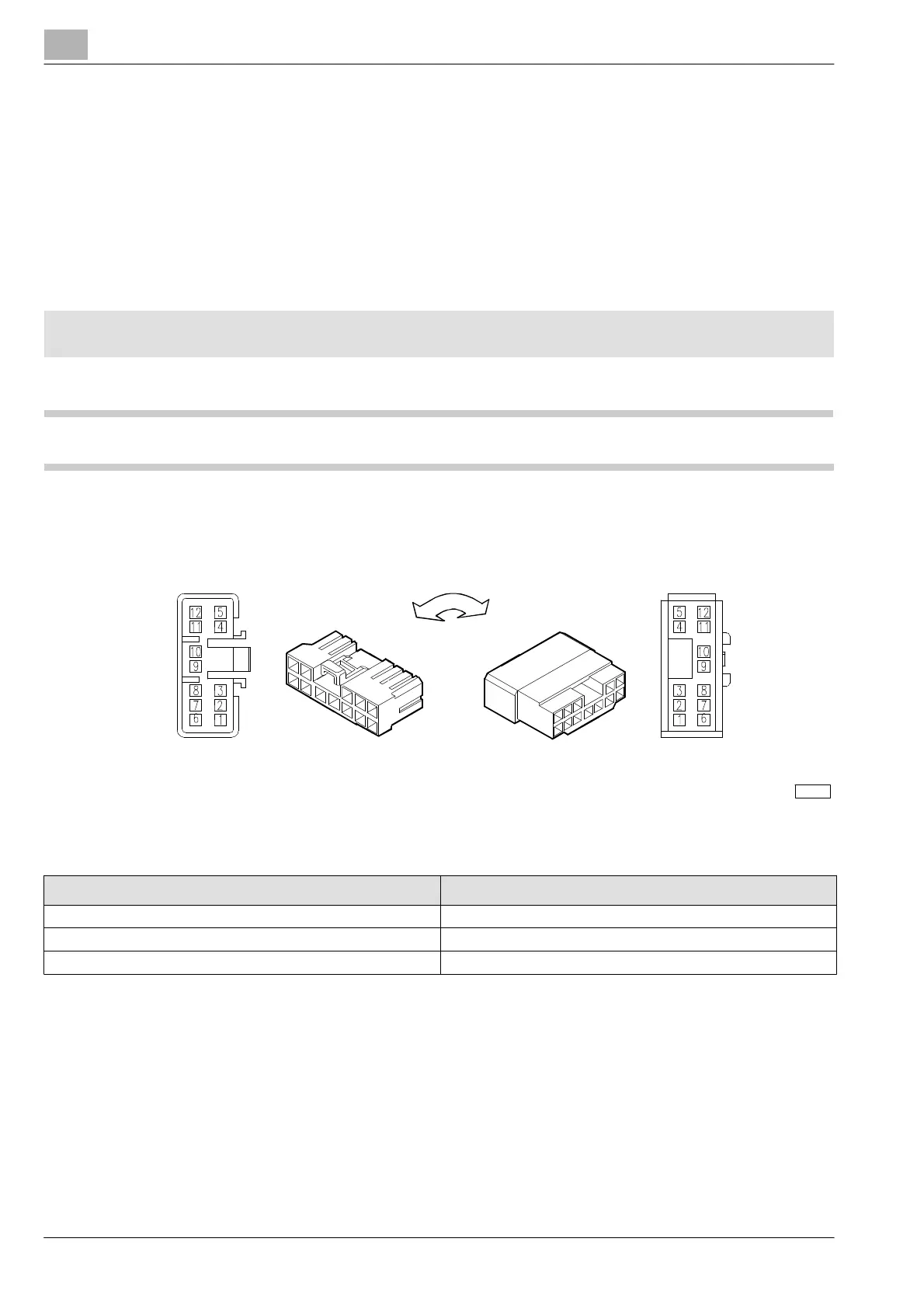

Figure A.6
Counterpart to be connected
Existing parts on the vehicle
101554
Table A.3
Code number Description
500314814 12-way male holder joint
500314820 Male contac t for 0.3 to 0.5 mm
2
cable
500314821 Male contact for 1 to 1.5 mm
2
cable
