iXBlue EOM - Page 17

EOMs Operating Manual
Ref. Ed. 0 – 08/02/2021 17

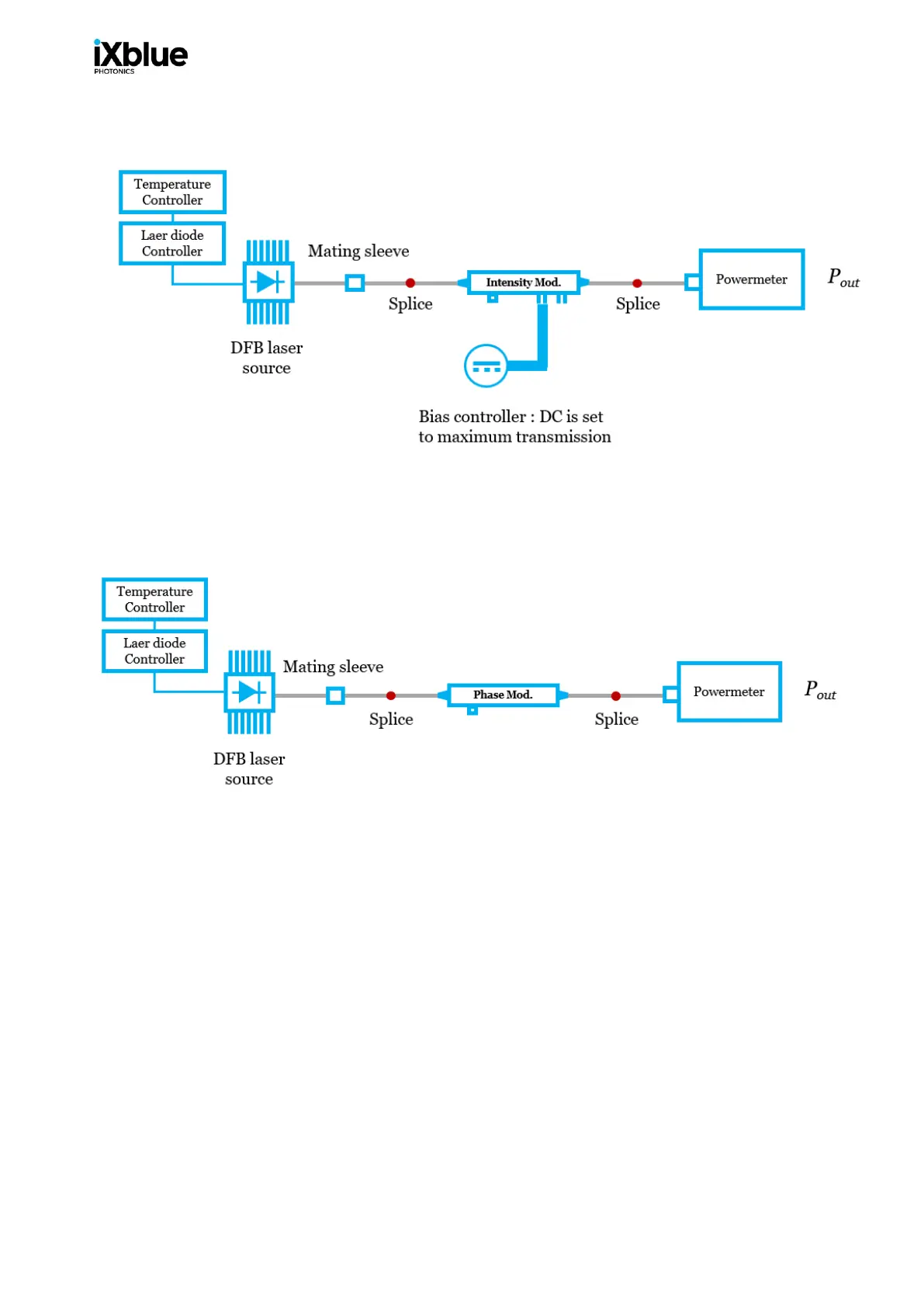

3.1.2.2 Intensity EOM max transmission measurement (P
out
):
Fig. 24
3.1.2.3 Phase EOM transmission measurement (P
out
):
Fig. 25
Cut-back advantage: avoid uncertainty induced by optical connectors & mating sleeves (but still
includes splices losses, ≈ 0.01 dB per splice).
