EOMs Operating Manual
Ref. Ed. 0 – 08/02/2021 19

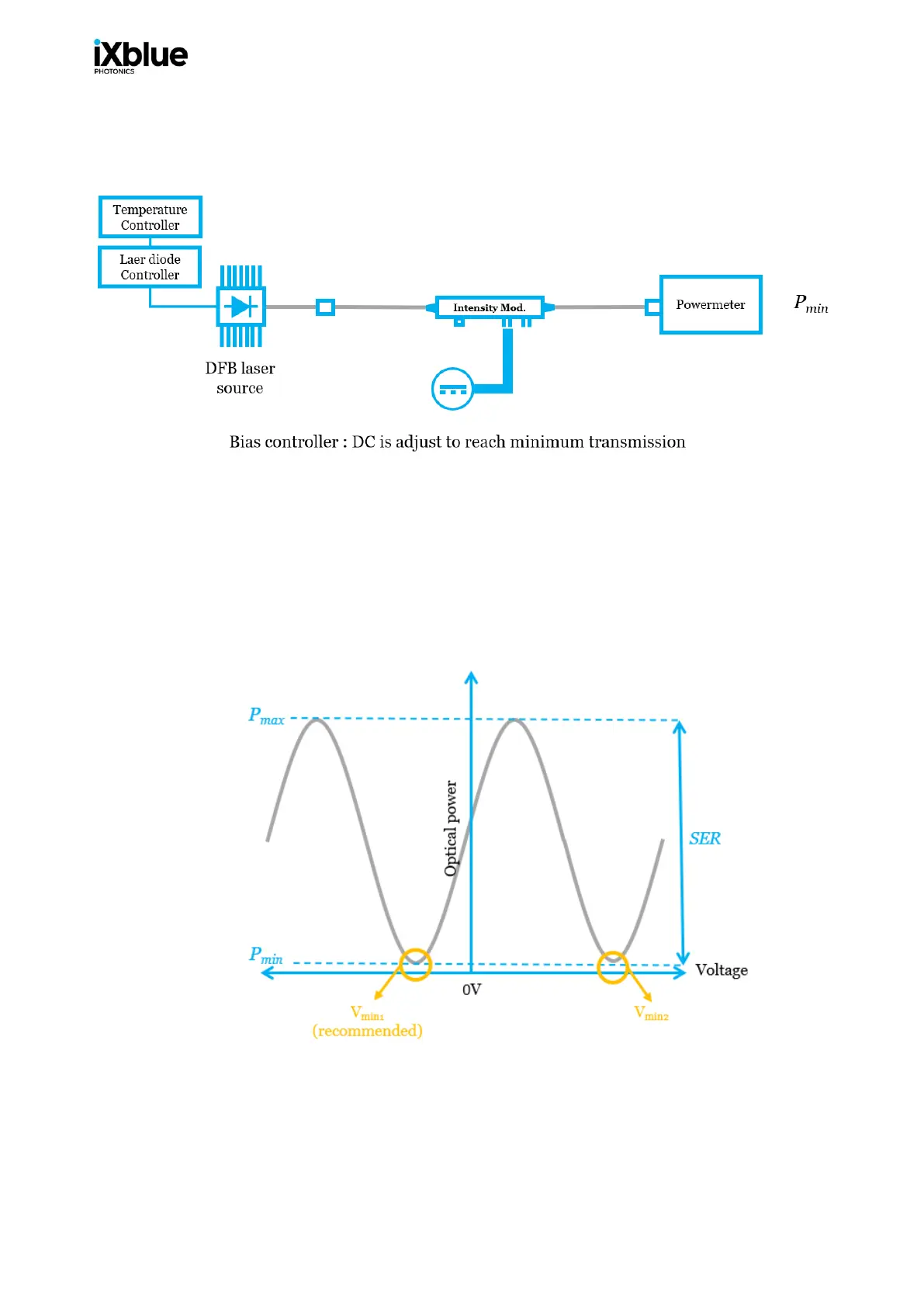

3.2.2 EOM MINIMUM TRANSMISSION MEASUREMENT (P
MIN
):
Fig. 28
Note: The DC voltage applied to adjust Pmin can be positive or negative. We recommend selecting
the voltage corresponding to Pmin that is closest to zero in order to minimize DC-drift.
Intensity Modulator Transfer Function
Fig. 29
