2.3 Hardware overview
The IXrouter3 is created with performance and a multitude of hardware capabilities in mind.

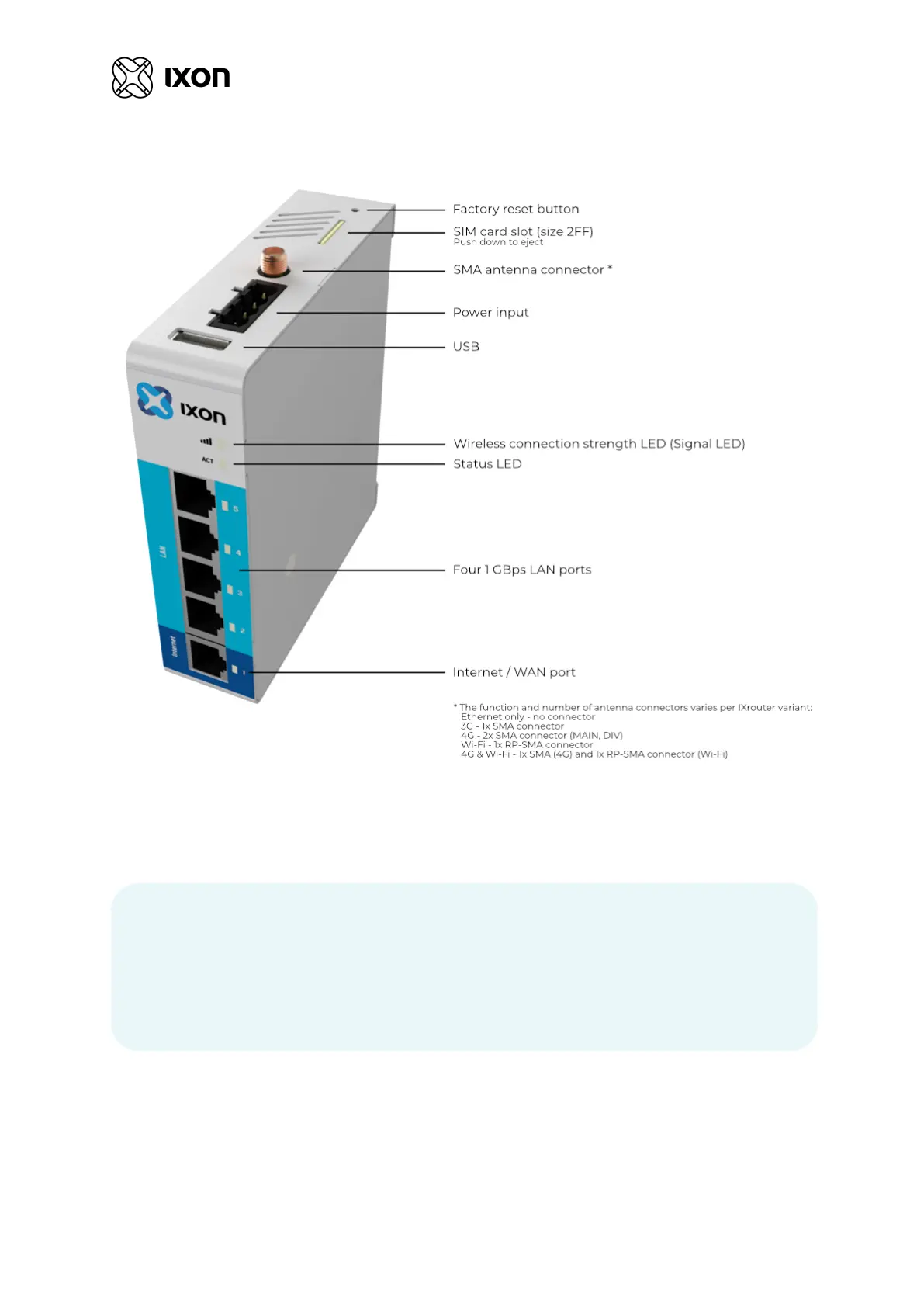

Figure 1: Hardware overview
SMA Connectors
IXrouter 3 4G and 4G & Wi-Fi variants have two SMA antenna connectors. They are structured according
to the following order:
• 4G: The MAIN connector is closest to the power connector, the other connector is DIV. Always
connect one antenna to the MAIN connector, the DIV connector is optional.
• 4G & Wi-Fi: The 4G connector is closest to the power connector, the other connector is the Wi-Fi
connector.
