J.E. StorkAir MX 10/10 - Page 34

33
MX 10/10 (ZMV)

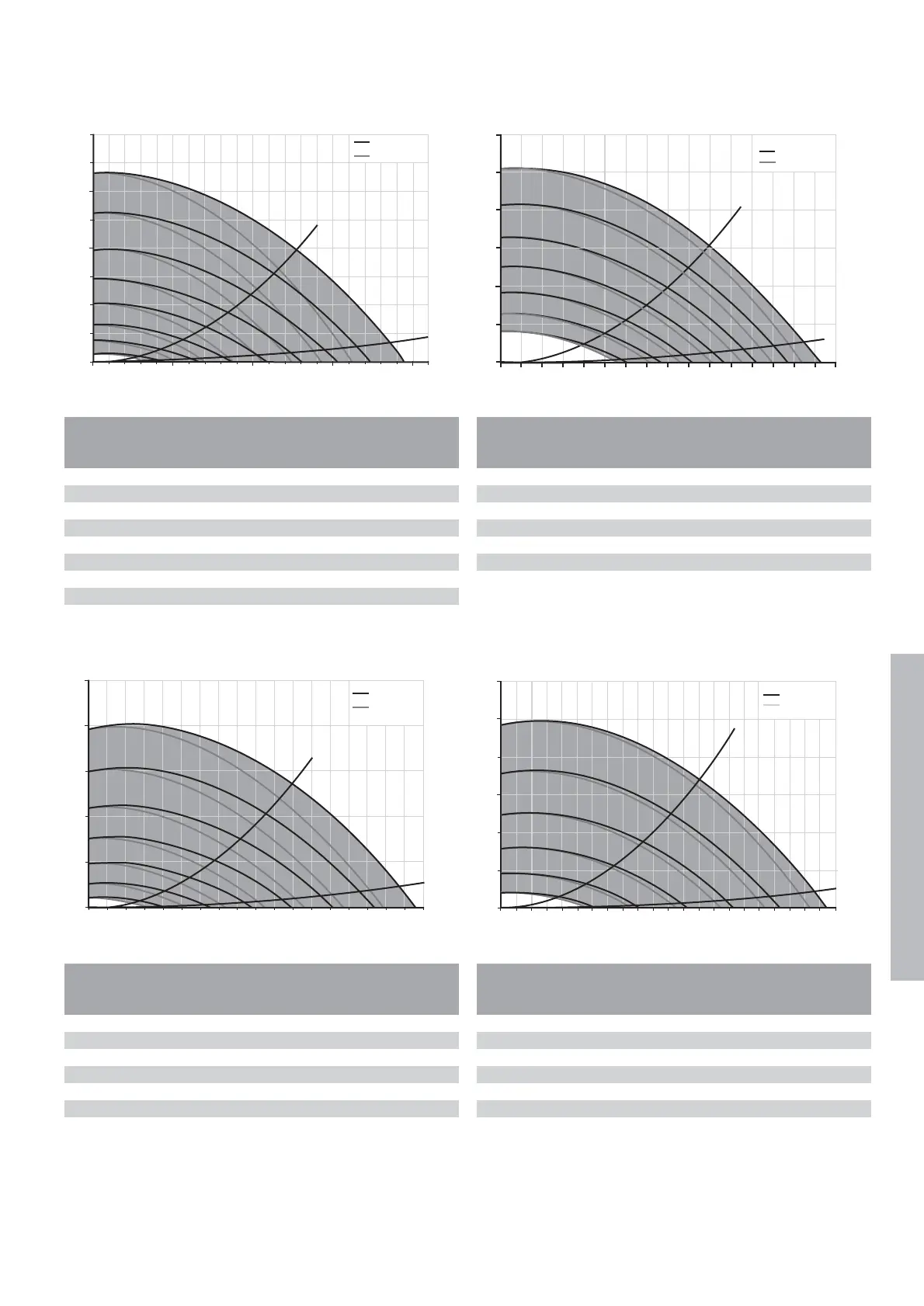

4a. A = maximum power consumption B = maximum sound pressure level
Speed Consumption Noise level
rpm current power deliv. suction suction* cos.
AWel dB(A) dB(A) dB(A) j
1800 0,76 174 57 72 63 0.99
1600 0,55 125 54 70 61 0.99
1400 0,39 87 50 66 58 0,99
1200 0,26 60 46 63 55 0,99
1000 0,17 39 41 58 51 0.99
800 0,12 27 36 56 49 0,98
600 0,09 19 30 49 42 0,92
400 0,07 12 24 41 35 0,75
MX 10 = 18kg.
MX 20/10 (ZMV)
4a. A = maximum power consumption B = maximum sound pressure level
Speed Consumption Noise level
rpm current power deliv. suction suction* cos.
AWel dB(A) dB(A) dB(A) j
1600 1,80 409 62 77 64 0.99
1400 1,16 266 58 74 62 0,99
1200 0,73 169 53 69 57 0,99
1000 0,44 100 48 65 54 0.99
800 0,25 57 42 59 49 0,99
600 0,14 31 36 55 45 0,96
400 0,09 17 28 48 39 0,82
MX 20 = 25kg.
MX 30/10 (ZMV)
4a. A = maximum power consumption B = maximum sound pressure level
Speed Consumption Noise level
rpm current power deliv. suction suction* cos.
AWel dB(A) dB(A) dB(A) j
1000 1,30 297 56 71 61 0.99
900 0,92 217 52 68 57 0.99
800 0,64 148 49 65 56 0,99
700 0,44 103 46 62 53 0,99
600 0,29 67 42 60 50 0.99
500 0,19 44 37 55 46 0,99
400 0,13 28 33 52 43 0,94
MX 30 = 32kg.
MX 30/20 (ZMV)
4a. A = maximum power consumption B = maximum sound pressure level
Speed Consumption Noise level
rpm current power deliv. suction suction* cos.
AWel dB(A) dB(A) dB(A) j
1400 3,34 761 64 78 67 0.99
1200 2,03 462 61 75 64 0,99
1000 1,18 269 57 71 60 0,99
800 0,65 147 51 66 55 0.98
600 0,32 72 44 60 49 0,98
400 0,12 28 36 51 41 0,98
MX 30/20 = 38kg.
*with silencer
600
500
400
300
200
100
0
0 1000 2000 5000
1400
1200
1000
800
600
400
m
3
/h
∆ Pst - Pa (N/m
2
)
= MX
= MX + GD
A
B
3000 4000
0 500 1000 1500 2000 2500 3000 3500
50
0
150
200
250
300
1000
900
700
500
m
3
/h
∆ Pst - Pa (N/m
2
)
A
B
800
600
100
400
= MX
= MX + GD
500
400
300
200
100
0
0 400 800 1200 1600
1600
1400
1200
1000
800
600
400
A
2000 2400 2800 3200 m
3
/h
∆ Pst - Pa (N/m
2
)
= MX
= MX + GD
B
400
350
300
250
200
150
100
50
0
0 500 1000 1500 2000
1800
1600
1400
1200
1000
800
600
400
B
m
3
/h
∆ Pst - Pa (N/m
2
)
= MX
= MX + GD
A
English
