5. Connecting and Operating
Connect the HDMI signal source (Such as DVD, STB etc.) to HDMI Transmitter.
Connect CAT5e or 6 cables to both the Ethernet of the transmitter and Ethernet port of the
Receiver. (The cables must follow the standard of EIA-TIA 568B).
Connect the HDMI display (Such as HD-LCD, HD-DLP) into the Receiver.
Connect the power supply into Power port.
Connect the IR TX receiving cables into IR TX port on the back panel and affix the emitter onto
the source IR windows.

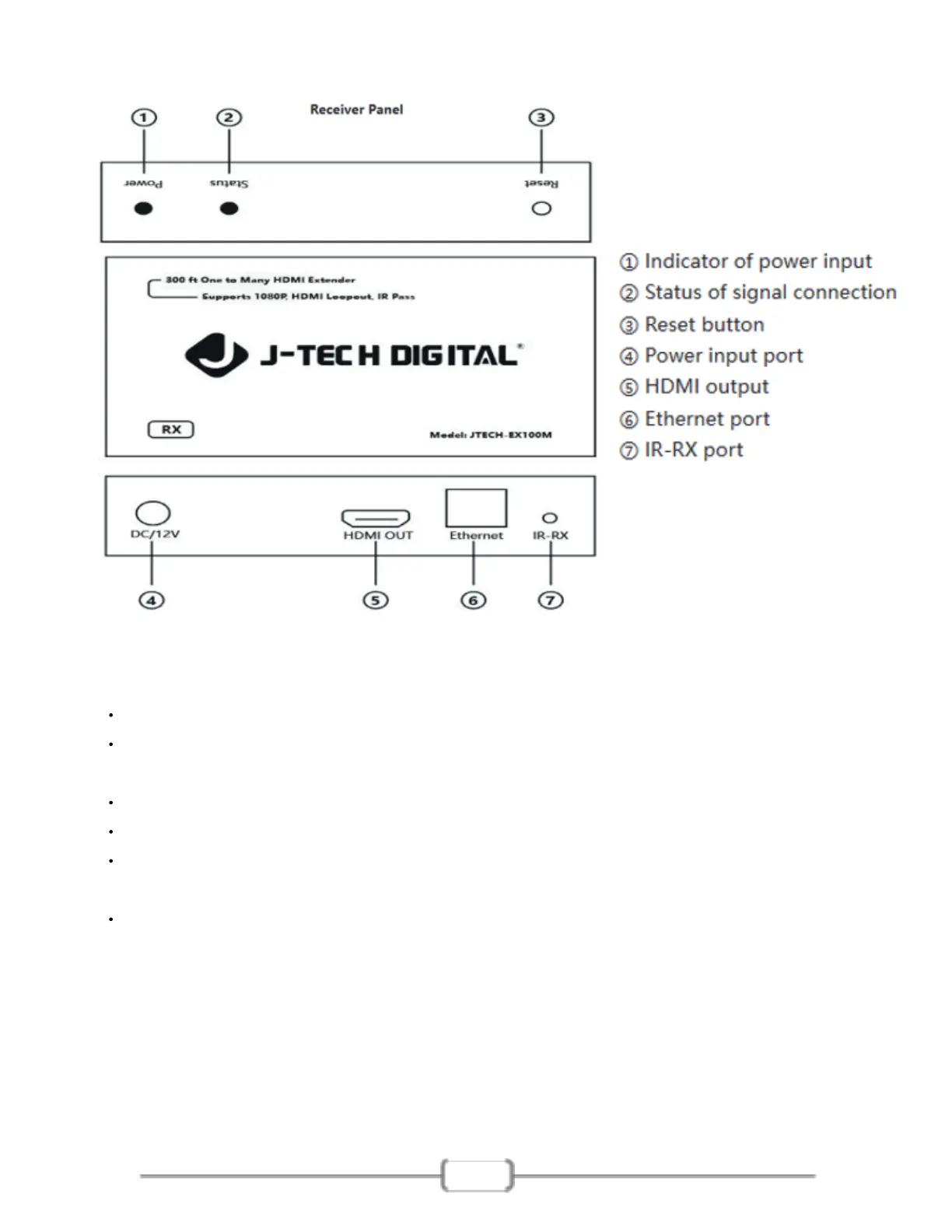

Connect IR-RX cable into IR-RX port on the receiver and affix the IR receiver in direct line of site
with the handheld remote control. It is recommended to affix the receiver on the display frame
/bezel or the display stand.
