the electrical specifications chart. Secure all wires to a
solid surface approximately every eighteen inches (1/2M)
along their entire length of run.
Wire the switch panel to the solenoid valve/siphon breaker
and toilet pump assembly as per the following wiring
diagram. Connect the brown lead from the panel to the
waste pump positive (orange) lead. Connect the black
waste pump motor lead to battery negative. Connect the
yellow lead from the panel to a solenoid valve terminal.
Connect the remaining solenoid valve terminal to battery
negative. The solenoid valve is not polarity sensitive.
Select a location for the switch panel that is convenient
to the toilet user and will also allow access to run the
wires from the switch panel to both the toilet’s motor and
the solenoid valve/siphon breaker as well as from the
electrical power source to the switch panel. To install the
ELECTRICAL SPECIFICATIONS
Amp Fuse Wire Size Per Feet Of Run*
Voltage Draw Size 0'-10' 10'-15' 15'-25' 25'-40' 40'-60'
12 Vdc 10 25 #16 #14 #12 #10 #8
24 Vdc 5 15 #16 #16 #16 #14 #12
* Length of run is total distance from power source to product and back to ground.
To Waste Pump
Positive (Orange)
Motor Lead
To Solenoid
Valve/Siphon
Breaker
To Positive

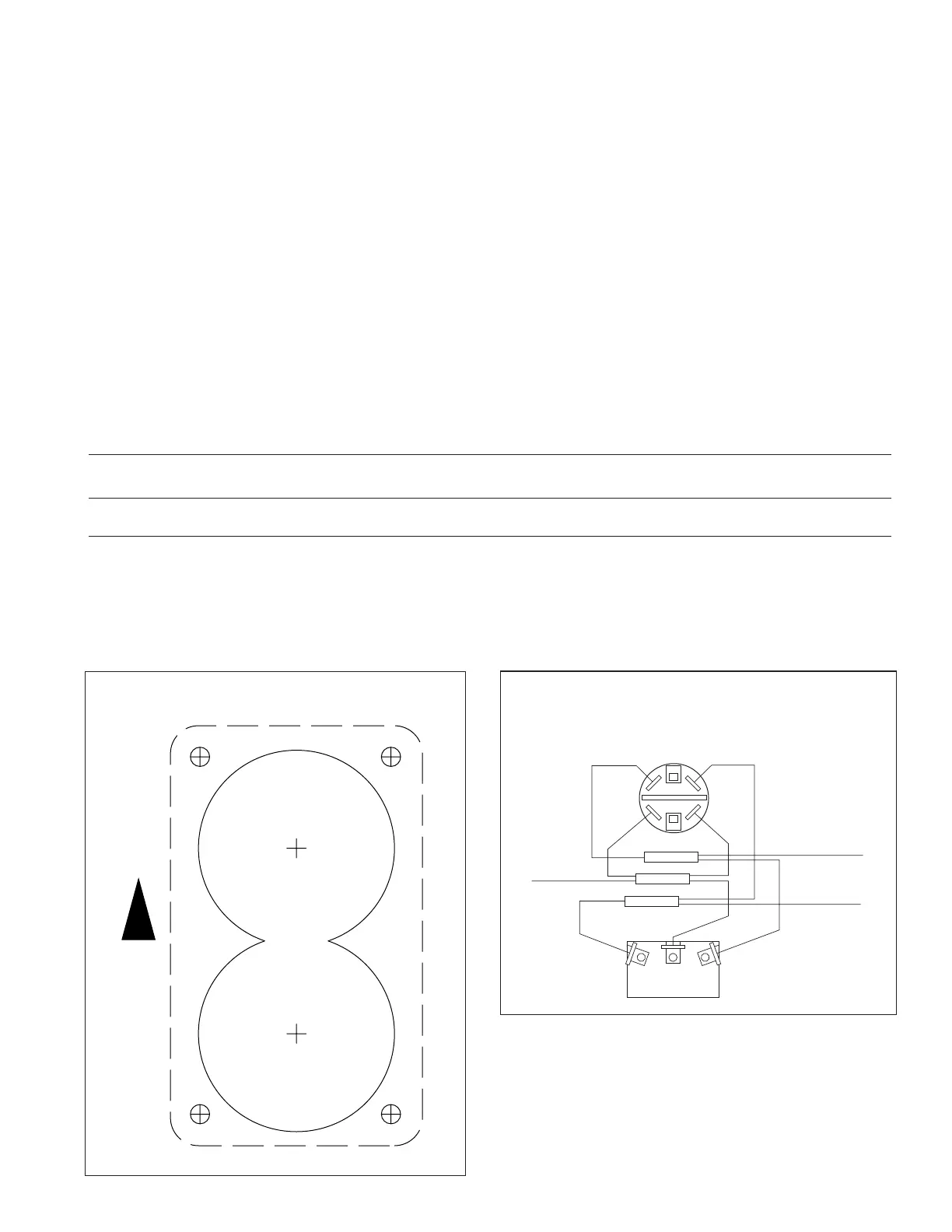

WIRING DIAGRAM
switch panel, drill two 1-3/4" (45mm) diameter holes
(slightly over-lapping) through the selected switch
mounting surface per the attached template. Ensure the
template is oriented correctly because it is not
symmetrical. Also, drill four appropriate sized holes for
the fasteners selected to secure the switch panel to its
mounting surface.
SERVICE
The Jabsco Quiet-Flush Toilet does not require routine
maintenance other than occasional cleaning to maintain
a hygienic sanitary condition. Clean toilet with mild
nonabrasive cleaners without strong aromatics.
Cleaners having high concentrations of aromatics such
as pine scented concentrated cleaners and strongly
scented degreaser concentrates can cause the pump’s
seal to swell and may contribute to a premature seal leak.
