PARTS LIST
Qty. Part
Key Description Req. Number
1 Seat & Cover, Compact Size 1 18753-0437
Seat & Cover, Household Size 1 18753-0438
2 Bowl, Compact Size 1 59127-7002
Bowl, Household Size 1 18753-0060
3 & 4 Bowl Spud & Intake Elbow 1 29048-0000
& O-ring
5 Hose, 6 feet 1 29035-1031
6Motor Cover † 1 37044-6000
7 Bowl Installation Hardware 1 18753-0637
7A Nut Cap** 4
7B Hex Nut** (Two places) 8
7C Washer, Stainless Steel** 4
7D Washer, Plastic** 4
7E Washer, Starlock** 4
7F Phillips Head Screw** 4
8 Bowl O-Ring Seal 1 44101-1000
9 Base Assembly** 1 37004-1000
10 1-1/2" Adaptor, Discharge Port 1 98023-0080
11 Joker Valve* ** 1 44106-1000
12 1" Discharge Port** 1 44107-1000
13 Screw** 3 96050-0568
14 Chopper Plate with Lock Nut † 1 37056-1000
15 Macerator Housing † 1 37014-0000
16 Centrifugal Impeller † 1 37006-0000
Qty. Part
Key Description Req. Number
17 Set Screw † 1 91084-0320
18 O-ring* † 1 43990-0066
19 Seal* † 1 1040-0000
20 Screw † 2 91010-0144
21 Washer, Plastic* † 2 35445-0000
22 Seal Housing † 1 37043-1000
23
Lock Washer #10, Stainless Steel †
4
24 Screw † 4 91027-0011
25 Slinger † 1 6342-0000
26 Motors:
Motor - 12 Volt EMC † 1 18753-0554
Motor - 24 Volt EMC † 1 18753-0555
27 Solenoid Valve & Siphon Breaker
12 Volt 1 37038-1012
28 Switch Panel 1 37047-1000
29 Screw Covers (3/kit) 1 37003-1000
Service Kit 90197-0000
Motor & Pump Assembly
12 Volt EMC 37072-0092
24 Volt EMC 37072-0094
* Parts Supplied with Service Kit.
** Parts included with base 37004-1000.
† Parts included in Motor & Pump Assembly.

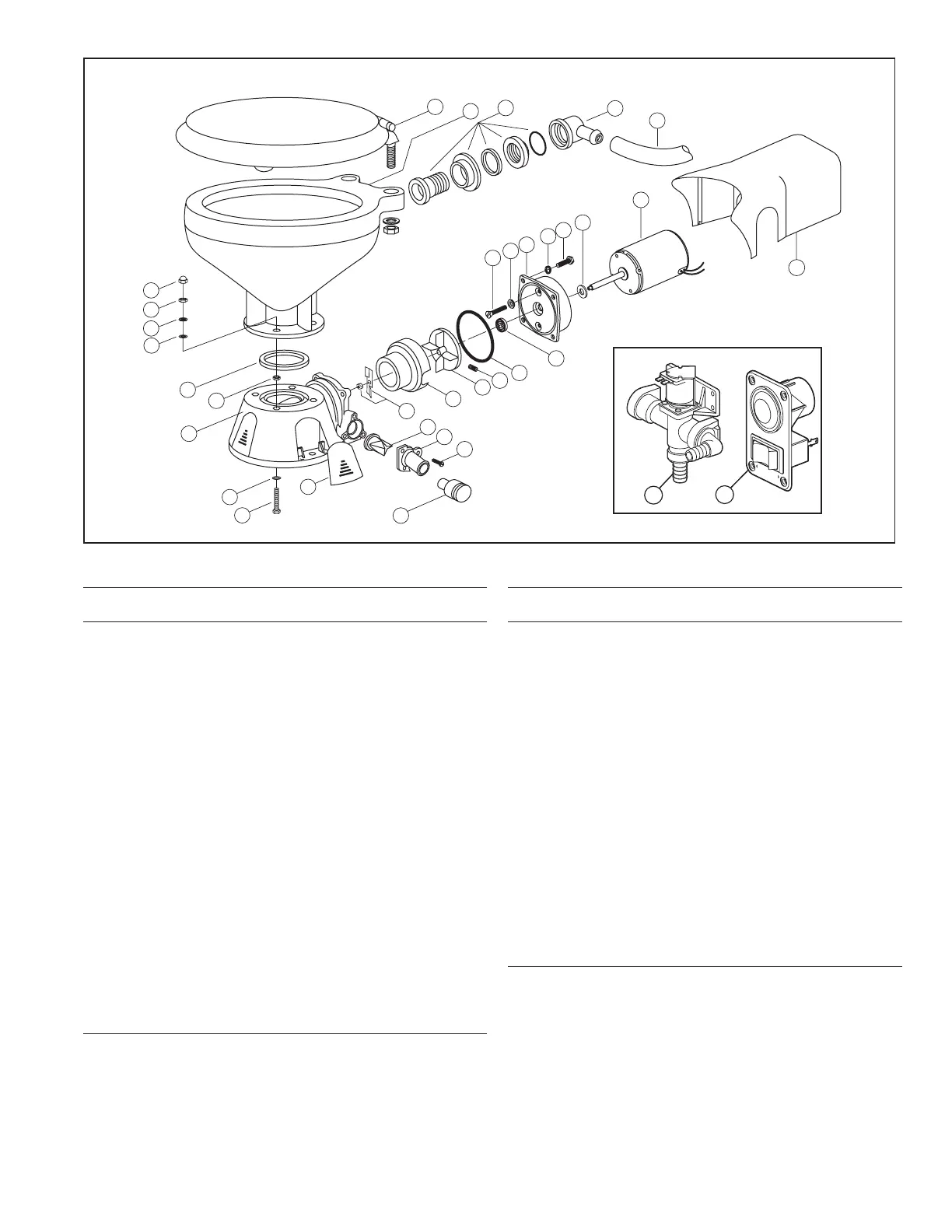

EXPLODED VIEW
