2
APPLICATIONS
You may install jabsco lite flush electrically operated
marine toilets in both power and sailing craft, either
above or below the waterline, for use on sea, river, lake
or canal.
CAUTION:
JABSCO electric toilets are designed
specifically for marine use. Consult ITT
for advice about possible non-marine
applications.
Your installation may discharge the waste either
overboard (provided that your national and local
regulations allow this), or into a treatment system or into
an on-board holding tank (u.s.c.g. marine sanitation
devices type i, ii and iii).

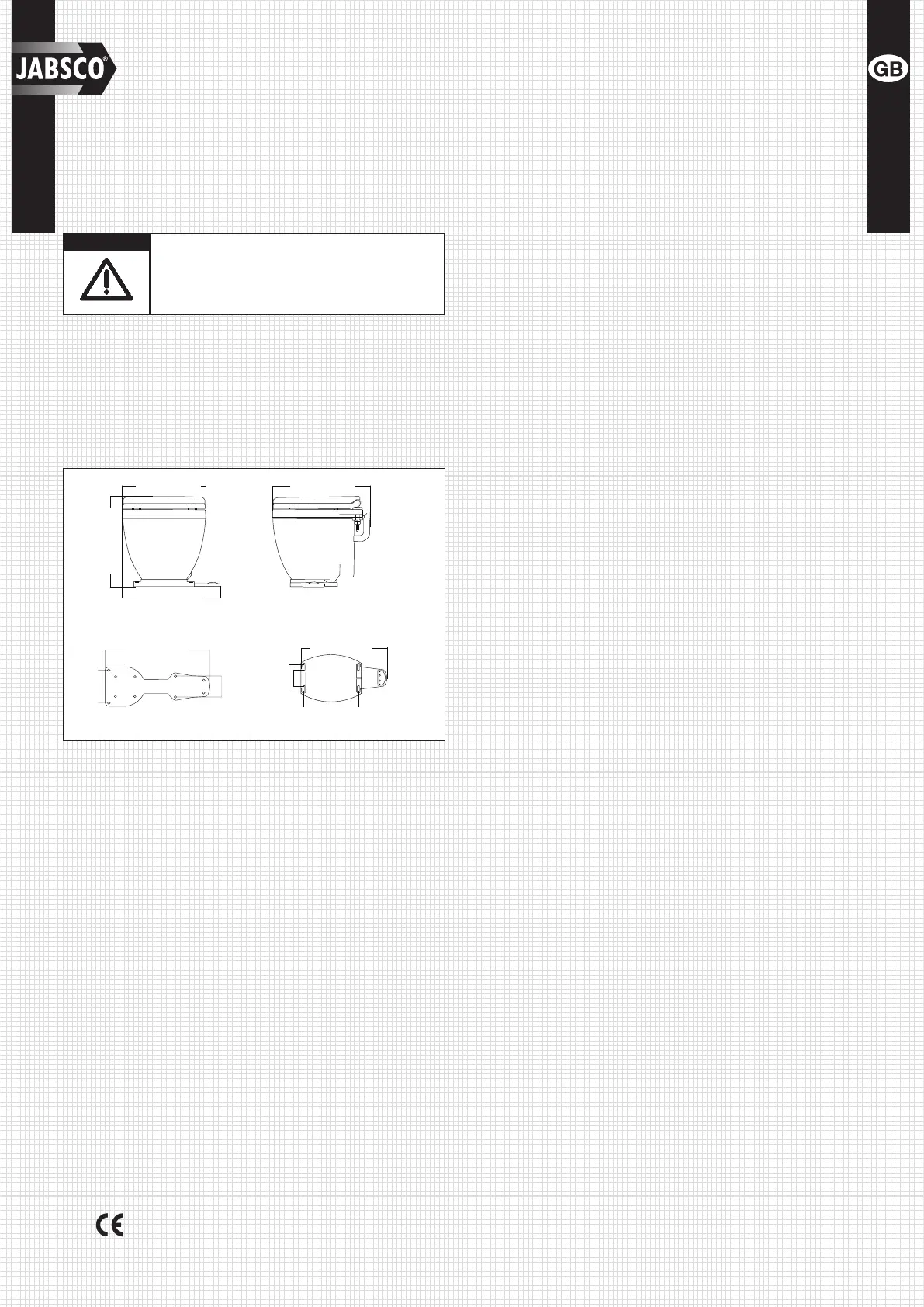

DIMENSIONS - Inches (mm)
SPECIFICATIONS
Flush pump
Internally mounted, high speed, non- clogging, •
centrifugal, waste macerating pump driven by power ful
240 watt, 12 or 24 Vdc, permanent magnet motor with
ball bearings and robust ceramic seal, discharges up
to 5ft (1.5m) above the base of the toilet.
Rinse pump
Jabsco, self-priming up to 3m (10ft), dry running, •
diaphragm water pump driven by 12 or 24 Vdc,
permanent magnet, ball bearing motor.
Foot-switch
Integral one touch 'Press and Release' switch pad, •
sealed for life.
Control Panel
One Touch 'Press and Release' switch pad, sealed •
for life, with 10ft (3m) link cable, fitted quick connector,
and heat shrink seal.
Standards
Complies with ISO8846 MARINE [Ignition protection].•
•
Ports
Raw Water Rinse pump inlet - ¾" (19mm) hose tails.•
Flush pump discharge - 1½" (38mm) hose tail.•
INSTALLATION INSTRUCTIONS
YOUR TOILET is just one part of a system.
Correct installation of the whole system is
essential if you want the toilet to perform
properly, operate reliably and safely, and
give satisfactory length of life.
The Lite Flush Toilet Foot switch and discharge •
hose positions may be adapted to replace either a
left hand or right hand manual toilet.
The seat and lid are delivered boxed and unfitted for •
their protection.
Key numbers eg. (key 31) are references to the •
exploded diagram on the back page.
Location
Select a location that will give sufficient clearance all •
round and above the bowl.
The mounting surface must be flat, rigid and strong •
enough to support a man's weight and should be at
least 2" (50mm) wider and 2" (50mm) deeper than
the base of the toilet.
You will need sufficient clearance below the mounting •
surface to be able to secure the mounting bolts, and
to be able to remove them for maintenance.
Mounting
YOU WILL need:
4 stainless steel bolts of length to suit the thickness •
of the mounting surface.
4 stainless steel nuts, preferably self-locking. If you •
do not use self-locking nuts you will need some nut-
locking compound.
Offer up the toilet in the selected position and, using •
the holes in the base as a guide, mark the positions
for the 4 bolt holes on the mounting surface.
Now complete all of the rest of the installation
before you secure the bowl.
Through Hull Fittings
YOU MAY need:
¾" (19mm) x ¾" (19mm) elbow with hose tails for •
the rinse inlet
¾" (19mm) bore seacock for the Rinse pump and, if •
you are discharging the waste overboard, a 1½"
(38mm) bore seacock for the waste outlet.
Follow the seacock manufacturer's own instructions •
concerning materials and methods of installation.
Ensure the inlet seacock is positioned where it will be •
below the waterline at all times when the craft is
underway, and also ensure that any other outlet seacock
is both aft of, and higher than, the inlet seacock.
342 mm (13½”)
401 mm (15¾”)
373 mm (14¾”)
355 mm (14”)
355 mm (14”)
225 mm (8¾”)
110 mm (4¼”)
110 mm (4¼”)
70mm (2¾”)
Footprint
70mm
(2¾”)
Manual
Lite Flush
402mm (15¾”)
