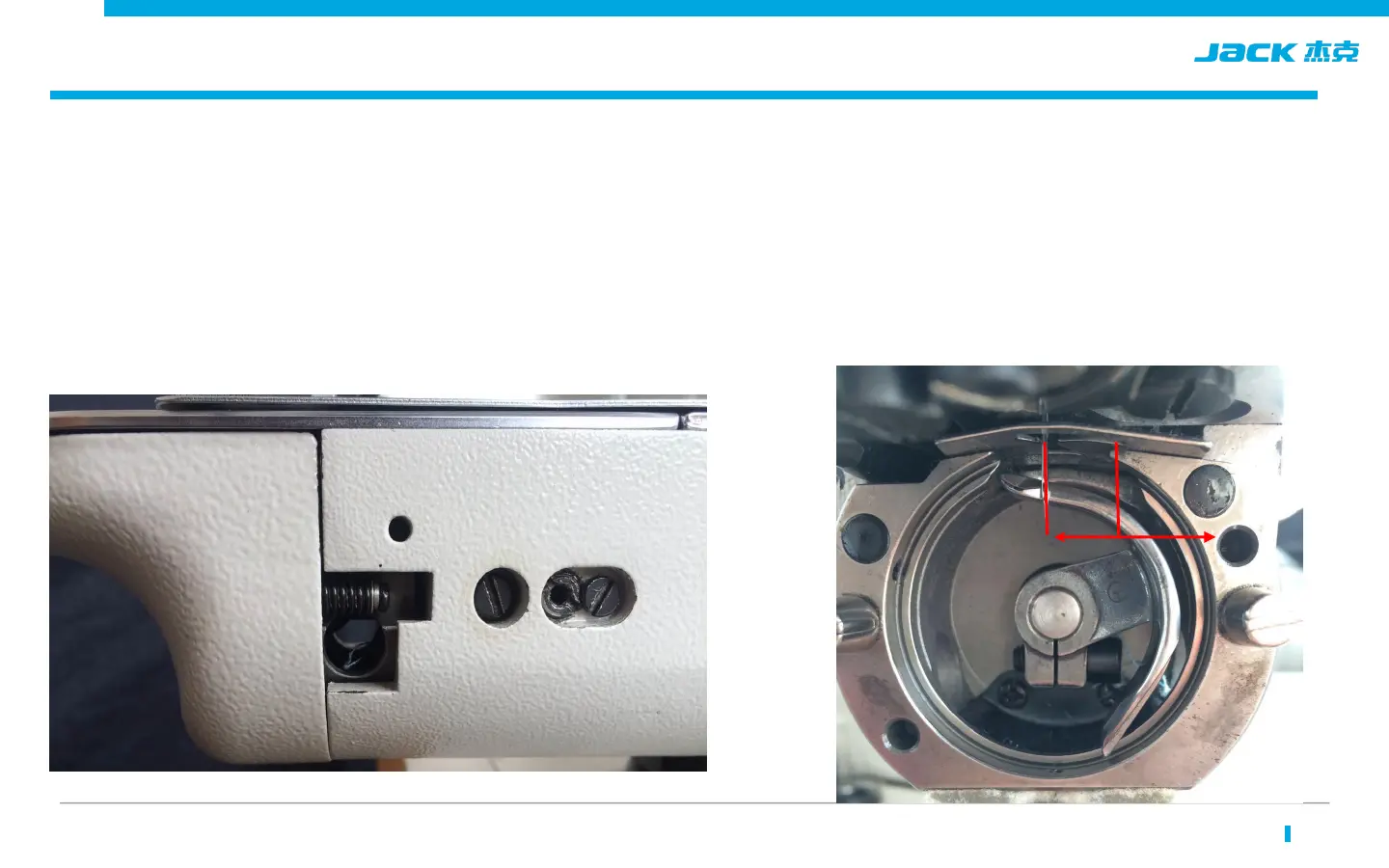

Mechanical adjustment-Shuttle bed adjustment
A B C
When loosening the screw A, the shuttle bed can turn left and right to
reach the position shown in the lower right figure, tighten the screw A.
When loosening the screw B, adjust the eccentric screw C, the shuttle bed
can move back and forth, after adjust it, tighten the screw B
Note: When you want to dismantle the shuttle bed, you must loose screw A
and screw B, remove the eccentric screw C.
7.5mm
