Jack JK-1900BSK - Principal Axis Motor Installation Guide

CONFIDENTIAL PROJECT NAME | date 项目名称 | 日期 35
Mechanical adjustment-Principal axis motor

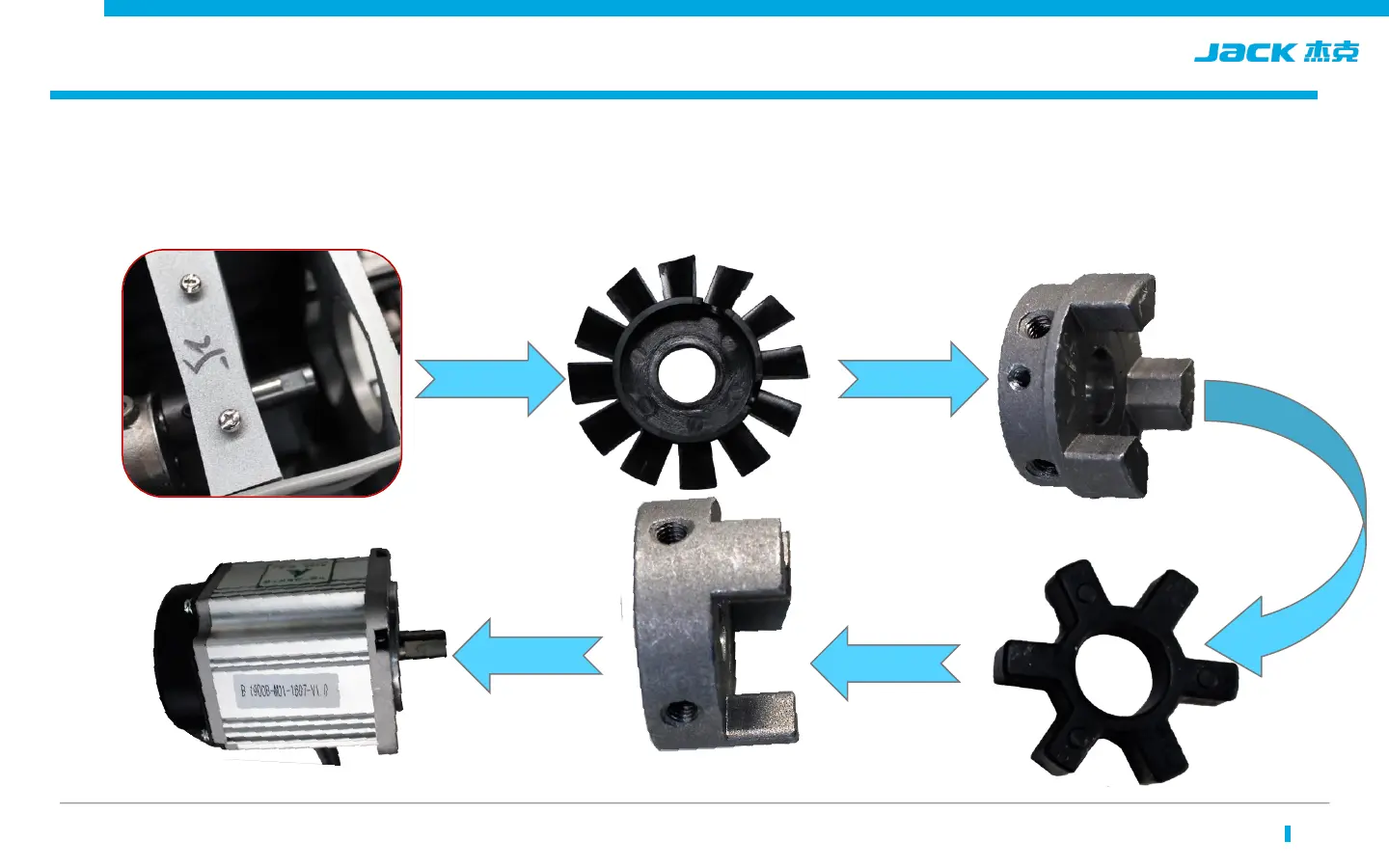

Installation requirements:forward hand wheel, the first screw of coupler 1 aims to
the principal axis plane, the first screw of coupler 2 aims to the motor plane.
principal axis plane
motor plane
coupler 1
coupler 2
