ENGINE
4241262-Rev B 3-17
3

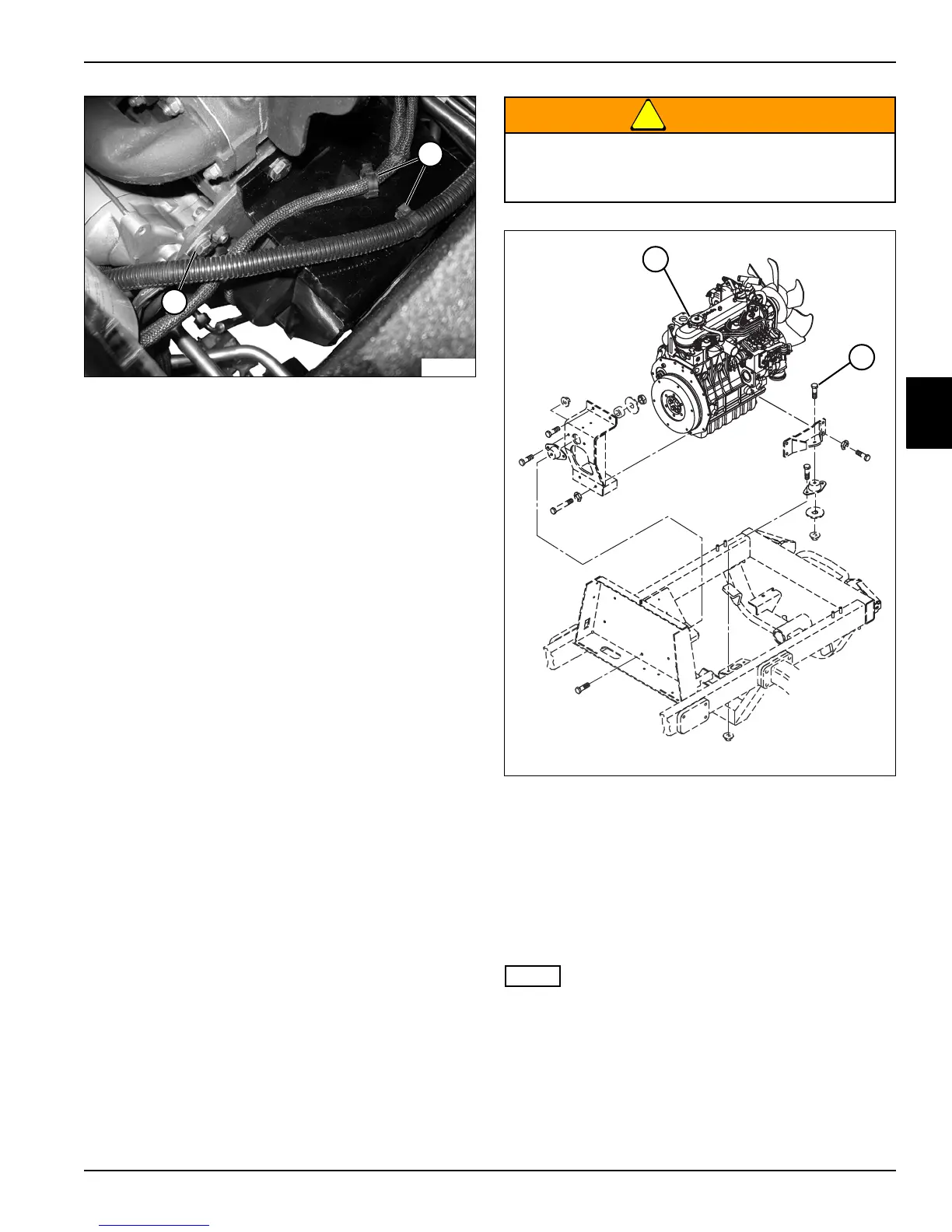

Figure 3-35
23. Unlatch wire harness clamps (24).
24. Remove bolt (25).
!
WARNING
Figure 3-36
25. Using an engine hoist, support engine (26) and
remove three engine mounting bolts (27).
26. Check for any connected wires and components.
27. Carefully remove engine from machine.
28. Place engine on a suitable stand or workbench that
will support full weight in a safe manner while
preventing damage to engine.
NOTE
If engine is being replaced, some components must be
removed and installed on new engine. See “Parts and
Maintenance Manual” for additional information and
illustrations.
TN3617
25
24
Prevent personal injury. Use a properly rated
lifting device. Always be sure the load is
balanced before lifting.
TN3633
26
27
