OPERATION 5
GB-17
5.9 TOWING / TRAILERING _____________________________________________________
If the tractor experiences problems and must be shut down
and removed from the area, it should be loaded onto a trailer
for transport. If a trailer is not available, the unit can be
towed slowly short distances.
Use care when loading and unloading tractor. Fasten tractor
to trailer to prevent tractor from rolling or shifting during
transport.
Long Distance Trailering / Transport. If the tractor is to
be trailered on the highway, before strapping to trailer,
close fuel shut off valve and inflate tires maximum
pressure listed on side of tire. Reduce tire pressure to
normal after removing from trailer. [See 5.9]
Before towing, open tow valve. The tow valve permits
moving the tractor without starting the engine and prevents
possible damage to hydraulic components.
The tow valve (A) is located on the hydraulic drive pump
beneath the operators seat. Remove cover from floor in front
of operator’s seat. To open valve, use a wrench or insert a
pin or small screw driver into the small hole in the valve
stem. Turn the valve counterclockwise one full turn.
Before towing make sure cutting units are raised. If they
cannot be raised, remove them from the tractor.
Close valve completely and replace cover after towing.
NOTE: Do not exceed 2 MPH (3.2 KPH) while towing. Long
distance towing is not recommended
.

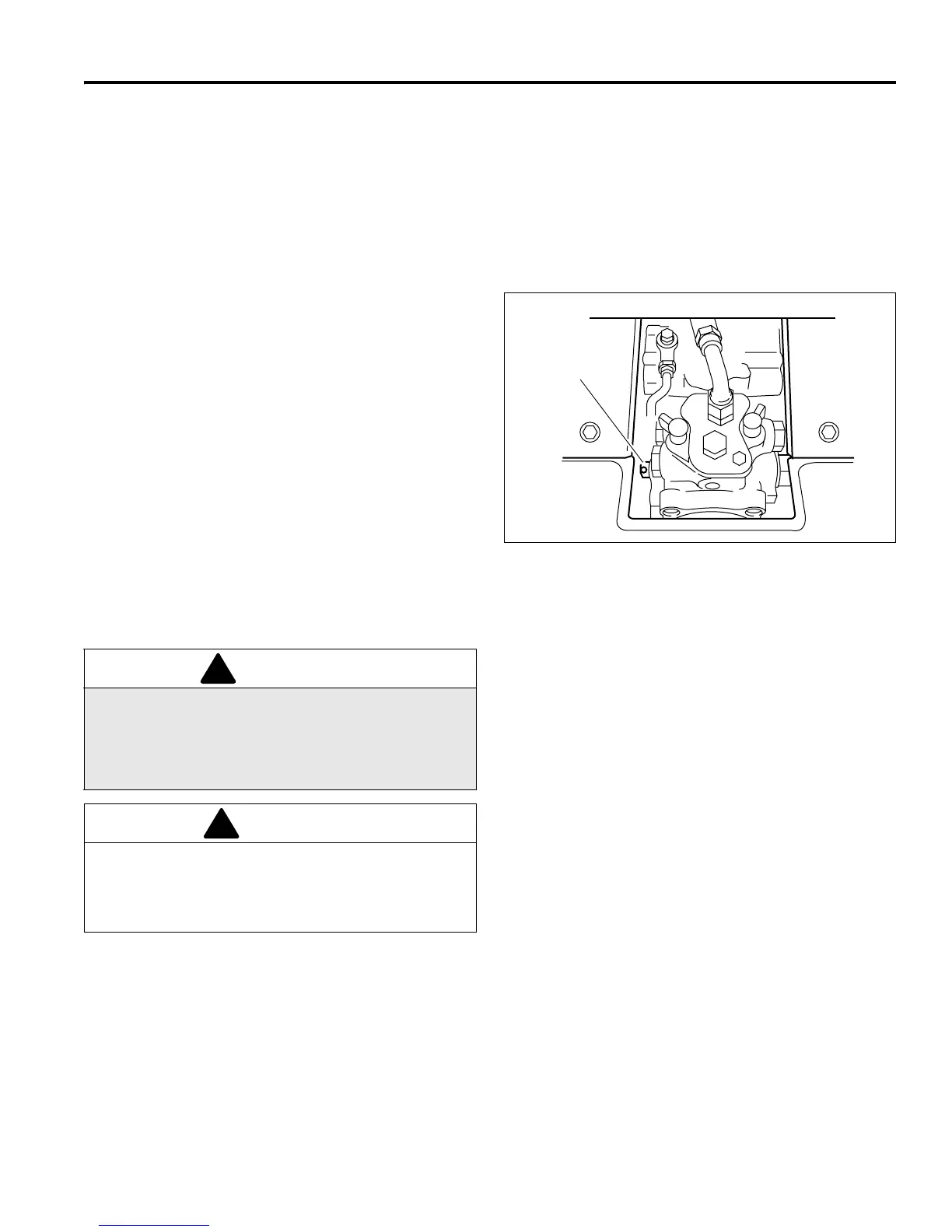

Figure 5B
5.10 HILLSIDE OPERATION _____________________________________________________
The tractor has been designed for good traction and stability
under normal mowing conditions; however, use caution
when operating on slopes, especially when the grass is wet.
Wet grass reduces traction and steering control.
1. Always mow with the engine at full throttle but reduce
forward speed to maintain the proper cutting frequency.
2. Activate traction control (R) as required to improve
weight distribution between decks and tractor. [See
4.3]
3. If the tractor tends to slide or the tires begin to “mark”
the turf, angle tractor into a less steep grade until
traction is regained or tire marking stops.
4. If tractor continues to slide or mark the turf, the grade
is too steep for safe operation. Do not make another
attempt to climb, back down slowly.
5. When descending a steep slope, always lower
implements to the ground to reduce the risk of tractor
overturning.
Correct tire pressure is essential for maximum traction.
Front ......................... 16 psi (111 kPa)
Rear.......................... 12 psi (86 kPa)
A
LF006
WARNING
To minimize the possibility of overturning, the safest
method for operating on hills and terraces is to travel up
and down the face of the slope (vertically), not across the
face (horizontally). Avoid unnecessary turns, travel at
reduced speeds, and stay alert for hidden hazards.
CAUTION
A Rollover Protection System (ROPS), designed for this
tractor, is available as an optional accessory.
Install a
ROPS before operating on slopes greater than 14°.
Do not operate this tractor on slopes greater than 20°.
!
!
